C3 Coated Suspension Profiles - Corrosion Resistant Profiles
Verified by manufacturer 6 months ago
Coated profiles designed to meet the requirements for the suspension and support of exterior grade boards in external and soffit/ wall applications.
Application
Coated profiles designed to meet the requirements for the suspension and support of exterior grade boards in external and soffit/ wall applications including:

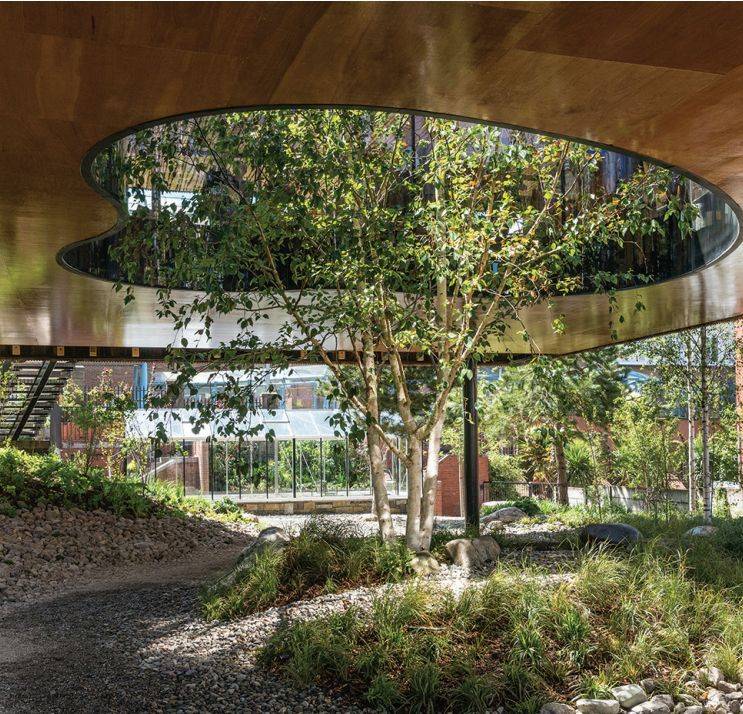

- External soffits;
- Car parks;

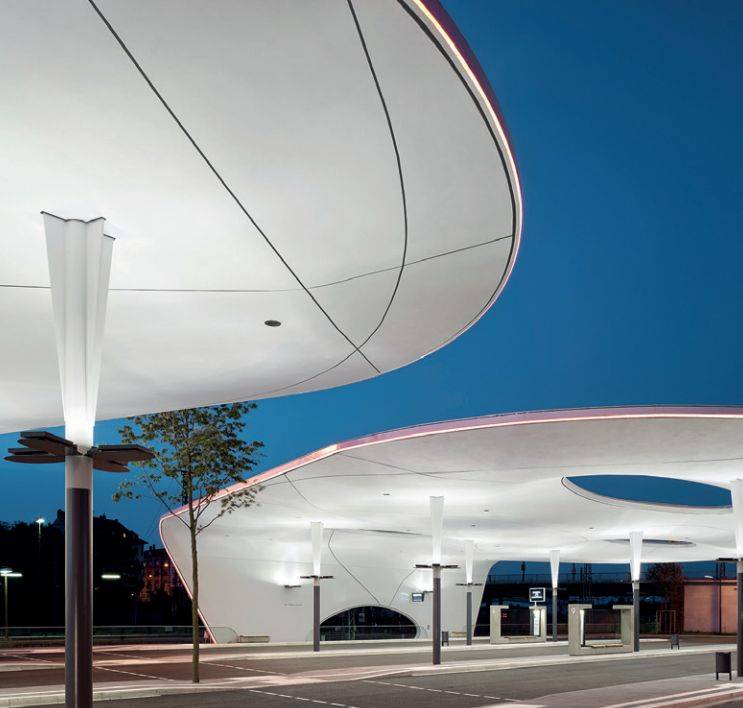

- Canopies;
- Chemical processing plants;
- Cattle sheds.
Description
Coated profiles designed to meet the requirements for the suspension and support of exterior grade boards in external and soffit/ wall applications.
C3 coating meets with the requirements of ISO 12944 and provides a high level of anti-corrosion resistance.
The suspension grid is manufactured to meet the requirements of wind load (suction and pressure).
Protektor engineers can calculate the required centres for the suspension hangers and main supporting profiles ensuring a good level of support is provided.
Note: In coastal areas the manufacturer recommends the C5 range of profiles for a higher level of corrosion resistance.
General information
Color | Silver Black Guidance for specification option: Requires optional spray paint. |
Finish | Galvanized |
Material | Carbon steel |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K10/220 Proprietary suspended ceiling system K10/50 Suspended ceiling system on metal framing |
Specification data - Carbon steel dry lining frames
Material | Galvanized steel. |
Component types | |
Ceilings and soffits | CD ceiling profiles, 60 x 0.6 mm.U perimeter profiles.J perimeter profiles.L angle perimeter profiles, 50 x 50 x 0.7 mm.Top hat profiles, 10 x 15.5 x 48 mm.Top hat profiles, 10 x 15 x 80 mm.Manufacturer guidanceSee also Connectors and Accessories below. Consult manufacturer for further details. |
Ceiling hangers | C3 direct fix hangers, 125 mm.C3 direct fix hangers, 200 mm.C3 CD Nonius hangers.C3 click fix profile clips.C3 CD direct fix adjustable hangers.C3 hangers, 190 mm.Manufacturer guidanceSee also Accessories below. Consult manufacturer for further details. |
Connectors | C3 profile connectors. C3 cross connectors. C3 safety cross connectors. |
Fixings | C5 jack point pan head screws, 13 x 4.2 mm. C5 pan head screws, 13 x 4.2 mm. C5 self-drilling screws, 19 x 6.3 mm. C3 ceiling dowels with nail head, 44 x 6 mm. |
Accessories | C3 adjusting clamps. C3 adjusting strips for Nonius hangers. Guidance for specification option: Insert requirements. Available in various lengths (100–1000 mm in 100 mm increments; 1.2, 1.4, 1.7, 2.0 and 2.5 m). C3 spray paint, black. |
