Redland 49 Tile
Verified by manufacturer 7 months ago

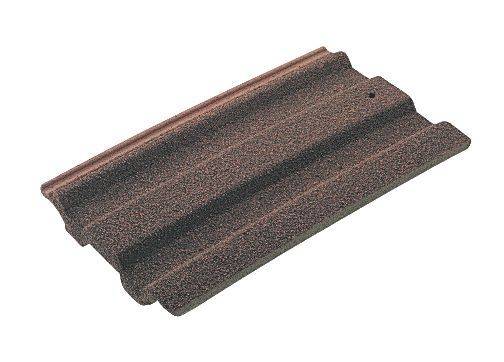

Concrete interlocking cambered roof tile.
Application
Suitable for use in both new build and re-roofing projects.
Description
Compact and visually appealing concrete interlocking cambered roof tile.
Features and benefits:
- Easy to handle and install.
- Available in a range of attractive colours.
- Offers both speed and economy as a roofing material.
- Unique camber adds both strength and aesthetic appeal.
- Smaller format for lighter unit weight and easier handling.
General information
Color | Red Grey Brown |
Finish | Smooth Grained |
Material | Concrete |
Shape | Rectangle |
Length | 382 mm |
Width | 226 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | H65/115 Concrete roof tiling H65/120 Concrete roof tiling with counterbattens H65/5 Roof tiling |
Product range |
Specification data - Concrete interlocking tiles
Profile | Cambered. |
Head lock | Required. |
Size | 382 x 226 mm. |
Batten size | 38 x 25 mm. Guidance for specification option: For up to 450 mm support spacing. 50 x 25 mm. Guidance for specification option: For up to 600 mm support spacing. |
Cover | 200 mm. Manufacturer guidanceLinear cover. |
Roof covering | 16.3 tiles per m². Manufacturer guidanceCovering capacity. |
Weight | 46 kg/m². Manufacturer guidanceAt maximum gauge. |
