50 Double Roman Tile
Verified by manufacturer 7 months ago

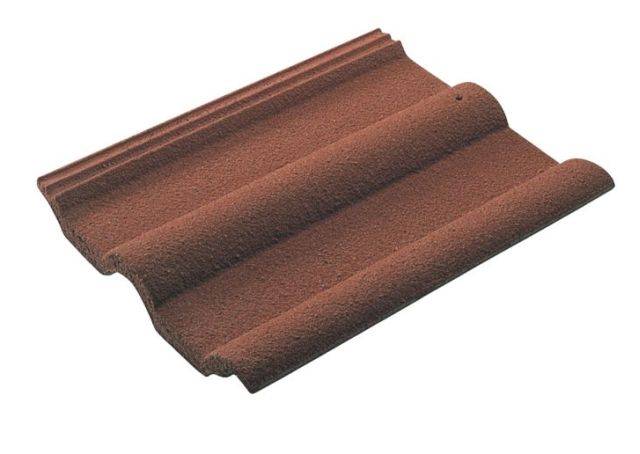

Concrete double Roman interlocking roof tile.
Application
Suitable for use in both new build and re-roofing projects.
Description
Concrete double Roman interlocking tile featuring gentle rolls and subtle pans.
Features and benefits:
- Recreates look of classic clay Roman roof.
- Ten colours to provide match with every regional roofing style.
- Compatible with a wide range of fittings and accessories.
General information
Color | Red Grey Brown Orange |
Finish | Coated |
Material | Concrete |
Shape | Other |
Length | 418 mm |
Width | 330 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | H65/115 Concrete roof tiling H65/5 Roof tiling |
Product range |
Specification data - Concrete interlocking tiles
Profile | Gentle rolls and subtle pans. |
Head lock | Required. |
Size | 418 x 330 mm. |
Batten size | 38 x 25 mm. Guidance for specification option: For up to 450 mm support spacing. 50 x 25 mm. Guidance for specification option: For up to 600 mm support spacing. |
Cover | 300 mm. Manufacturer guidanceLinear cover. |
Roof covering | 9.7 tiles/m². Manufacturer guidanceCovering capacity. |
Weight | 41 kg/m². Manufacturer guidanceAt maximum gauge. |
