Mockbond Mini Stonewold Slate Tile
Verified by manufacturer 7 months ago

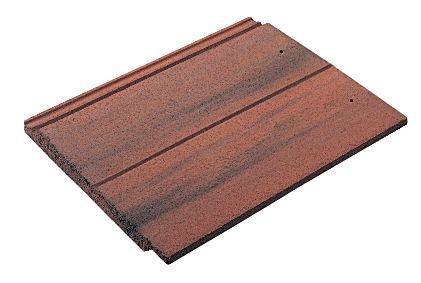

Interlocking concrete slate effect roof tile with dummy bond line.
Application
Suitable for use in both new build and re-roofing projects.
Description
Interlocking concrete slate effect tile with a dummy bond line down the centre, creating the impression of two small units and suggesting the appearance of a small format slate when laid.
Features and benefits:
- Small tile roof appearance, but with speed and ease of larger format installation.
- Can be laid at pitches as low as 17.5°.
- Available in five colours.
- Economical to buy and install.
General information
Color | Red Grey Brown Orange |
Material | Concrete |
Shape | Rectangle |
Length | 418 mm |
Width | 334 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | H65/115 Concrete roof tiling H65/5 Roof tiling |
Product range |
Specification data - Concrete interlocking tiles
Head lock | Required. |
Colour | Slate Grey (30).Terracotta (34).Charcoal Grey (77).Farmhouse Red (39).Breckland Brown (52). |
Size | 418 x 334 mm. |
Batten size | 38 x 25 mm. Guidance for specification option: For up to 450 mm support spacing. 50 x 25 mm. Guidance for specification option: For up to 600 mm support spacing. |
Head-lap | 75 mm. Guidance for specification option: Minimum, ≥22.5°. 100 mm. Guidance for specification option: Minimum, 17.5–22.4°. 125 mm. Guidance for specification option: Maximum. |
Pitch | 17.5°. Guidance for specification option: Minimum, 100 mm head lap. 22.5°. Guidance for specification option: Minimum, 75 mm head lap. 90°. Guidance for specification option: Maximum. |
Gauge | 293 mm. Guidance for specification option: Minimum. 318 mm. Guidance for specification option: Maximum, <22.5°. 343 mm. Guidance for specification option: Maximum, ≥22.5°. |
Cover | 294 mm. Manufacturer guidanceLinear cover. |
Roof covering | 9.9 tiles/m². Manufacturer guidanceCovering capacity. |
Weight | 50 kg/m². Manufacturer guidanceAt maximum gauge. |
