Application

Suitable for use in both new build and re-roofing projects.

Description

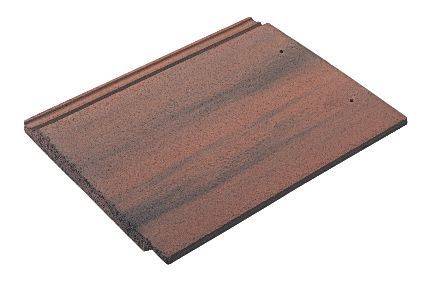

Interlocking flat concrete slate effect roof tile that can be laid at pitches as low as 17.5°.


Features and benefits:

  • Low pitch capability.
  • Range of eight natural colours.
  • Quick, simple installation reduces laid costs.

General information

Color

Red

Grey

Black

Brown

Orange

Finish

Natural

Material

Concrete

Shape

Rectangle

Length

418 mm

Width

334 mm

Warranty description

60 year

Uniclass

Pr_25_93_72_17 Concrete interlocking tilesPrimary

CAWS

H65/115 Concrete roof tiling

H65/5 Roof tiling

Product range

Tiles / Slate Range

Specification data - Concrete interlocking tiles

Profile

Flat.

Head lock

Required.

Colour

Black (63).

Slate Grey (30).

Terracotta (34).

Tudor Brown (36).

Charcoal Grey (77).

Farmhouse Red (39).

Breckland Brown (52).

Size

418 x 334 mm.

Batten size

38 x 25 mm.

Guidance for specification option:

For up to 450 mm support spacing.

50 x 25 mm.

Guidance for specification option:

For up to 600 mm support spacing.

Head-lap

75 mm.

Guidance for specification option:

Minimum, ≥22.5°.

100 mm.

Guidance for specification option:

Minimum, 17.5–22.4°.

125 mm.

Guidance for specification option:

Maximum.

Pitch

17.5°.

Guidance for specification option:

Minimum, 100 mm head lap.

22.5°.

Guidance for specification option:

Minimum, 75 mm head lap.

90°.

Guidance for specification option:

Maximum.

Gauge

293 mm.

Guidance for specification option:

Minimum.

318 mm.

Guidance for specification option:

Maximum, <22.5°.

343 mm.

Guidance for specification option:

Maximum, ≥22.5°.

Cover

294 mm.

Manufacturer guidance

Linear cover.

Roof covering

9.9 tiles/m².

Manufacturer guidance

Covering capacity.

Weight

50 kg/m².

Manufacturer guidance

At maximum gauge.
