Recessed Convertible Paper Towel Dispenser/ Waste Receptacle B-3944

Application

Recess mounted.

Description

Unit includes convertible folded paper towel module and 12 gallon waste receptacle.


Features and benefits:

  • Satin-finish stainless steel.
  • Seamless bevelled flange.
  • Dispenses 600 C-fold or 800 multi-fold towels.
  • Removable waste receptacle locked into cabinet.
  • Receptacle is 8″ (205 mm) deep with capacity of 12-gal (45.5 L); extends 4-1/8″ (105 mm) from wall.
  • Rough Wall Opening: 16″ W, 54-3/4″ H, 4″ min. depth (405 x 1390 x 100 mm).
  • Field conversion made easy without replacing existing cabinets in wall.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Length

1422 mm

Bin protrudes 105mm from finished wall level. Min 100mm recess depth.

Width

437 mm

Height

205 mm

WarrantyDescription

Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.)

-

Uniclass

Pr_40_70_22_62 Paper towel dispensersPrimary
Pr_40_70_22_61 Paper roll dispensers

CAWS

N13/59 Paper towel dispensers

N13/442 Paper towel dispensers

Specification data - Paper towel dispensers Enhanced data

Form

Recess wall-mounted.

Towels

-

Towel type

Folded.

Materials

-

Body

Stainless steel.

Finish and colour

Satin polished.

Operation

Pull-out.

Integral accessories

Waste bin.

3974-250 Convertible automatic, universal roll paper towel dispenser module equipped with LED light.

3961-50 Touch-free, pull towel dispenser module.

3944-130 TowelMate®.

3944-134 LinerMate®.

368-60 Interchangeable receptacle.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

1

Download now from NBS National BIM Library

Literature

Washroom Accessories

Washroom Accessories

Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

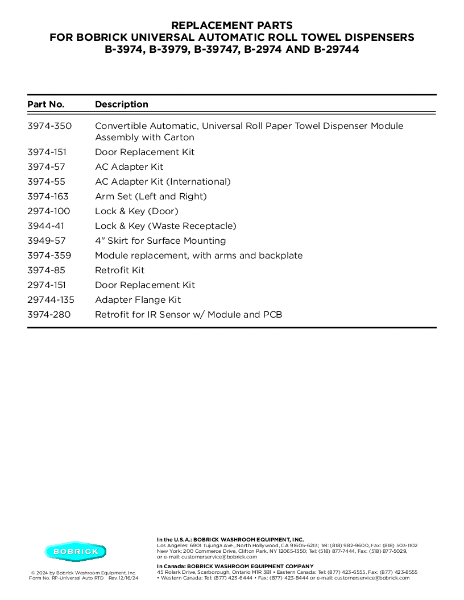

Replacement Parts for Bobrick Universal Automatic Roll Towel Dispensers - B-3974, B-39747, B-3979, B-2974 and B-29744

Replacement Parts for Bobrick Universal Automatic Roll Towel Dispensers - B-3974, B-39747, B-3979, B-2974 and B-29744

Instructions for replacing 3944-52, folded towel dispenser module - Bobrick models B-3942, B-3944, 3947, and 813061 convertible paper towel dispenser and waste receptacle

Instructions for replacing 3944-52, folded towel dispenser module - Bobrick models B-3942, B-3944, 3947, and 813061 convertible paper towel dispenser and waste receptacle

ClassicSeries® Recessed Convertible Paper Towel Dispenser and Waste Receptacle - B-3944

ClassicSeries® Recessed Convertible Paper Towel Dispenser and Waste Receptacle - B-3944

TB-88 Advisory Bulletin

TB-88 Advisory Bulletin
