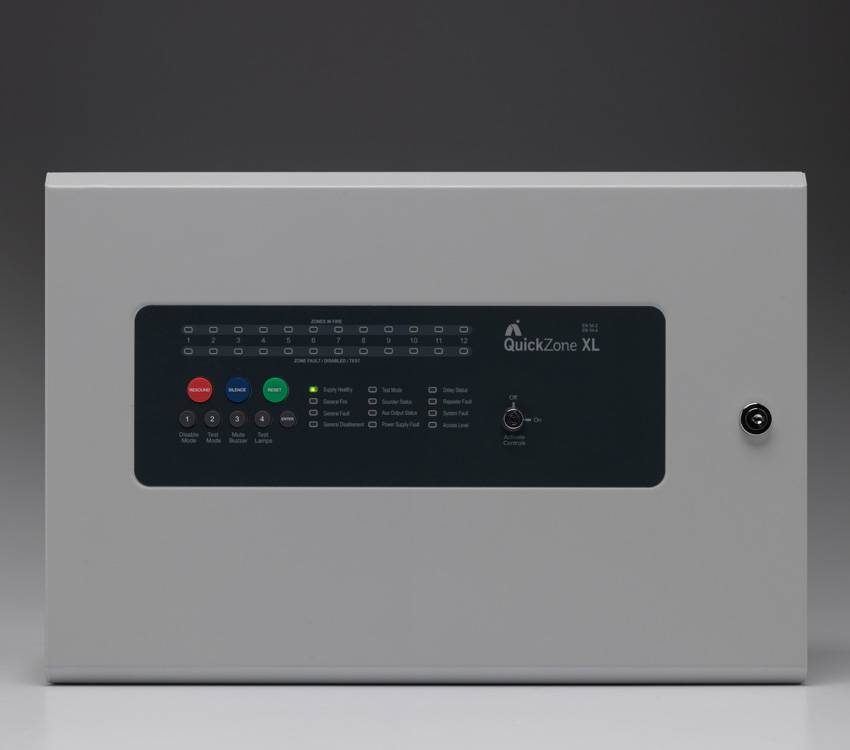

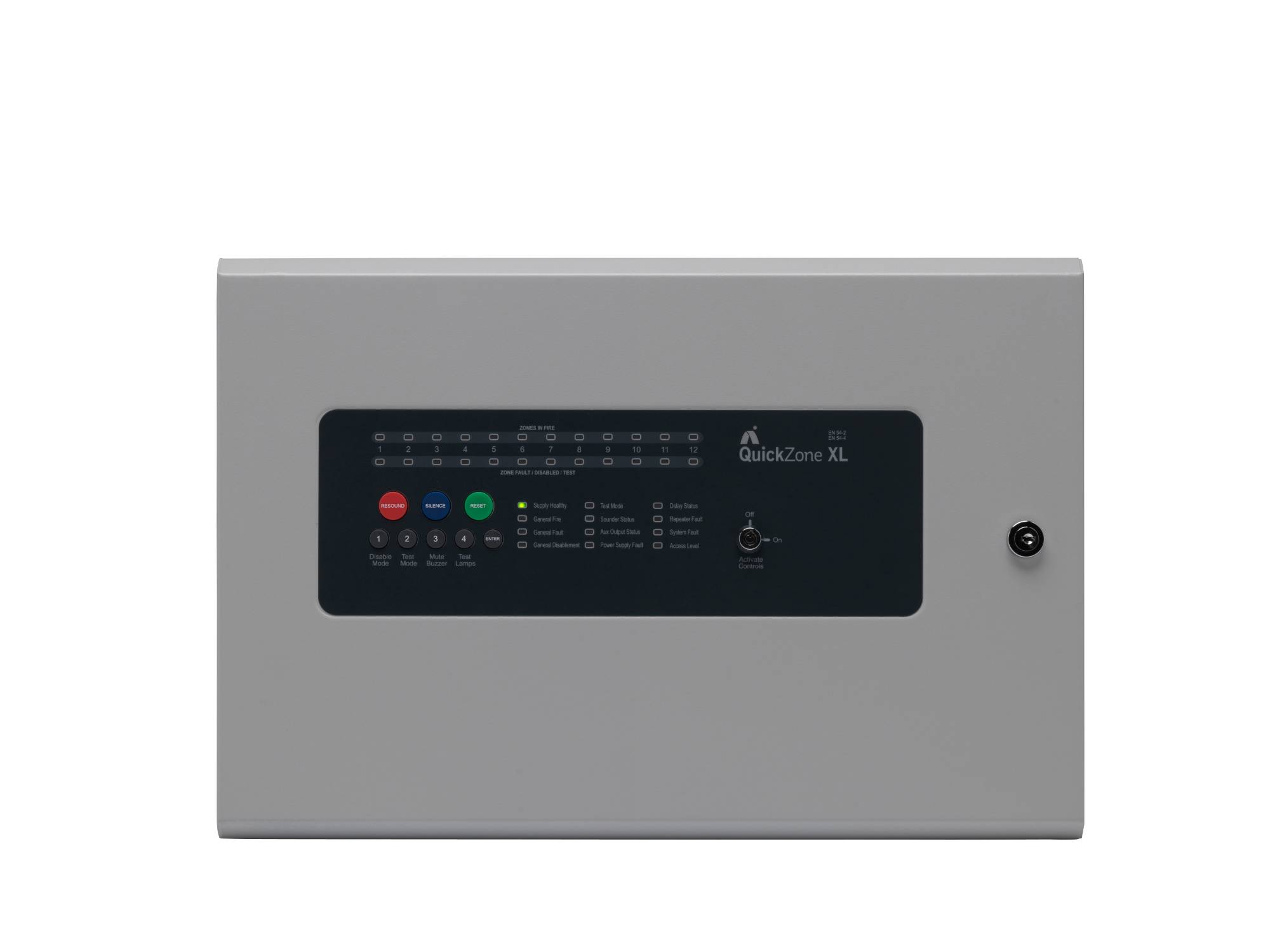

QuickZoneXL - Conventional Fire Panel

Verified by manufacturer 5 months ago

Advanced

Four to twelve zone conventional fire panel.

Jump to:
BOS
+44 (0)345 894 7000 Website

Application

Suitable for office and workplace environments.

Description

QuickZone XL is up to 12 zone conventional/ twin wire (sav-wire) control panel with integral power supply and space for standby batteries.


Features and benefits:

  • 4-12 zones.
  • DIL selectable conventional or twin wire (sav-wire) set up per zone.
  • Integral 2.5 ampere switch mode PSU.
  • Up to 7 Ah batteries.
  • Class change and alert programmable inputs.
  • Programmable relays and outputs.
  • Up to 6 monitored sounder circuits.
  • Integral detector removal monitoring.
  • Test mode (with and without sounders).
  • Alarm load of 2.4 amperes shared across all sounder outputs.
  • Modular expansion zone cards available.
  • 2 additional sounder circuits with expansion card.
  • False alarm management.
  • Zonal programming.
  • Programmable outputs.
  • Programmable output delays.
  • Supports up to 8 QuickZone XL repeater panels.
  • Approved to EN54-2 and 4.
  • 3 year warranty.

General information

Color

Grey

Guidance for specification option:

RAL 7035.

Finish

Powder-coated

Material

Steel

Shape

Square

Length

460 mm

Width

85 mm

Height

310 mm

Warranty description

Three year

Uniclass

Pr_75_80_30_29 Fire alarm panelsPrimary

CAWS

S92/420 Alarm devices

S92/420 Alarm devices

Specification data - Fire alarm panels

Standard

To BS EN 54-2.

Standby power supply

-

Capacity

28 V, 400 mA.

Enclosure

-

Material

Steel.

Finish

Powder coated.

Colour

Grey.

Guidance for specification option:

RAL 7035.

Mounting

Wall mounted.

RatedCurrent

1.2 A.

NominalFrequencyRange

47-63 Hz.

RatedVoltage

200-240 V.

System installation

4-12 zones.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

Recyclability

Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit

Revit 2017

2

Literature

QuickZone Brochure

QuickZone Brochure

Consultant Specification - EN54 Parts 2 and 4 Fire System

Consultant Specification - EN54 Parts 2 and 4 Fire System

Case studies

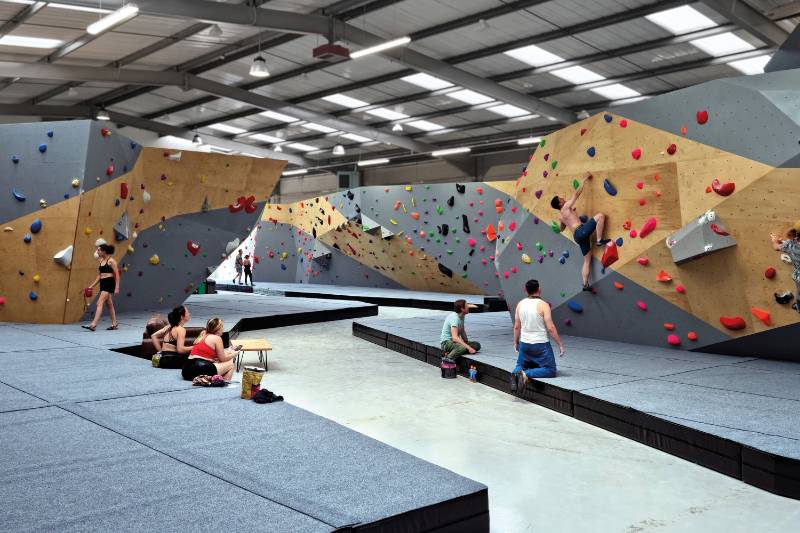

Blockhaus Climbing, Manchester
