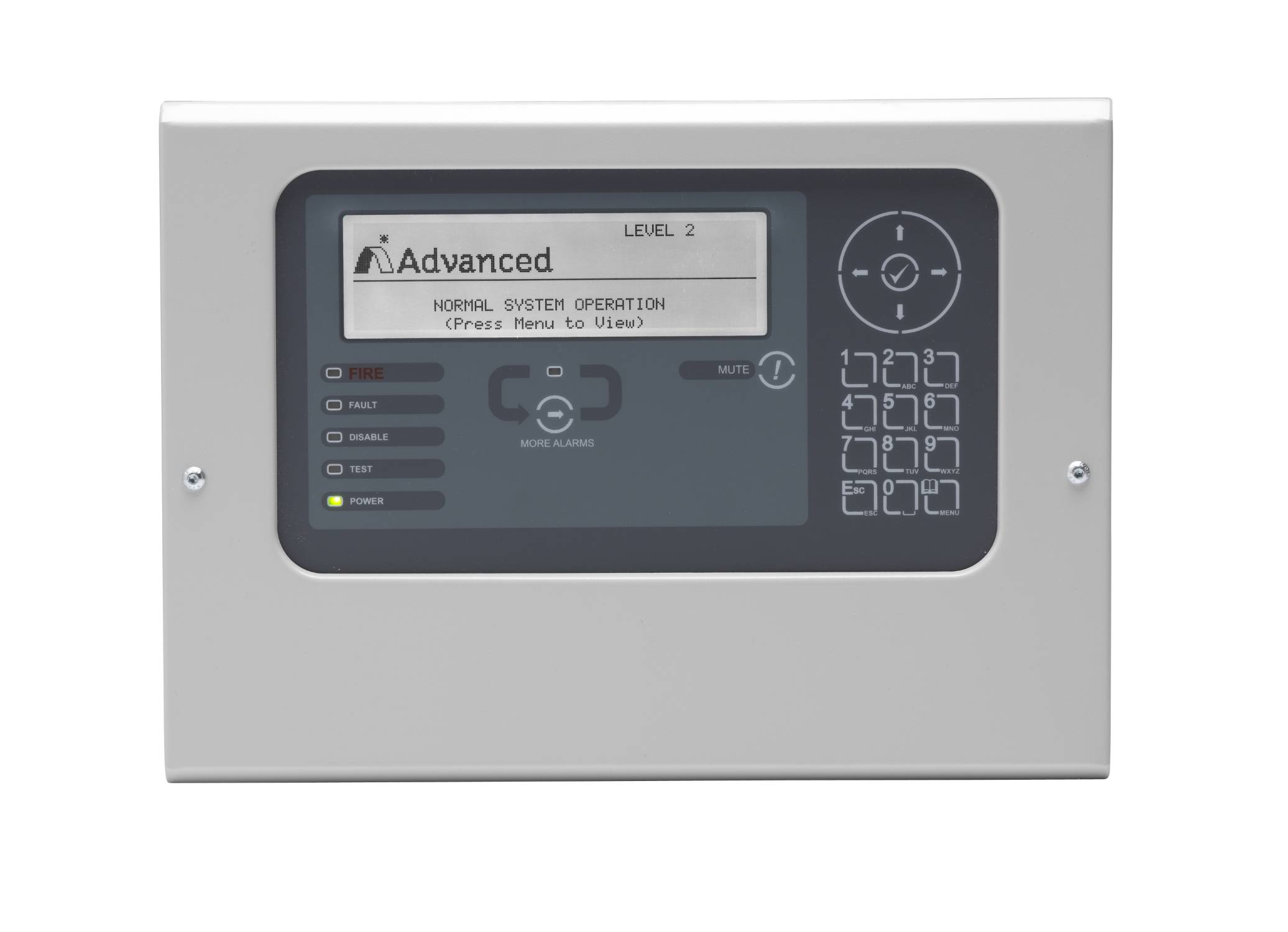

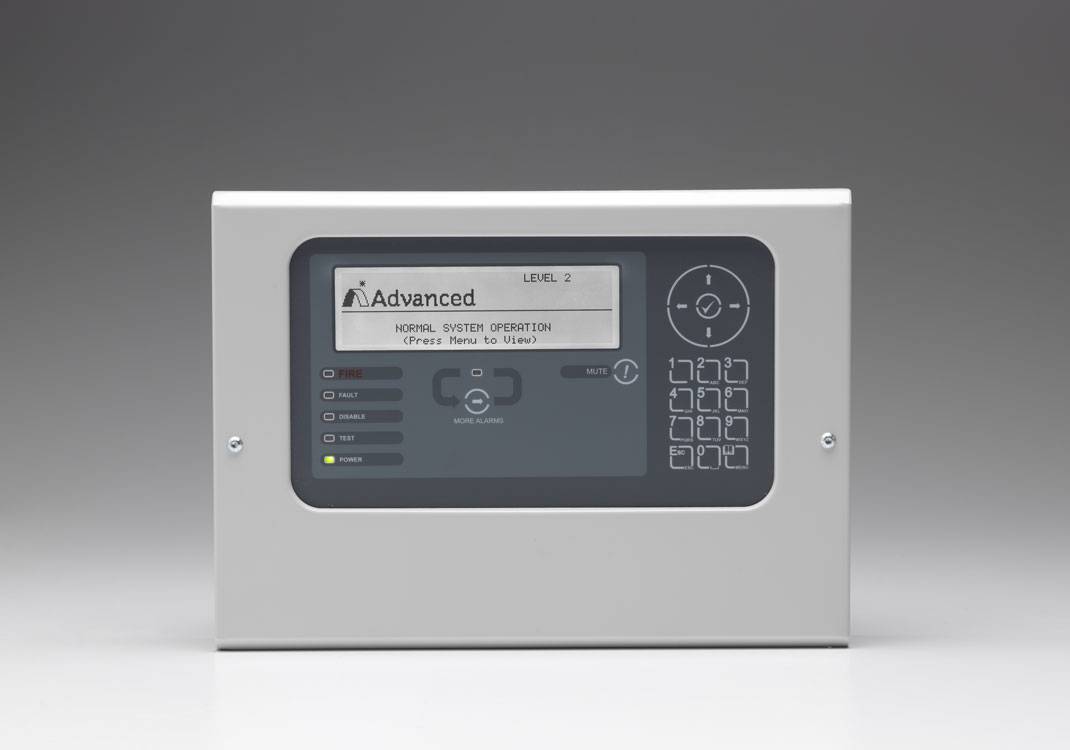

MxPro 5 Remote Control Terminal

Verified by manufacturer 5 months ago

Advanced

Remote control terminal conforming to BS EN 54-2, 4 and 13 standard.

Jump to:
BOS
+44 (0)345 894 7000 Website

Application

Suitable for use in residential, commercial and industrial environments.

Description

Fire detection and alarm control and indicating equipment (CIE).


Features and benefits:

  • Three types available including;
  • Remote display terminal.
  • Remote control terminal with additional mute, silence, reset and resound keys.
  • Remote control terminal with additional LED status indication, four programmable push buttons, mute, silence, reset, resound, lamp test and evacuate keys.
  • Optional level 2 access enable key switch.
  • Integrated standard or fault-tolerant network interface with screen termination point.
  • Programmable display for up to 2,000 zones along with sector based controls.

General information

Color

Grey

Guidance for specification option:

RAL 7035.

Finish

Powder-coated

Material

Steel

Shape

Square

Length

42 mm

Width

300 mm

Height

218 mm

Warranty description

Three year

Uniclass

Pr_75_80_30_29 Fire alarm panelsPrimary

CAWS

S92/420 Alarm devices

S92/420 Alarm devices

Specification data - Fire alarm panels

Standard

To BS EN 54.

Guidance for specification option:

(Parts 2, 4 and 13.)

Third-party certification

Certified by FM approvals to BS EN 54 parts 2 and 4.

Standby power supply

-

Standard

To BS EN 54-4, 13.

Main display

White backlit 240 x 64 graphical LCD.

Zone indication

LED status indicators.

Printer

Output to separate printer.

Indications

Fault signals from points.

Controls

To BS EN 54-2.

Outputs

Output to fire alarm devices.

Input device

Alphanumeric keypad.

Enclosure

-

Material

Steel.

Finish

Powder coated.

Colour

Grey.

Guidance for specification option:

RAL 7035.

Mounting

Guidance for specification option:

Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount.

NumberOfPoles

4.

PowerFactor

0.

RatedCurrent

0.15 A.

RatedVoltage

24 V.

ExpectedLife

18 years.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

Recyclability

Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

2

IFC
-

2

Literature

Consultant Specification - EN54 Part 2, 4 and 13 Fire System

Consultant Specification - EN54 Part 2, 4 and 13 Fire System

MxPro 5 Brochure

MxPro 5 Brochure

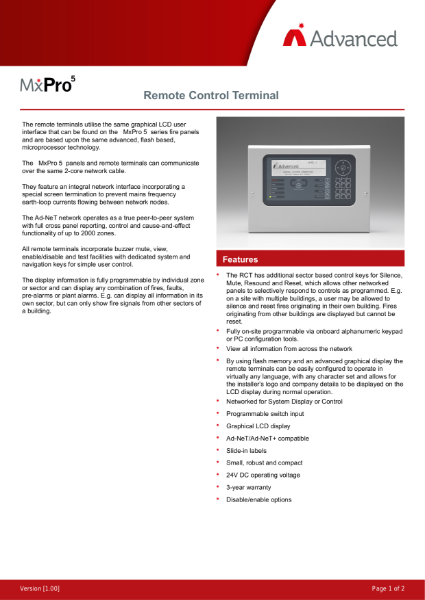

Datasheet - MxPro 5 Remote Control Terminal

Datasheet - MxPro 5 Remote Control Terminal

Case studies

Alnmouth Friary, Northumberland

Alnmouth Friary, Northumberland

HMS Belfast, London

HMS Belfast, London

Natural History Museum, London

Natural History Museum, London

Wexham Park Hospital, Berkshire

Wexham Park Hospital, Berkshire

Royal Sussex County Hospital, Brighton

Royal Sussex County Hospital, Brighton

Similar products from Advanced

AxisGo Single Loop Fire Alarm Control Panel - Single-loop fire alarm system

AxisGo Single Loop Fire Alarm Control Panel - Single-loop fire alarm system

AxisGo+ Single Loop Fire Alarm Control Panel - Single-loop fire alarm system

AxisGo+ Single Loop Fire Alarm Control Panel - Single-loop fire alarm system

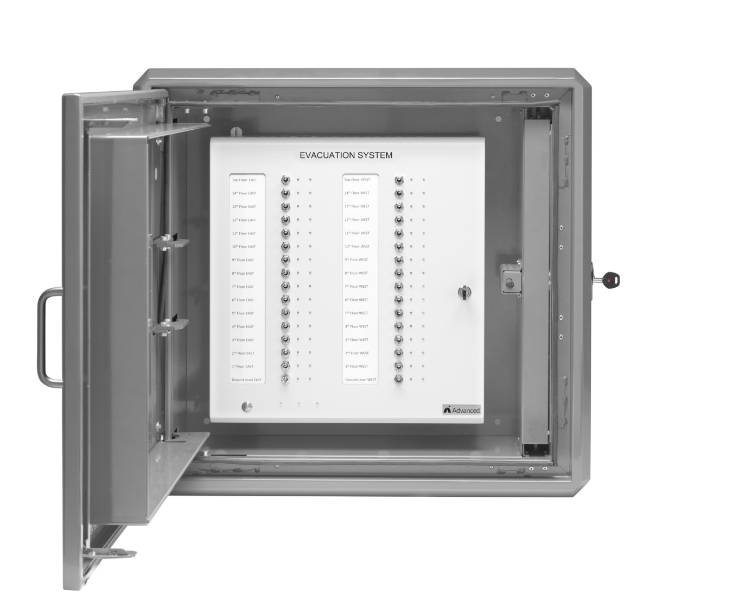

EvacGo Evacuation Alert Control Panel

EvacGo Evacuation Alert Control Panel

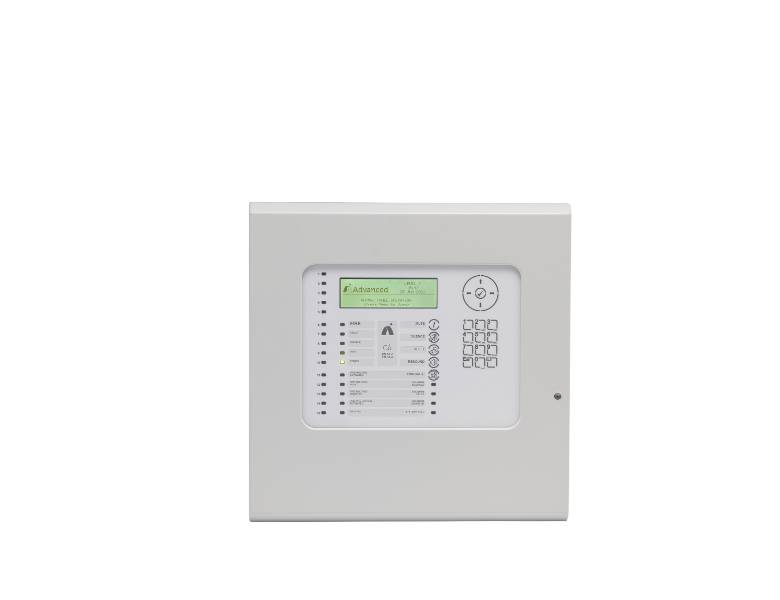

Go Single Loop Fire Alarm Control Panel
