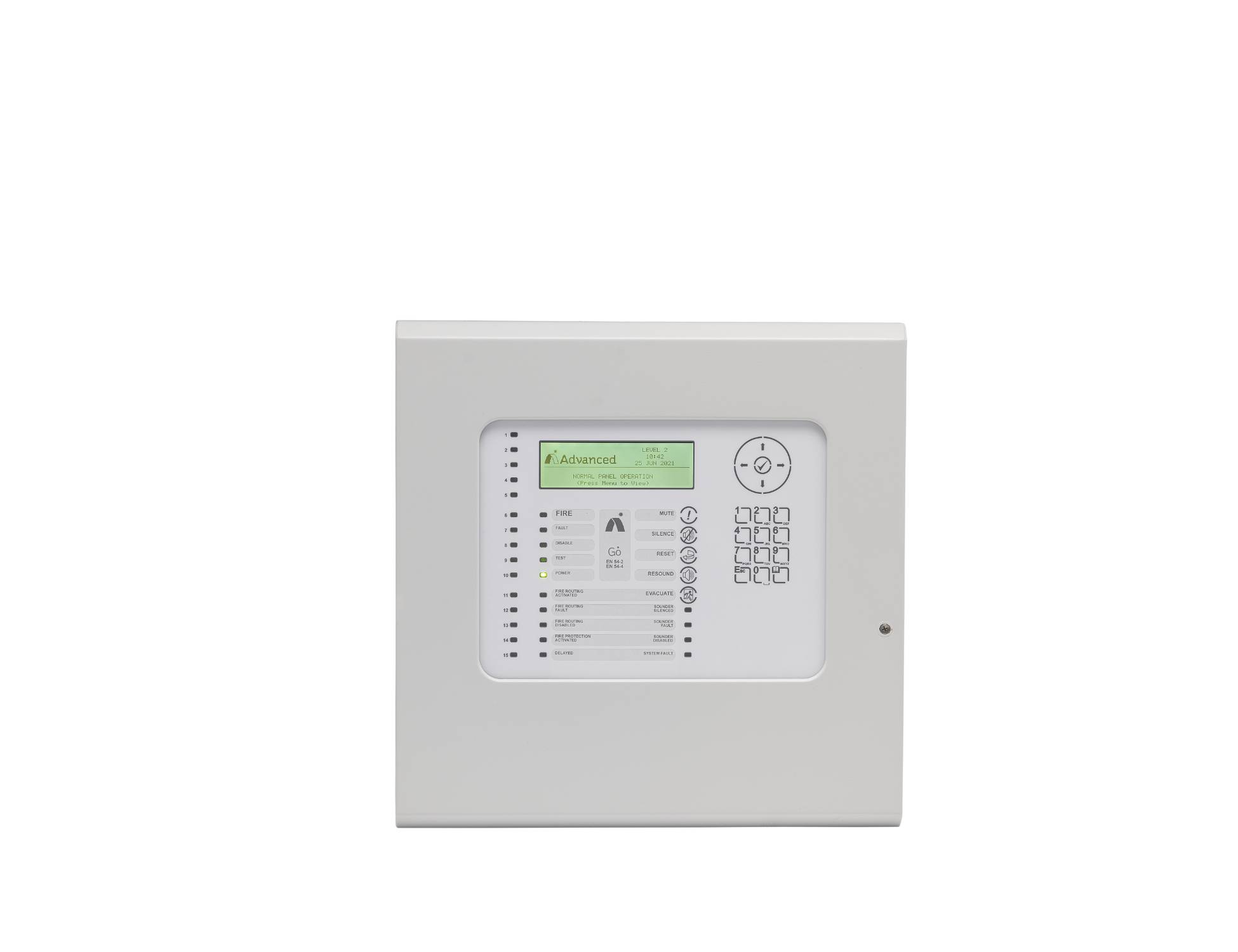

Go+ Single Loop Fire Alarm Control Panel

Verified by manufacturer 5 months ago

Advanced

User friendly, non-networked single-loop fire alarm system with capable of accommodating up to 126 Apollo devices or 127 Hochiki devices.

Jump to:
BOS
+44 (0)345 894 7000 Website

Application

Suitable for commercial, residential and industrial environments.

Description

The new Go series is an evolution for non-networked single-loop fire alarm systems. Its innovative design includes several improvements and upgrades to critical safety features, while retaining all the benefits and user-friendly operation of an Advanced fire alarm control panel.


Features and benefits:

  • Multiprotocol support, Apollo (Discovery, XP95), Hochiki ESP and Argus Vega.
  • Graphical LCD user interface, LED indicators and push buttons.
  • Installer-friendly auto-learn, loop detection and on-board scope facility.
  • 500 fire + 5000 general event logging, with advanced diagnostic precision to aid installation and fault-finding.
  • Integral 15 zone LEDs ensures compliance with BS5839, with 35 additional software indication zones.
  • Supported by the latest generation PC Configuration Tool on MS Office 365, with updated look and feel and easy drag-and-drop device selection.
  • Two on-board sounder outputs, three on-board relay outputs optional 3 monitored input/ outputs for fire/ fault routing (with P-Bus adaptor and routing card) for full EN54 compliance when connected to an alarm receiving centre.
  • Dedicated USB type B port for direct PC connection.
  • Ethernet port for Cloud connection via AdvancedLive, to provide remote notification and panel management.
  • Innovative 'no hinge' removable door and hangable chassis for easier installation.
  • Compliant with EN54-13 (2005 and 2017) for optimal fire system performance and complete peace of mind.


Maximum addresses:

  • Apollo Hochiki Argus Vega.
  • Go 50 50 50.
  • Go+ 126 127 240.
  • Go Go1 Go1 - 1-Lp Fire Alarm Panel (Ap/Ho) Grey Apollo/Hochiki Protocols 50 addresses.
  • Go1V Go1V - 1-Lp Fire Alarm Panel - Grey (AV) Argus Vega Protocol 50 addresses.
  • Go+ Go1+ Go1+ - 1-Lp Fire Alarm Panel (Ap/Ho) Grey Apollo/Hochiki Protocols 126/127 addresses.
  • Go1V+ Go1V+ - 1-Lp Fire Alarm Panel - Grey (AV) Argus Vega Protocol 240 addresses.

General information

Color

Grey

Material

Steel

Shape

Rectangle

Length

345 mm

Width

345 mm

Height

87 mm

Uniclass

Pr_75_80_30_29 Fire alarm panelsPrimary
Pr_75_80_30_30 Fire alarm sounders

CAWS

S92/420 Alarm devices

W53/350 Remote indicators

S92/420 Alarm devices

W53/350 Remote indicators

Specification data - Fire alarm panels

Standard

To BS EN 54-13.

Guidance for specification option:

EN54-2 (1997) +A1:2006, EN54-4 (1997) +A1:2002 +A1:2006, Certified to EN54 Parts 2 and 4 by FM Approvals, BS 5839, EN54-13 (2005 and 2017).

Third-party certification

Certified to EN 54 Parts 2 and 4 by FM Approvals.

Guidance for specification option:

Certified to EN54 Parts 2 and 4 by FM Approvals, BS 5839, EN54-13 (2005 and 2017).

Standby power supply

-

Standard

To BS EN 54-4.

Guidance for specification option:

On-board 24V DC, 1.5 A high efficiency off-line switched mode.

Capacity

24 V, 4 Ah internal (minimum); 24 V, 7 Ah internal (maximum).

Guidance for specification option:

  • Charging Current: 0.35 A (temp compensated).
  • Deep Discharge Cut-off: 19.5 V.
  • Ripple: Up to 1.0V.
  • Maximum Battery: 1.8Ω ± 0.1 Ω.
  • ImaxAandB: 1.15A, 1.5A.

Main display

Backlit 240 x 64 pixel digital display.

Guidance for specification option:

With five LED status indicators.

Zone indication

Individual LED status indicators.

Guidance for specification option:

15 zone LEDs.

Installed capacity

One loop.

Guidance for specification option:

  • Configurable Addresses: 126/127 addresses.
  • Loop Current: 500 mA maximum.
  • Number Of Fire Zones: 50 maximum.
  • Event Log: 5000 Events with diagnostics + 500 fire events.

Monitored sounder circuits (minimum)

Two.

Indications

Fire, fault, disable, test, power, fire routing activated, fire routing fault, fire routing disabled, fire protection activated, delayed, sounder silenced, sounder fault, sounder disabled and system fault.

Guidance for specification option:

Red: fire, fire routing activated, fire protection activated; yellow: disable, fault, test, fire routing fault, fire routing disabled, delayed, sounder silenced, sounder fault, sounder disabled, system fault; green: power.

Controls

Button operated.

Outputs

Three programmable relay outputs.

Guidance for specification option:

Sounder outputs:2 x 1 A, programmable (1 A total).

Relay outputs: 3 x 1 A 30 V, AC/DC (maximum) to 10 mA 5 V (minimum).

Auxiliary output: 24 V DC, 100 mA (with GOP-001 fitted).

Input device

Manual.

Guidance for specification option:

Programmable Inputs: 1 x Key Switch, 1 x monitored.

Enclosure

-

Material

Steel.

Colour

Grey.

Mounting

Wall mounted.

Keys

Mute, silence, reset, resound and evacuate.

Weight

4 k.g.

Application temperature range

-5°C to 40°C.

RelativeHumidity

95%.

Cable entry

14 x 20 mm knockouts at top.

Electrical supply

220-240 V, 50-60 Hz, 1.0 A maximum.

Safety

To BS EN 62368-1, Class 1, Pollution Degree 2, Overvoltage Category II.

Connections

Guidance for specification option:

  • USB: USB type B interface for PC connection.
  • Ethernet: 10-Base-T, 100-Base-T.

RatedVoltage

18-28 V.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

Recyclability

Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

Go Brochure

Go Brochure

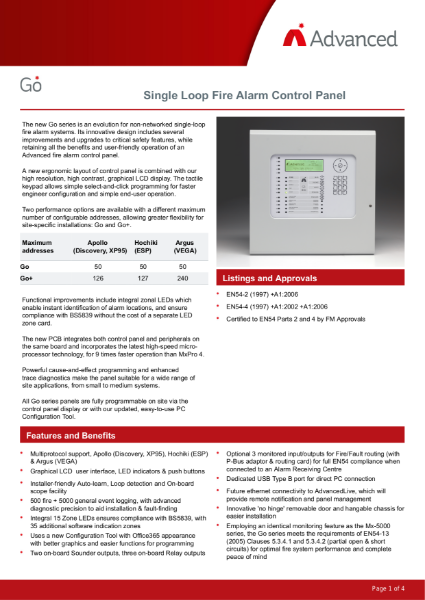

Datasheet - Go Single-loop Fire Alarm Control Panel
