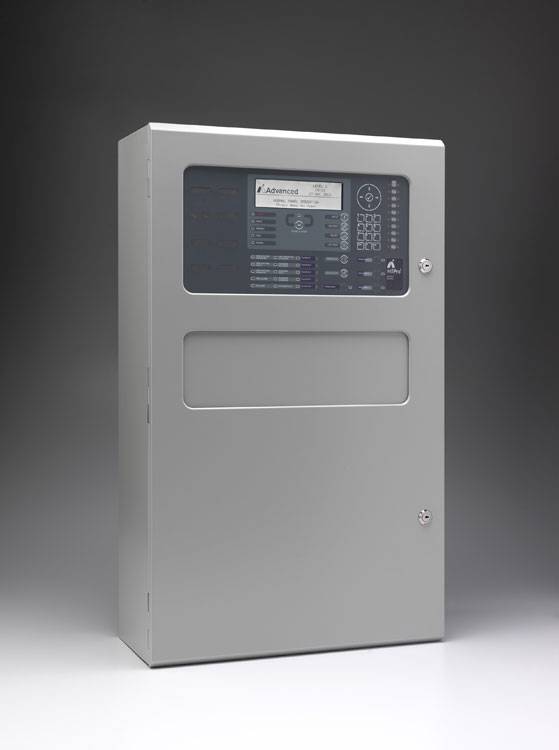

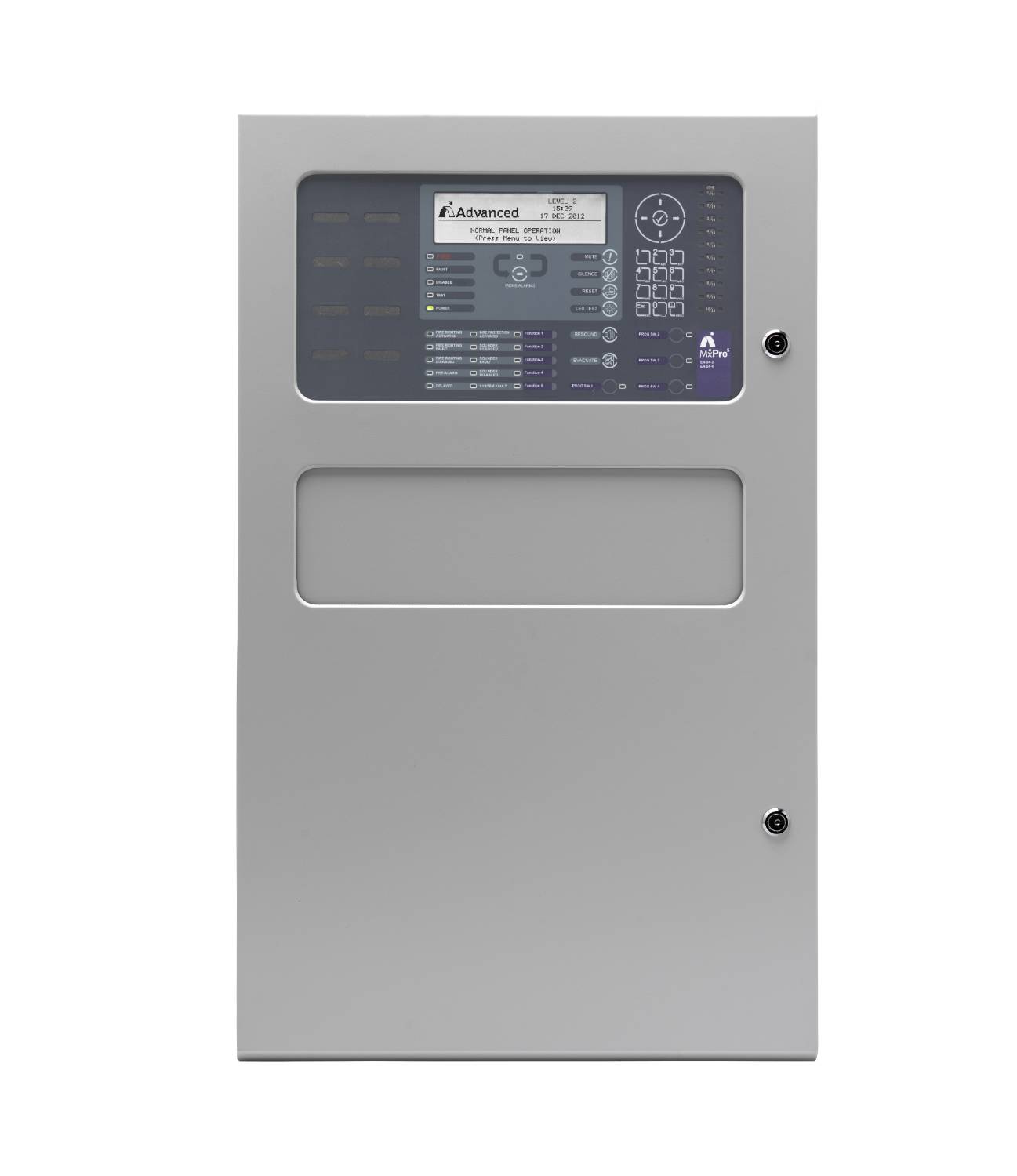

MxPro 5 Fire Alarm Control Panel 2-8 Loop
Verified by manufacturer 3 months ago
Two or eight loop fire alarm control panel with LCD display, conforms to BS EN 54-2, 4 and 13 standard.
Application
Suitable for use in residential, commercial and industrial environments.
Description
Fire detection and alarm control and indicating equipment (CIE).
Features and benefits:
- EN 54 part 2, 4 and 13 approved.
- Certified by FM approvals to EN 54 parts 2 and 4.
- AdvancedLive connectivity (UK and Ireland only)
- Two to eight loops.
- Extended enclosure.
- Maximum 45 Ah internal batteries.
- Up to 200 additional programmable LED’s, 2 x switch cards or mimic.
- Up to 8 programmable key switches or 4 plus printer.
- Plexi-glass door and external battery box option.
- Fully expandable from 2-8 loops via plug-in loop driver boards.
General information
Color | Grey Guidance for specification option: RAL 7035. |
Finish | Powder-coated |
Material | Steel |
Shape | Square |
Length | 190 mm |
Width | 450 mm |
Height | 750 mm |
Warranty description | Three year |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
Specification data - Fire alarm panels
Standard | To BS EN 54.Guidance for specification option: (Parts 2, 4 and 13.) |
Third party certification | Certified by FM approvals to BS EN 54 parts 2 and 4. |
Standby power supply | |
Standard | To BS EN 54-4, 13. |
Capacity | 2x 24 V, 18 Ah; 1 x 24 V, 45 Ah internal and 1 x 24 V, 45 Ah external. |
Main display | White backlit 240 x 64 graphical LCD. |
Zone indication | LED status indicators. |
Installed capacity | Two to eight loops.Guidance for specification option: Fully expandable from 2 - 8 loops via plug-in loop driver boards. |
Printer | Output to separate printer. |
Indications | Fault signals from points. |
Controls | To BS EN 54-2. |
Outputs | Output to fire alarm devices. |
Input device | Alphanumeric keypad. |
Features | Fully expandable from 2-8 loops via plug-in loop driver boards. |
Enclosure | |
Material | Steel. |
Finish | Powder coated. |
Colour | Grey.Guidance for specification option: RAL 7035. |
Mounting | Guidance for specification option: Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount. |
NominalFrequencyRange | 47-63 Hz. |
NumberOfPoles | 30. |
PowerFactor | 0. |
RatedCurrent | 2.8 A. |
RatedVoltage | 200-240 V. |
ExpectedLife | 18 years. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location | |
Recyclability | Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | Revit 2017 | 2 |
