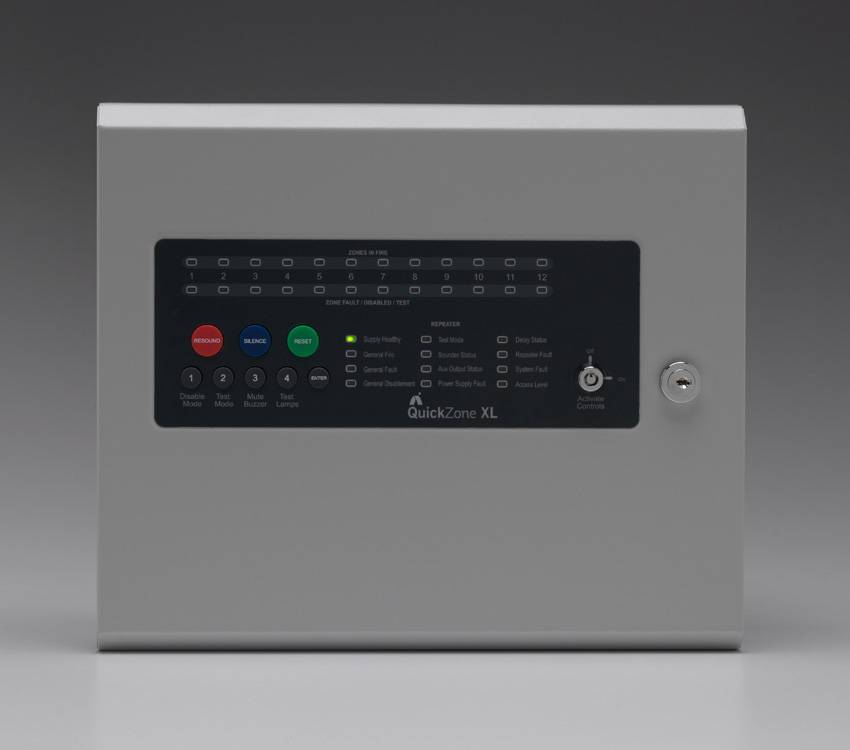

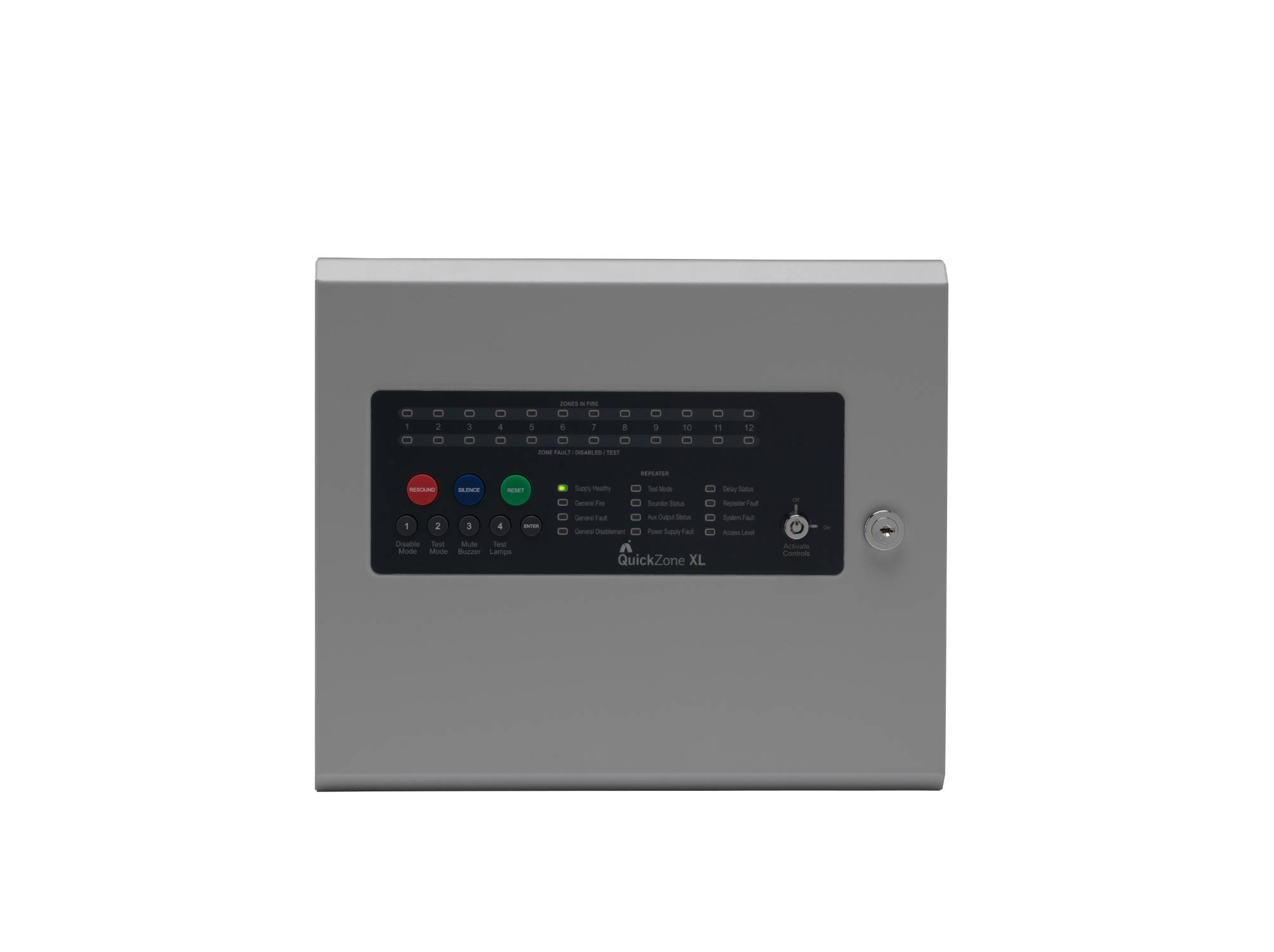

QuickZone Repeater - Repeater Panel

Verified by manufacturer 5 months ago

Advanced

Repeater panel with 12 zonal, fire and fault indications.

Jump to:
BOS
+44 (0)345 894 7000 Website

Application

Suitable for office and workplace environments.

Description

QuickZone XL repeater panel.


Features and benefits:

  • Same easy-to-use controls and indications as panel.
  • Can be fully functional or passive.
  • 12 zonal fault and fire indication.
  • 1.25 Amp integral PSU.
  • Class change and alert input.
  • Test mode and disablement functions.
  • Up to 8 per main panel.
  • Approved to EN54-2 and 4.
  • 3 year warranty.

General information

Color

Grey

Guidance for specification option:

RAL 7035.

Finish

Powder-coated

Material

Steel

Shape

Square

Length

80 mm

Width

308 mm

Height

260 mm

Warranty description

Three year

Uniclass

Pr_75_80_30_29 Fire alarm panelsPrimary

CAWS

S92/420 Alarm devices

S92/420 Alarm devices

Specification data - Fire alarm panels

Standby power supply

-

Capacity

28 V, 400 mA.

Enclosure

-

Material

Steel.

Finish

Powder coated.

Colour

Grey.

Guidance for specification option:

RAL 7035.

Mounting

Wall mounted.

RatedCurrent

1.2 A.

NominalFrequencyRange

47-63 Hz.

RatedVoltage

200-240 V.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

Recyclability

Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

2

IFC
-

2
