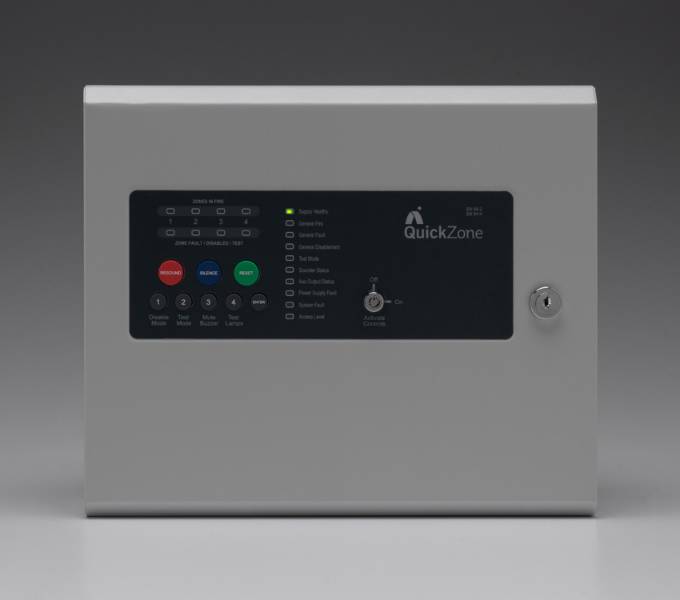

QuickZone - Conventional Fire Panel
Verified by manufacturer 6 months ago
2 or 4 zone conventional twin wire (sav-wire) fire panel.
Application
Suitable for office and workplace environments.
Description
QuickZone is a 2 or 4 zone conventional/ twin wire (sav-wire) control panel with integral power supply and space for standby batteries.
Features and benefits:
- 2 or 4 zones.
- DIL selectable conventional or twin-wire (sav-wire) set up.
- Class change and alert inputs.
- Fire and fault relays.
- 2 monitored sounder circuits.
- 1 Amp switch mode PSU.
- Space for up to 3.2 Ah batteries.
- False alarm management.
- Approved to EN54-2 and 4.
- 3 year warranty.
General information
Color | Grey Guidance for specification option: RAL 7035. |
Finish | Powder-coated |
Material | Steel |
Shape | Square |
Length | 308 mm |
Width | 80 mm |
Height | 360 mm |
Warranty description | Three year |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
SKU Code | QZ-# |
Specification data - Fire alarm panels
Classification data | |
Standard | To BS EN 54-2. |
Standby power supply | |
Capacity | 28 V, 400 mA. |
Enclosure | |
Material | Steel. |
Finish | Powder coated. |
Colour | Grey. Guidance for specification option: RAL 7035. |
Mounting | Wall mounted. |
RatedCurrent | 1 A. |
NominalFrequencyRange | 47-63 Hz. |
RatedVoltage | 200-240 V. |
System installation | 2 zones. 4 zones. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location | |
Recyclability | Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | Revit 2017 | 2 |
