Quartz - Slimline Frameless Double Glazed 54mm Partitioning - Frameless, Glazed, Acoustic
Verified by manufacturer 2 days ago
Minimal slimline double-glazed partition system with high acoustic performance.
Application
Open-plan commercial offices and workplace environments.
Description
Apton's minimal slimline double-glazed system, provides high acoustic performance, combined with sleek profiles and a purpose designed micro door frame, making it the number one choice, for both designers and architects alike.
Features and benefits:
- Double glazing for minimal aesthetic with the benefit of high acoustic resistance.
- Integrated with the Quartz micro door frame and either glass or timber swing doors, the interior designer can achieve the look and performance.
General information
Color | Clear Silver White Black Other |
Finish | Anodized Powder-coated |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Standard | To BS 5234, BS 6180 and BS 6399. Manufacturer guidanceStructural stability. |
Unit size | |
Thickness | 10–13.5 mm. Guidance for specification option: Insert requirements or drawing reference number. Manufacturer guidanceGlass thickness. |
Partition height (nominal) | 3000 mm. Guidance for specification option: Available height up to 3000 mm. Track height 27 mm/ 50 mm. Insert requirements or drawing reference number. |
Width (nominal) | 54 mm. Manufacturer guidanceTrack width. |
Deflection allowance (maximum) | |
Head | +/-25 mm. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Aluminium tracks. |
Solid panels | |
Finish and colour | Manufacturer guidanceAny RAL, insert requirement. |
Joint treatment | |
Type | Dry joint. Guidance for specification option: Corners: 90, 135 and T. |
Glazed panels | |
Type | Double-glazed. |
Integral blinds | Not required. Required. |
Additional features | Not required. Manifestations. Graphics. Aluminium banding. |
Door arrangement | |
Type | Timber Door. Glass Door. MK1 Door. MK2 Door. GDS Door. QuartzGlide Sliding Doors. |
Door frames | Aluminium. |
Door panels | |
Vision panels | Manufacturer guidanceA wide range of vision panels are available upon request for the Timber Doors. Consult manufacturer for details and insert requirements. |
Hardware | Manufacturer guidanceA wide range of ironmongery can be supplied with Quartz. Consult manufacturer and insert requirements or refer to a schedule. |
Configuration | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Glass type | Toughened. Laminated. Switch glass. |
AcousticRating | To BS EN ISO 717, up to 48 dB (Rw). Guidance for specification option: Sound measurements to BS EN ISO 140. |
Colour/ Finish | Polyester powder coat. Satin anodized. Special anodized finish. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

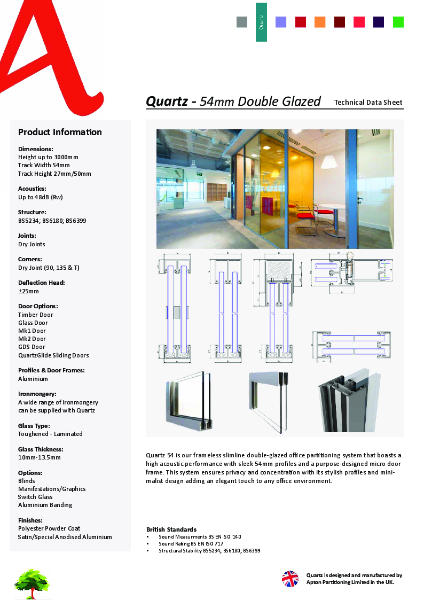

Quartz 54mm Double Glazed Data Sheet
Case studies
Google Bolands Mills with Apton's Glazed Office Partitions, MK2 Double Glazed Acoustic Doors and Accessible Tech Panels
