Astral - Bonded Glazed System
Verified by manufacturer 2 days ago

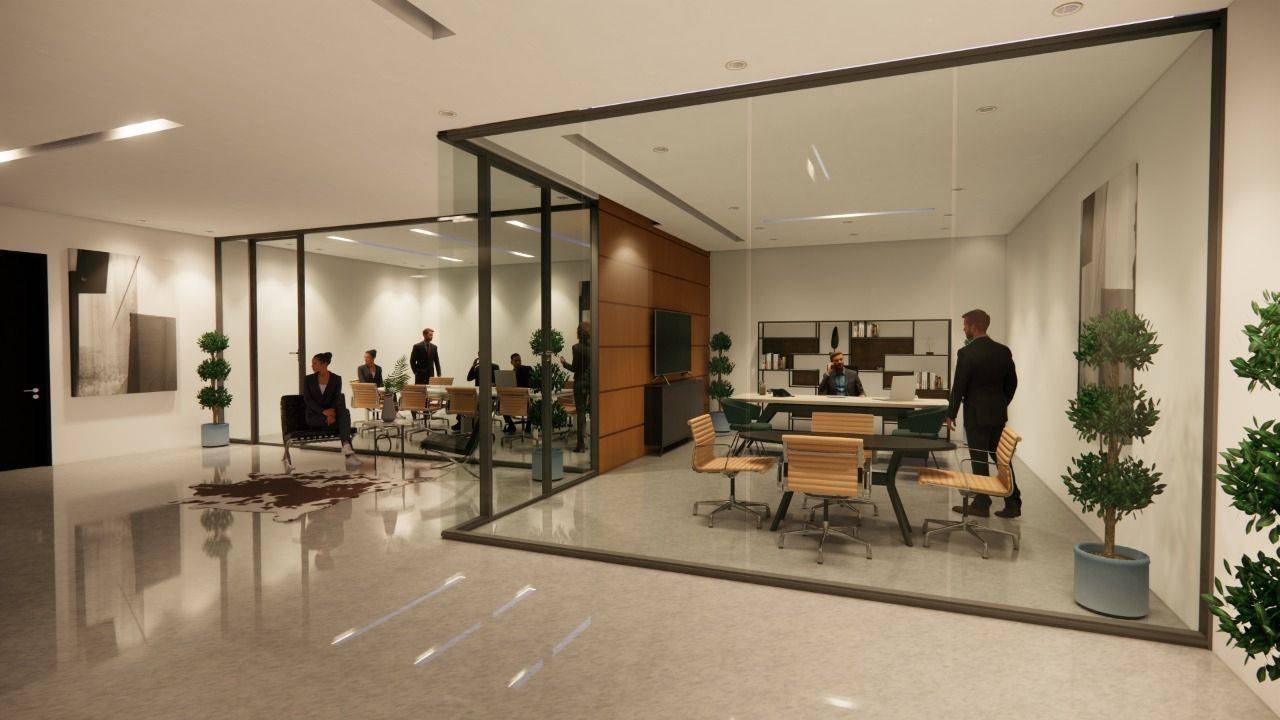

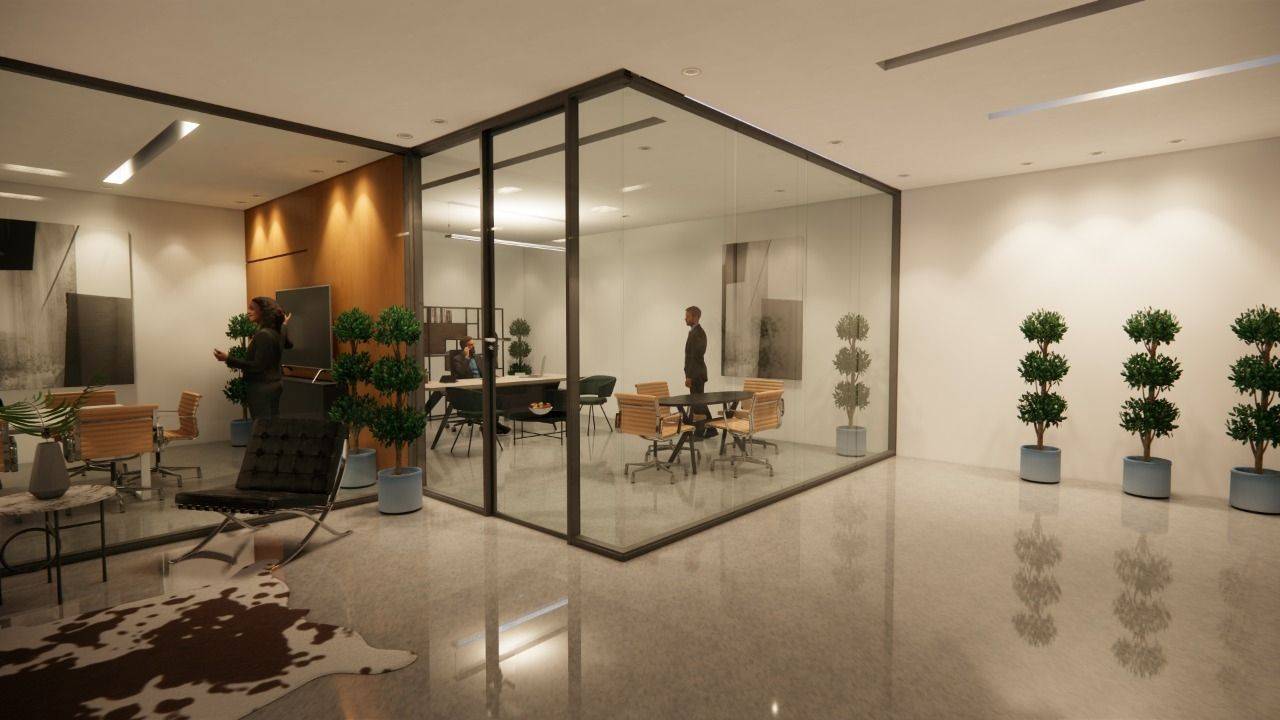

A flush bonded glazed partitioning system that provides a high acoustic resistance and an elegant aesthetic.
Application
Open-plan commercial offices and workplace environments.
Description
A flush bonded glazed partitioning system that provides a high acoustic resistance and an elegant aesthetic. Offered in either single or double-glazed.
General information
Color | Grey Black Other |
Finish | Powder-coated Anodized |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Standard | To BS 5234, BS 6180, BS 6399. Manufacturer guidanceStructural stability. |
Unit size | |
Thickness | 10–10.8 mm. Manufacturer guidanceGlass thickness. |
Partition height (nominal) | 3000 mm. Guidance for specification option: Height up to 3000 mm. Track height 22 mm. Insert requirements or drawing reference number. |
Width (nominal) | 90 mm. Manufacturer guidanceTrack width. |
Deflection allowance (maximum) | |
Head | +/-12.5 mm. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Aluminium tracks. |
Joint treatment | |
Type | Dry joint. |
Glazed panels | |
Type | Double-glazed. |
Integral blinds | Not required. Required. |
Additional features | Not required. Manifestations. Graphics. |
Door arrangement | |
Type | Timber Door. Glass Door. MK1 Door. MK2 Door. GDS Door. QuartzGlide Sliding Doors. |
Door frames | Aluminium. |
Door panels | |
Vision panels | Manufacturer guidanceA wide range of vision panels are available upon request for the Timber Doors. Consult manufacturer for details and insert requirements. |
Hardware | Manufacturer guidanceA wide range of ironmongery can be supplied with Astral. Consult manufacturer and insert requirements or refer to a schedule. |
Configuration | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Glass type | Toughened. Laminated. Switch glass. |
AcousticRating | To BS EN ISO 717, up to 45 dB (Rw). Guidance for specification option: Sound measurements to BS EN ISO 140. |
Colour/ Finish | Polyester powder coat. Satin anodized. Special anodized finish. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
Literature
Astral Data Sheet
