Quartz - Frameless Single Glazed Partition Panels - Frameless, Acoustic, Glass Partition
Verified by manufacturer 22 days ago
Apton Quartz Single Glazed (10–13.5 mm)
Apton Quartz Single Glazed (10–13.5 mm)
EPD
Certificate type
Single-glazed glass partition panel system.
Application
Open-plan commercial offices and workplace environments.
Description
Single-glazed glass partition panel system.
Features and benefits:
- The perfect choice, when maximum natural light and an aesthetically pleasing design are essential.
- The profile is 27 mm, 32 mm or 100 mm wide, and 27 mm or 50 mm high.
- Can be incorporated with any Apton demountable solid system.
- This is the ideal system to create privacy and at the same time, allow as much natural light into your office space as possible.
- A number of deflection details are available.
- Single glazing offers minimal aesthetic with the benefits of high acoustic resistance.
- Quartz frameless glazing system is both stylish and simple. It is mullion free, with minimal tracks at head and abutments.
- Quartz enables a visually frameless optical with high levels of performance.
General information
Color | Clear Silver Other |
Finish | Anodized Satin Powder-coated |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K30/130 Relocatable partition system K30/110 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Standard | To BS 5234, BS 6180 and BS 6399. Manufacturer guidanceStructural stability. |
Unit size | |
Thickness | 10–13.5 mm. Guidance for specification option: Insert requirements or drawing reference number. Manufacturer guidance(Glazing thickness): |
Partition height (nominal) | 4200 mm. Guidance for specification option: Height up to 4200 mm. Track height: 27 mm/ 50 mm. Insert requirements or drawing reference number. |
Width (nominal) | 27 mm. 32 mm. 100 mm. Manufacturer guidanceTrack width. |
Deflection allowance (maximum) | |
Head | +/-12.5 mm. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Aluminium. |
Solid panels | |
Finish and colour | Manufacturer guidanceAny RAL colour, insert requirements. |
Joint treatment | |
Type | Dry joint. Guidance for specification option: Corners: 90, 135 and T. |
Glazed panels | |
Type | Single-glazed. |
Integral blinds | Not required. Required. |
Additional features | Not required. Manifestations. Graphics. Aluminium banding. |
Door arrangement | |
Type | Timber Door. Glass Door. MK1 Door. MK2 Door. GDS Door. QuartzGlide Sliding Door. |
Door frames | Aluminium. |
Door panels | |
Vision panels | Manufacturer guidanceA wide range of vision panels are available upon request for the Timber Doors. Consult manufacturer for details and insert requirements. |
Hardware | Manufacturer guidanceA wide range of ironmongery can be supplied with Quartz. Consult manufacturer and insert requirements or refer to a schedule. |
Configuration | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Glass type | Toughened. Laminated. Switch glass. |
AcousticRating | To BS EN ISO 717, up to 41 dB (Rw). Guidance for specification option: Sound measurements to BS EN ISO 140. |
Colour/ Finish | Polyester powder coat. Satin anodized. Special anodized finish. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
EPD
Environmental Product Declaration
Literature

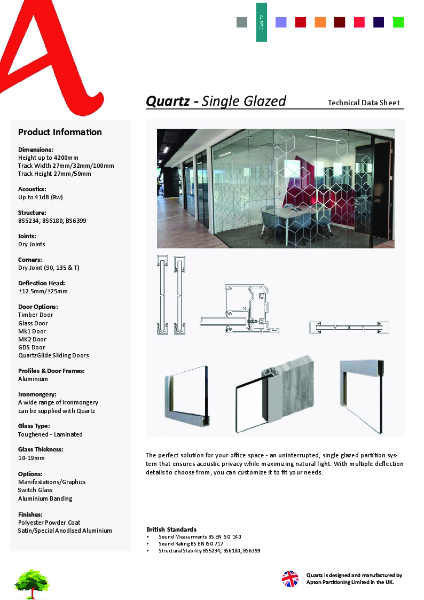

Quartz Single Glazed Data Sheet
Case studies
Mailbox Birmingham using Apton's Glazed Partitions, acoustic doors and sliding glass doors.
