Fire Rated Quartz - FR 30-30 Frameless Single Glazed Partition Panels - Fire Rated, FR30, Frameless, Glass
Verified by manufacturer 22 days ago
Fire Resistance Testing to BS 476
Certificate type
Class EI fire resistant, single-glazed Pyrobel 16 fire glass partition panels.
Application
Open-plan commercial offices and workplace environments.
Description
Class EI fire resistant, single-glazed Pyrobel 16 fire glass partition panels.
Features and benefits:
- The Quartz frameless glazed system can be supplied as single glazed, achieving up to FR30/30 rating, while utilizing Pyrobel 16 fire glass. Both glass and timber doors can be integrated into either of the systems and provide a rating of FR30/0.
- Apton's fire rated systems are tested to BS 476 part 22, in approved UKAS (United Kingdom Accreditation Services test houses, third-party accreditation and field of application are obtained through international fire consultants).
- Fire resistance specification Class EI (integration and insulation) for glass panels and Class E (integrity only) for doors.
General information
Color | Beige Black Blue Brown Clear |
Finish | Powder-coated Satin Anodized |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke Manufacturer guidanceMaximum 1000mm |
Width | Bespoke |
Height | Bespoke Manufacturer guidanceMaximum 3000mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Third-party certification | To BS 476 part 22, UKAS. Guidance for specification option: Tested to BS 476 part 22, in approved UKAS (United Kingdom Accreditation Services) test houses, third party accreditation and field of application are obtained through international fire consultants. |
Standard | To BS 5234, BS 6180, BS 6399. Manufacturer guidanceStructural stability. |
Unit size | |
Thickness | 16.8 mm. Manufacturer guidanceGlass thickness. |
Partition height (nominal) | 3000 mm. Guidance for specification option: Height up to 3000 mm. Head track height 50 mm. Floor track height 27 mm. Insert requirements or drawing reference number. |
Width (nominal) | 32 mm. Manufacturer guidanceTrack width. |
Deflection allowance (maximum) | |
Head | +/-12.5 mm. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Aluminium tracks and 77 x 77 mm clad corner posts. |
Solid panels | |
Finish and colour | Manufacturer guidanceAny RAL colour, insert requirements. |
Joint treatment | |
Type | 4 mm ceramic tape (M152) both edges of the glass. |
Glazed panels | |
Type | Single-glazed. |
Additional features | Not required. Manifestations. Aluminium banding. |
Door arrangement | |
Type | Timber door. 10 mm Pyran S glass door. |
Door frames | Aluminium. |
Door panels | |
Vision panels | Manufacturer guidanceA wide range of vision panels are available upon request for the Timber Doors. Consult manufacturer for details and insert requirements. |
Hardware | Manufacturer's standard. Guidance for specification option: As per field of application. |
Configuration | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Glass type | Pyrobel 16. |
AcousticRating | To BS EN ISO 717, up to 39 dB (Rw). Guidance for specification option: Sound measurements to BS EN ISO 140. |
FireRating | Glass: FR30/30; Track and doors: FR30/0. Guidance for specification option: Fire resistance specification Class EI (Integrity and Insulation) for glass panels and Class E (Integrity only) for track and doors. FoA is available upon request. |
Colour/ Finish | Polyester powder coat. Satin anodized. Special anodized finish. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Fire Resistance Testing to BS 476
KIWA Fire Resistant Glazed Partition Systems Certificate
Literature

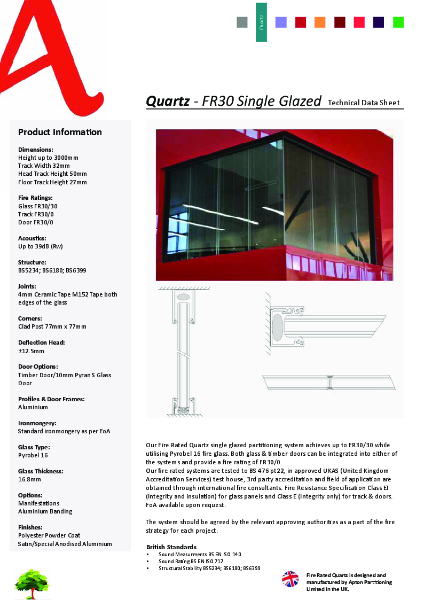

Quartz FR30.30 Single Glazed Data Sheet
