Colourline - Steel Framed Modular Partitioning System

Verified by manufacturer 2 days ago

Apton Partitioning

A modular system, with 75 mm or 100 mm wide x 23 mm high profiles, pre-glazed windows and pre-decorated panels.

Jump to:
Request BIM
+44(0)1902 385 250 Website

Application

Open-plan commercial offices and workplace environments.

Description

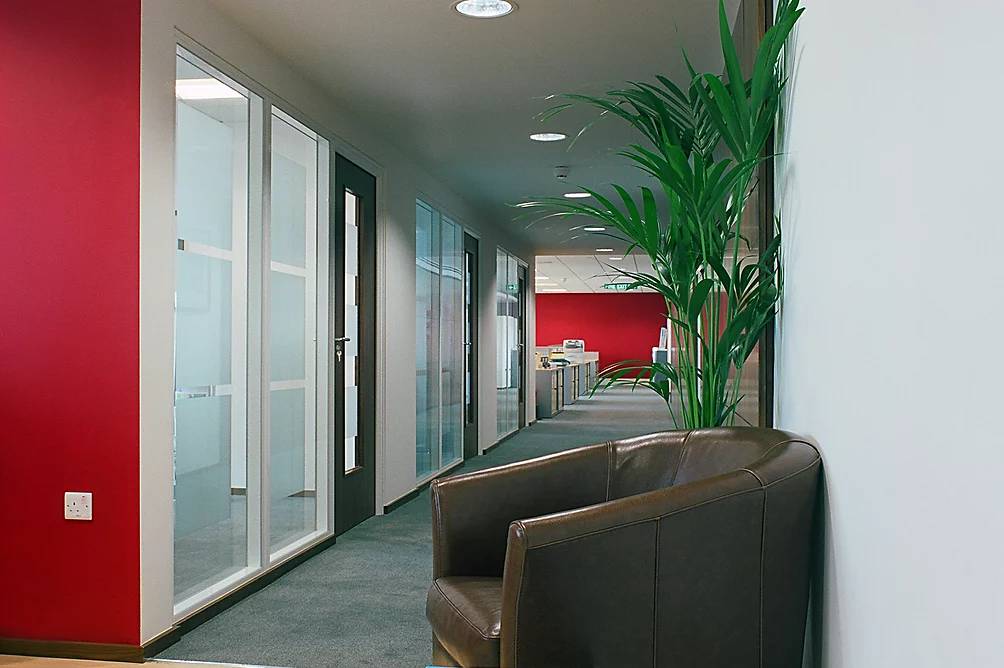

Apton's Colourline office partitioning system is a modular, fully demountable steel-framed system, featuring pre-glazed windows and pre-decorated panels. The wide spectrum of colours and versatile system options allows you to create your own office space.

Not only does the system provide a cost-effective solution compared to traditional construction methods, but it also offers time savings. The pre-glazed windows and pre-decorated panels eliminate the need for additional on-site tasks, reducing labour costs and minimising disruption to the workspace. The simplicity and efficiency of the installation process translate into significant cost savings without compromising on quality or design.

One of the features of Colourline is its pre-glazed windows. These windows are designed to be installed easily, providing ample natural light and a sense of openness within the office space. The pre-glazed windows also eliminate the need for additional time-consuming and costly glazing work on site. With the windows already integrated into the frames, installation becomes significantly simpler and faster.

In addition to the pre-glazed windows, Colourline has pre-decorated panels in a wide spectrum of vinyl, allowing you to customise your office space according to your brand identity or personal preferences. The pre-decorated panels eliminate the need for additional painting or decorating work, saving time and effort during the installation process. Furthermore, the quality and durability of these panels ensure a long-lasting and visually appealing office design.

By utilizing modular components, the system can be easily configured and reconfigured to adapt to changing office layouts or requirements. Whether you need to create individual offices, meeting rooms, collaborative spaces, or open-plan areas, Colourline can accommodate your needs effectively. The ease of assembly and disassembly of the modular components allows for quick adjustments and future expansions, ensuring that your office space can evolve along with your business.

Features and benefits:

  • Modular, fully demountable steel-framed system.
  • Quick on site installation process.
  • Pre-glazed windows and pre-decorated plasterboard panels.
  • Supplied in either 75 mm or 100 mm track widths.

General information

Color

Clear

Black

Other

Beige

Blue

Show more

Finish

Powder-coated

Material

Glass

Shape

Rectangle

Square

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Partition panels

Classification data

Standard

To BS 5234, BS 6180, BS 6399.

Manufacturer guidance

Structural stability.

Unit size

-

Thickness

Glass: 6 mm; Board: 12.8 mm.

Partition height (nominal)

4500 mm.

Guidance for specification option:

Height up to 4500 mm.

Track height 23 mm.

Insert requirements or drawing reference number.

Width (nominal)

75 mm.
100 mm.

Manufacturer guidance

Track width.

Panel partition type

Glazed and plasterboard.

Framing, fixing points and joints

Steel tracks and steel/ aluminium corners.

Solid panels

-

Finish and colour

Vinyl.

Guidance for specification option:

Consult manufacturer for colour options and insert requirements.

Joint treatment

-

Type

Top hat trims.
Contour joint.
Aluminium trim.

Glazed panels

-

Type

Double-glazed.

Integral blinds

Not required.
Required.

Additional features

Not required.
Manifestations.
Graphics.

Door arrangement

-

Type

Timber Door.
Glass Door.
MK1 Door.
MK2 Door.
GDS Door.

Door frames

Steel.

Door panels

-

Vision panels

-

Manufacturer guidance

A wide range of vision panels are available upon request for the Timber Doors. Consult manufacturer for details and insert requirements.

Hardware

-

Manufacturer guidance

A wide range of ironmongery can be supplied with Colourline. Consult manufacturer and insert requirements or refer to a schedule.

Configuration

As schedule.
As drawing.

Guidance for specification option:

Insert drawing reference number.

Glass type

Toughened.
Laminated.
Switch glass.

AcousticRating

To BS EN ISO 717, up to 43 dB (Rw).

Guidance for specification option:

Sound measurements to BS EN ISO 140.

Colour/ Finish

Polyester powder coat.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Glass

Literature

Colourline Data Sheet

Colourline Data Sheet
