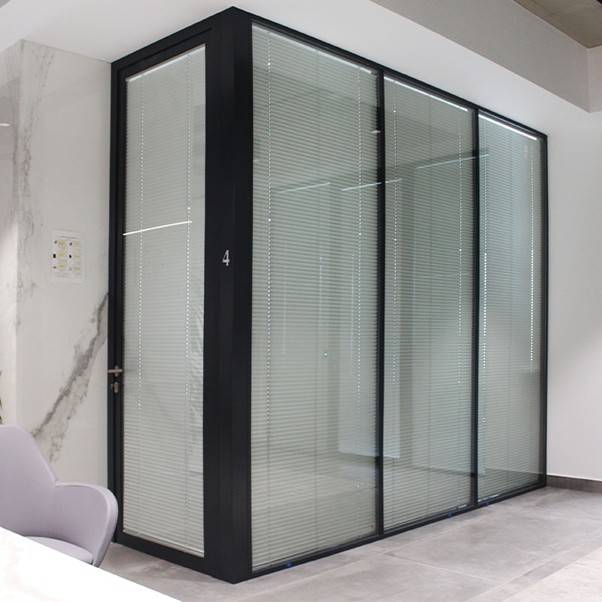

Quartz Blend - Glass Partition
Verified by manufacturer 2 days ago
Double-glazed glass partitioning system with integrated posts and transoms.
Application
Open-plan commercial offices and workplace environments.
Description
Quartz Blend is a 100 mm double-glazed system, featuring integrated mullion posts and transoms.
Features and benefits:
- High acoustic resistance.
- Seamless design.
General information
Color | Clear Silver Black White Other |
Finish | Anodized Powder-coated |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Standard | To BS 5234, BS 6180 and BS 6399. Manufacturer guidanceStructural stability. |
Unit size | |
Partition height (nominal) | 4200 mm. |
Width (nominal) | 100 mm. Manufacturer guidanceTrack width. |
Deflection allowance (maximum) | |
Head | +/-12.5 mm. +/-25 mm. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Aluminium mullions posts, tracks and transoms. |
Joint treatment | |
Type | Aluminium linear joints and dry jointed corners. |
Glazed panels | |
Type | Double-glazed. |
Integral blinds | Not required. Required. |
Additional features | Not required. Manifestations. Graphics. |
Door arrangement | |
Type | Timber Door. Glass Door. MK1 Door. MK2 Door. GDS Door. QuartzGlide Sliding Doors. |
Door frames | Aluminium. |
Door panels | |
Vision panels | Manufacturer guidanceA wide range of vision panels are available upon request for the Timber Doors. Consult manufacturer for details and insert requirements. |
Hardware | Manufacturer guidanceA wide range of ironmongery can be supplied with Quartz. Consult manufacturer and insert requirements or refer to a schedule. |
Configuration | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Glass type | Toughened. Laminated. Switch glass. Guidance for specification option: Consult manufacturer for details. Manufacturer guidanceGlass thickness: 10–19 mm. |
AcousticRating | To BS EN ISO 717, up to 55 dB (Rw). Guidance for specification option: Sound measurments to BS EN ISO 140. |
Colour/ Finish | Polyester powder coat. Satin anodized. Special anodized finish. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Literature
Quartz Blend Data Sheet
