Puracore 50 mm Raceway Panel

Verified by manufacturer 4 months ago

Gilcrest Manufacturing Third party certifications:
  • EPD

    EPD

    Certificate type

  • FM Approved

    FM Approved

    Certificate type

50 mm Aluminium Honeycomb Raceway Panel

Jump to:
+44 (0117) 316 7020 Website

Application

For internal clean room use.

Description

Our Puracore 50mm Raceway Panel was developed to offer additional functionality to your cleanroom. It offers a hidden compartment within the panel that hides the less commonly used valves and switches.It has a removable face that allows easy access without compromising the structural integrity of the cleanroom.

  • Offers future proofing for cabling or service ways.


General information

Color

White

Finish

Anti-microbial

Manufacturer guidance

Wide range available.

Material

Aluminium

Steel

Shape

Rectangle

Square

Other

Length

3000 mm

Width

50 mm

Height

300 mm

Warranty description

Ten year

Uniclass

Ss_25_12_65_65 Panel partition systemsPrimary

CAWS

K30/10 Relocatable partition system

K30/135 Relocatable partition/ ceiling system

K30/130 Relocatable partition system

Specification data - Panel partition systems

Adhesive

Two pack adhesive at 115 oz/ft².

Core

Aluminium honeycomb core.

Cover

Raceway cover: 9.525 mm (3/8") thick aluminium honeycomb cored covered pane.

Edge

Tongue: 19 mm flexible PVC/ rigid PVC/ aluminium.

Ingress protection

Protection against ingress of solid objects (minimum): To BS EN 60529, IP4X. Protection against ingress of water (minimum): To BS EN 60529, IPX1. Protection against access to hazardous parts (minimum): To BS EN 60529, IPXXD.

Material:

0.5 mm galvanized steel panel with an aluminium honeycomb core and aluminium box section.

Product Reference

50 mm Raceway Panel

Sizes

300 x 3000 mm – Void size: 200 x 40 mm. Length: 6 m (maximum).

Standards

BS EN 60529.

Thickness

50 mm.

Thickness:

50 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Steel

Recyclability

Can be recycled as scrap metal

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

35 %

Third party certifications

Third party certifications

EPD

EPD

EPD

FM Approved

FM Approved

FM-4882 Certificate

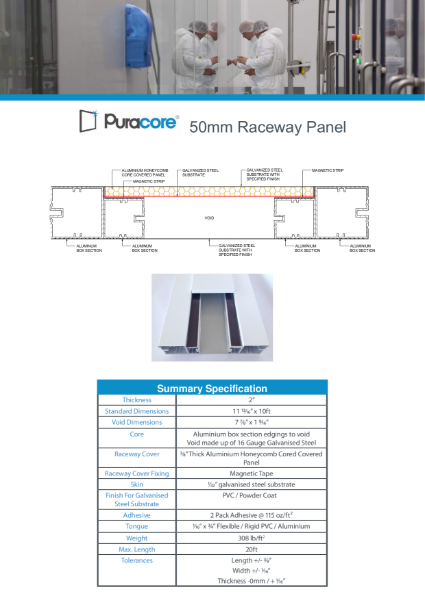

Literature
