Concealed Conduit Panel
Verified by manufacturer 4 months ago
Custom conduit panel.
Application
Internal applications, to suit Puracore® wall panels.
Description
Concealed conduit panel to fit conduits and services.
Features and benefits:
- Conduit’s PVC tube can link to either a flush back box on the front or back of the panel.
- Panels match the rest of the Puracore system and fit in seamlessly.
- Can be placed to suit your requirements.
- 0.5 mm galvanized steel substrate.
- Non-standard back box sizes.
General information
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle Square |
Length | Bespoke |
Height | Bespoke |
Warranty description | Nine year |
Uniclass | |
CAWS | K30/135 Relocatable partition/ ceiling system K30/130 Relocatable partition system K30/10 Relocatable partition system |
Specification data - Panel partition systems
Thickness | 50 mm to match Puracore® wall panels. |
Core | 48.8 mm thick 3/4” aluminium honeycomb. |
Frame | Aluminium 6063 box extrusion to panel perimeter. |
Adhesive | Twin pack solvent free adhesive @ 300g/m² per face. |
Weight | 13 kg/m². |
FireRating | ASTM E84 Class A. FM Approvals 4882 and 4880. |
Mounting | Surface mounted. |
Finish options | Steel. Guidance for specification option: Facing Skin. Aluminium powder coated. Guidance for specification option: Facing Skin. PVC. Guidance for specification option: Finish for galvanized steel substrate. Polyester. Guidance for specification option: Finish for galvanized steel substrate. Primer. Guidance for specification option: Finish for galvanized steel substrate. |
Standard | FM approved, BRE global certification, ASTM certification. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Can be recycled as scrap metal |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % |
Literature

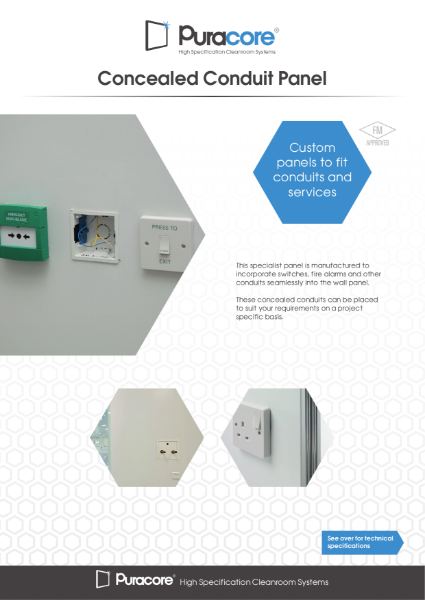

Concealed Conduit Panel Product Data Sheet
