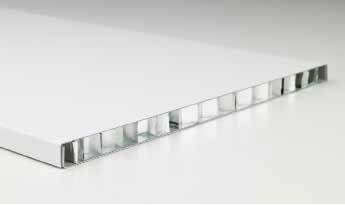

Puracore 10 mm Aluminium Honeycomb Liner Panel
Verified by manufacturer 4 months ago
FM Approved
Certificate type
EPD
Certificate type
Puracore 10 mm Aluminium Honeycomb Liner Panel
Application
Internal cleanroom use.
Description
Our Puracore 10mm Aluminium Honeycomb Lining Panel has been specifically designed to be used as cladding to existing walls.
Whether your objective is functional or aesthetic, this lining panel can provide an immaculate interior to any wall system.
- Perfect for upgrades to existing facilities
- Very easy installation
- Non-shedding core
- Easy to cut and shape utility panel for finishing edges
- Can be magnetically installed
General information
Color | White |
Finish | Anti-microbial Powder-coated Galvanized Mirrored Anodized Manufacturer guidanceWide range available. |
Material | Aluminium Steel |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/135 Relocatable partition/ ceiling system K30/130 Relocatable partition system |
Specification data - Panel partition systems
Finish | Aluminium powder coated. P.E.T. PVC-U Laminate. Polyester. Primer painted. |
Fire resistance | Class ‘O’. |
Fixing type | Two pack solvent free adhesive at 300 g/m² per face. |
Panel external face | 0.5 mm galvanized steel substrate with specified finish. |
Core | 9 mm (½”) Aluminium Honeycomb 3003 Grade. |
Length | Various up to 3000 mm. |
Width | Various up to 1200 mm. |
Thickness | 10 mm. |
Weight | 8.7 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 44.28 kg CO₂ eq/m² |
Recyclability | Can be recycled as scrap metal |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications

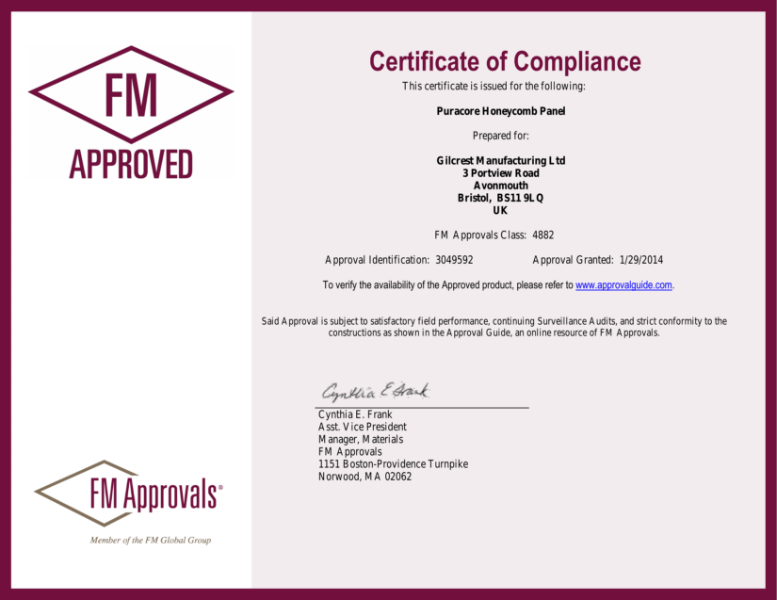

FM Approved
FM-4882 Certificate

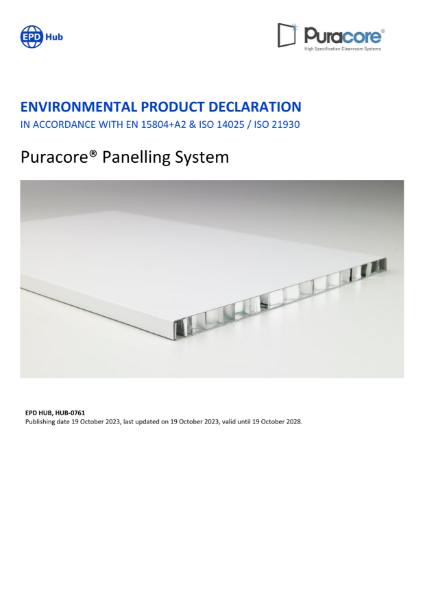

EPD
EPD
Literature

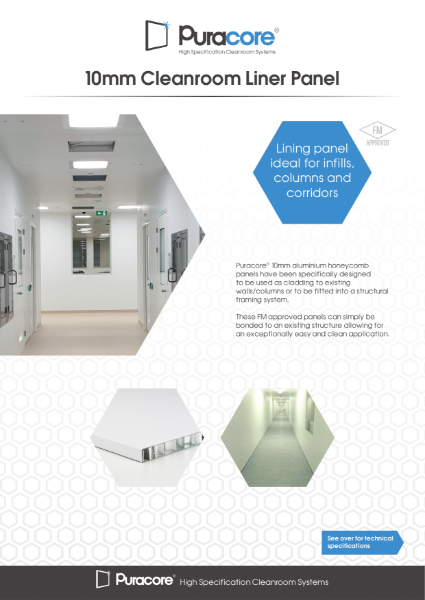

10 mm Aluminium Honeycomb Lining Panel Product Data Sheet
