Powershield Acoustic Steel Doorset Range
Verified by manufacturer over a year ago

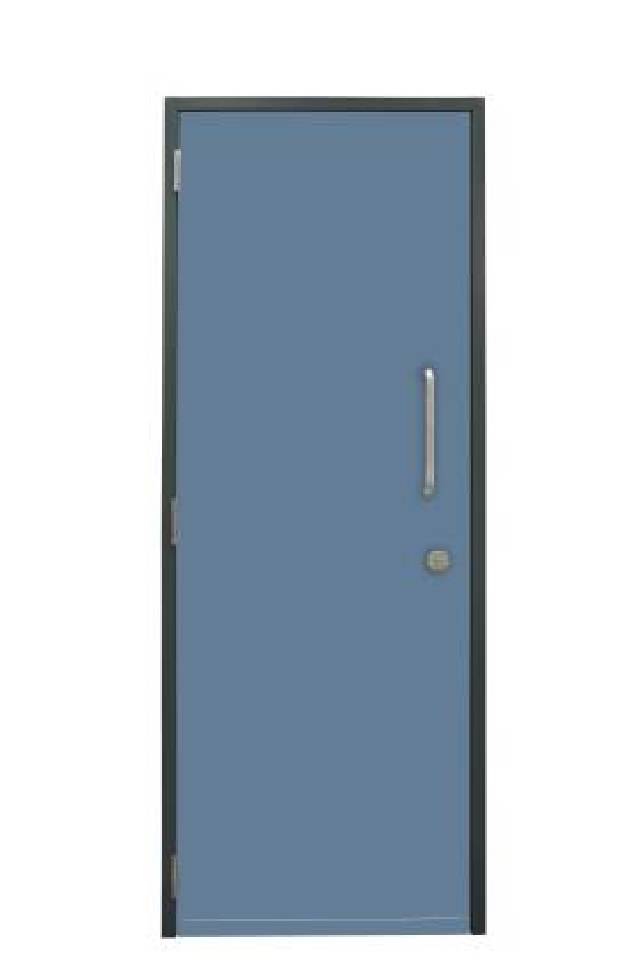

Acoustic steel doorset.
Description
Acoustic steel doorset suitable for different sound reduction levels up to 45 Rw dB.
Manufactured from steel providing greater mass than other raw materials. Through extensive research the core materials and combinations used in Powershield Acoustic doorsets have been developed to improve both insulation and stiffness. Through extensive research our core materials and combinations have been developed to improve both insulation and stiffness. The Powershield Acoustic range can deliver different levels of sound reduction to suit individual room and building requirements.
Additional information for this product is available from:
https://www.assaabloy.co.uk/en/local/uk/product/all-products/security-doors1/powershield-steel-doorsets--glazing-/powershield-acoustic/
Approvals:
Most standard configurations are available as Certifire compliant and therefore regularly audited and approved by third party to ensure continued conformity.
General information
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
SKU Code | unknown |
Product range |
Specification data - Aluminium doorsets
Classification data | |
Product Reference | AD 1 Guidance for specification option: Sonata - Powershield Acoustic: 28 Rw dB. AD 2 Guidance for specification option: Encore - Powershield Acoustic: 37 Rw dB. AD 3 Guidance for specification option: Quartet - Powershield Acoustic: 43 Rw dB. AD 4 Guidance for specification option: Symphony - Powershield Acoustic: 45 Rw dB |
Material | |
Type | Galvatite ZF Galvanneal Guidance for specification option: Standard, 1.2–2 mm thick. Stainless steel, grade 1.4301 (304) Guidance for specification option: Optional, 1.2–4 mm thick. Stainless steel, grade 1.4401 (316) Guidance for specification option: Optional, 1.2–4 mm thick. |
Colour/ Finish | Epoxy powder primed Polyester powder coated Guidance for specification option: Insert requirements. Rimex patterned Guidance for specification option: Stainless steel only. Satin polish 180–240 grit Guidance for specification option: Stainless steel only. |
Profile | Single rebate Double rebate Two part wrap around As drawing As schedule |
Vision panel | |
Type | 1 – Single glazed 2 – Double glazed 3A – Double glazed with concealed fixings 3B – Double glazed mastic-sealed |
Glazing | Guidance for specification option: Insert drawing reference number where applicable. |
Seals | None Guidance for specification option: Single action doors do not require intumescent seals. Drop seal Guidance for specification option: Available upon request. Smoke seal Guidance for specification option: Available upon request. |
Standard product features | Core material: Acoustic core material to suit classification. |
Product Options | Material: - Type
- Colour/ Finish: Powershield Security Doors are available in a wide range of finishes including primed, powder coated and stainless steel. Ironmongery: An extensive range of ironmongery is available from ASSA ABLOY, consult manufacturer for exact details. |
