50 or 60 mm non-thermally broke profile system for doors.
Two profile options of 50 and 60mm deep enable a wide range of compliant fire glass types to be used, including single and double glazed units with the 60mm section accommodating glazing units of up to 34mm thick. Glass is secured with unique design clip-on beads.
The high performing glazing system offers high levels of fire integrity as well as smoke control. The steel framing enables screens to complete larger openings whilst the narrow profiles offer maximum glass area keeping light transmission and aesthetics a priority.

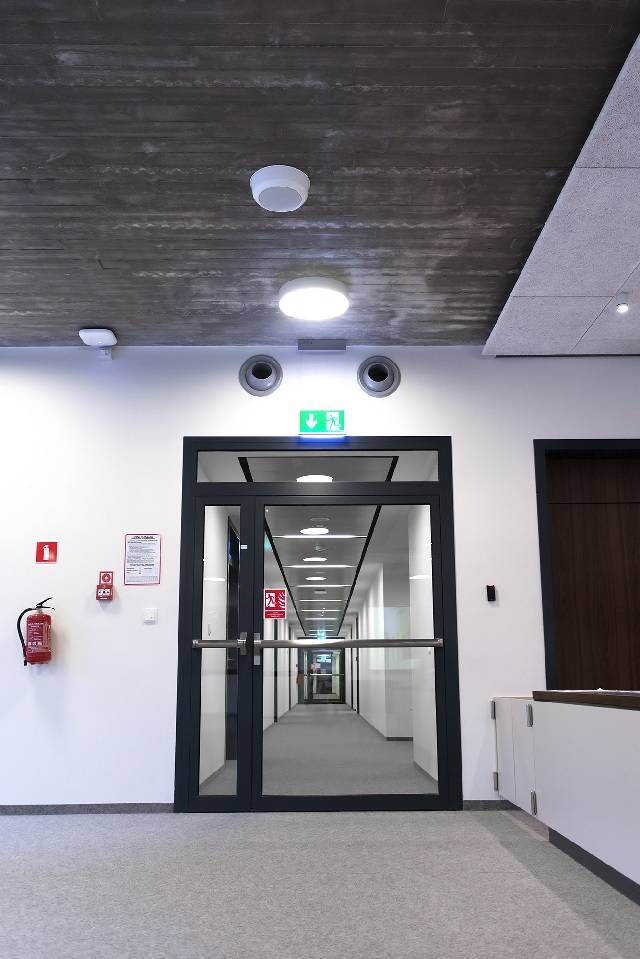

Ideal for internal dividing walls where light and feeling of open space is desirable, or in corridors with limited light sources; but where, in both instances fire compartmentation is a requirement.
The Powershield Ignis range is suitable for internal use where thermal performance is not expected, such as:
Powershield Ignis doors and screens are manufactured from specialist rolled steel sections, similar to those found in the aluminium glazing systems, but being manufactured from steel they offer unrivalled fire performance with up to E120 (FD120) available
Applications:
Two profile options of 50 and 60mm deep enable a wide range of compliant fire glass types to be used, including single and double glazed units with the 60mm section accommodating glazing units of up to 34mm thick. Glass is secured with unique design clip-on beads.
- Non-fire rate:
Can be used for single or double single acting doors, inward or outward opening as well as double acting doors.
- Fire integrity only:
Fire integrity ranges from E30 to E120. All test data complies with BS 476 or BS EN 1634.
Material | Steel Stainless Steel, 1.4301 (304) Stainless Steel, 1.4401 (316) |
Material | Steel Stainless Steel, 1.4301 (304) Stainless Steel, 1.4401 (316) |
Uniclass | |
CAWS | H11/135 Doors L10/33 Proprietary windows L10/550 Glazed metal screens L20/480 Doorsets L20/55 Doorsets |
Product range |
Product Reference | Ignis |
Material | SteelStainless Steel, 1.4301 (304)Stainless Steel, 1.4401 (316) |
Fire performance | Non-fire ratedE30E60E90E120 |
Glazing/ Panels | Guidance for specification option: Insert requirements. |
Ironmongery | Guidance for specification option: Insert requirements. |
Accessories | Guidance for specification option: Insert requirements. |
Standard product features | Fixing: Fixing of frames can be achieved in several ways. Typical fixings include woodscrews, plug and screw combinations, expanding anchors, machine screws/bolts and chemical fix. Consult manufacturer for exact details. |
Product Options | Material: - Steel: Profiles are supplied in Black finish or pre-galvanized (GV-VC yellow chromated) finish. Colour/ Finish: Powershield Ignis doors and screens can be manufactured from black or pre-galvanised steel profiles and finished with a factory applied polyester powder coated paint to a wide range of colours. Alternatively, these can be manufactured from grade 304 or grade 316 stainless steel and supplied with a range of polished finishes. Panels: - Non fire: Various constructed panel variations can be incorporated with the Presto system, and these can be made from steel faced two panel trays, flat steel/plastic sheets or timber panels. - Fire integrity: Fire integrity from E30 (FD30) to E120 (FD120) as tested to EN 1634-1. Tested for flush fitting single and double leaf doorsets for smoke in accordance with DIN 18095 (RS-1 and RS-2). Accessories: Can be used in a multitude of applications, such as fire or security, various types of accessories can be used. For example, electric lockstrikes or magnetic locks can be easily fitted for security applications or full door entry solutions with automatic detection and opening. |
