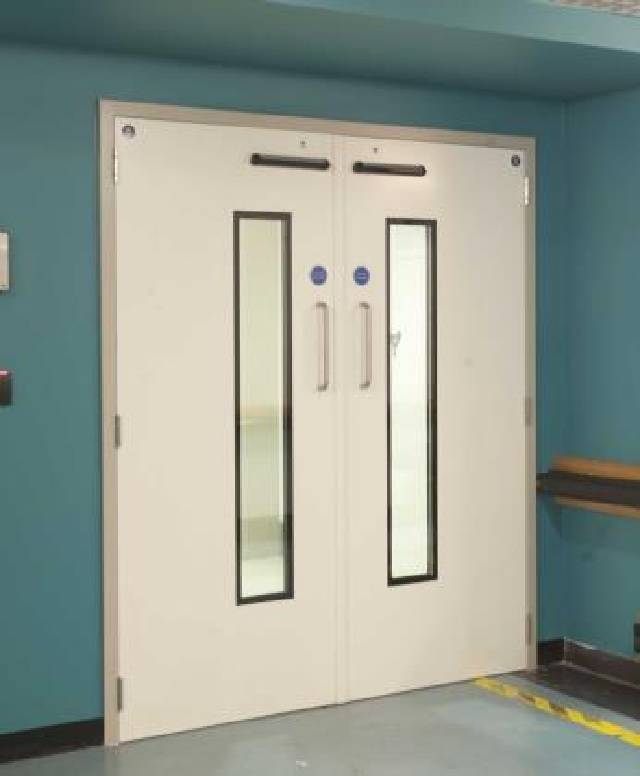

Powershield Cleanroom Doorset

Description

Powershield Cleanroom Doors are manufactured from high quality steel. Seamless finishes are applied to all leaf edges to ensure that surfaces can be easily cleaned and that there are no areas where dirt may collect or bacteria can grow.

Cleanroom doorsets provide superior quality to meet the stringent requirements of cleanrooms, in accordance with ISO 14644 cGMP standards.

The smooth flush edges on the door leaves and the seamless mitres and welded corners on the frames satisfy the requirements of high-tech laboratories, research facilities, hospitals and food processing plants.

Powershield Cleanroom is a high quality aesthetically pleasing door, which uses SMARTform Technology and offers discreet performance and security suitable for use in a cleanroom environment.

Features:

- Seamless finish:

Manufactured from high quality steel. Seamless finishes are applied to all leaf edges to ensure that surfaces can be easily cleaned and that there are no areas where dirt may collect or bacteria can grow.

- Integral astragal:

Overlapping astragals are required on Cleanroom double leaf doors when fire resistance is necessary or when air pressure differentials between rooms need to be regulated. Powershield Cleanroom Doors feature a unique fully-integrated astragal, ensuring no seams or fixings on the face of the door leaf.

- Vision panels:

A wide range of cGMP compliant vision panels are available. Options include 45° vision kits for single glazing or flush glazing to one or both sides. Can be supplied with no visible fixings to ensure an easy wipe-clean surface.

- Flush cover cap:

Can be finished with a flush cover cap at fixing positions for a smooth easy wipe-clean surface on frames.

- Fully welded frame:

Supplied with a mitred, fully welded and ground-smooth connection between jambs and head.

Additional information for this product is available from:

https://www.assaabloy.co.uk/en/local/uk/product/all-products/security-doors1/powershield-steel-doorsets--glazing-/powershield-cleanroom-doorset/

Approvals:

  • BS EN 14351-1:2006 +A1 2010.
  • Upgradable to EN-ISO 140-3.
  • Upgradable to FD30(S) - FD240(S) in accordance with BS476 Part 22: 1987.
  • Upgradable to E30 - E240 in accordance with EN1634-1: 2008.
  • Most standard configurations are available as Certifire compliant and therefore regularly audited and approved by third party to ensure continued conformity.

General information

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Metal doorsets

Product Reference

Cleanroom Doorset

Material

-

Type

Galvatite ZF Galvanneal

Standard, 1.2–2 mm thick.

Stainless steel, grade 1.4301 (304)

Optional, 1.2–4 mm thick.

Stainless steel, grade 1.4401 (316)

Optional, 1.2–4 mm thick.

Thickness

-

Colour/ Finish

Epoxy powder primed

Polyester powder coated

Insert requirements.

Rimex patterned

Stainless steel only.

Satin polish 180–240 grit

Stainless steel only.

Profile

Single rebate

Double rebate

Hospital stop

Double rebate profile only.

Two part wrap around

As drawing

As schedule

Vision panel/ Louvre

-

Type

1 – Single glazed

2 – Double glazed

3A – Double glazed with concealed fixings

3B – Double glazed mastic-sealed

Glazing

Insert drawing reference number where applicable.

Product Options

Material:

- Colour/ Finish:

Powershield Fire Doors are available in a wide range of finishes including primed, powder coated and stainless steel. For our standard colour range please contact us on 028 9266 2200 for further options.

Ironmongery:

An extensive range of ironmongery is available from ASSA ABLOY, consult manufacturer for exact details.
