Powershield Personnel Doorsets

Description

Powershield Personnel Doors have been developed by our in-house design team to provide customers with doors and frames that offer high performance, exceptional quality and longer life expectancy. Our attention to detail in both customer service and product quality has gained us a reputation as a market leader in hinged steel doors.

Acoustic variant (37 dB sound reduction):

  • Additional to the Personnel Doorset:
  • Doorset fitted with acoustic frame seals.
  • Doorleaf fitted with integral drop seal.
  • Threshold fitted with Aluminium threshold strip.

Additional information for this product is available from -

https://www.assaabloy.co.uk/en/local/uk/product/all-products/security-doors1/powershield-steel-doorsets--glazing-/powershield-personnel-doorsets/

Approvals:

  • BS EN 14351-1:2006 +A1 2010.
  • Upgradable to EN-ISO 140-3.
  • Most standard configurations are available as Certifire compliant and therefore regularly audited and approved by third party to ensure continued conformity.

General information

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Metal doorsets

Product Reference

Thermo (energy saving) - Energy Saving Personnel Doorset

Sports Hall - Sportshall

Personnel - Personnel Doorset

Configuration

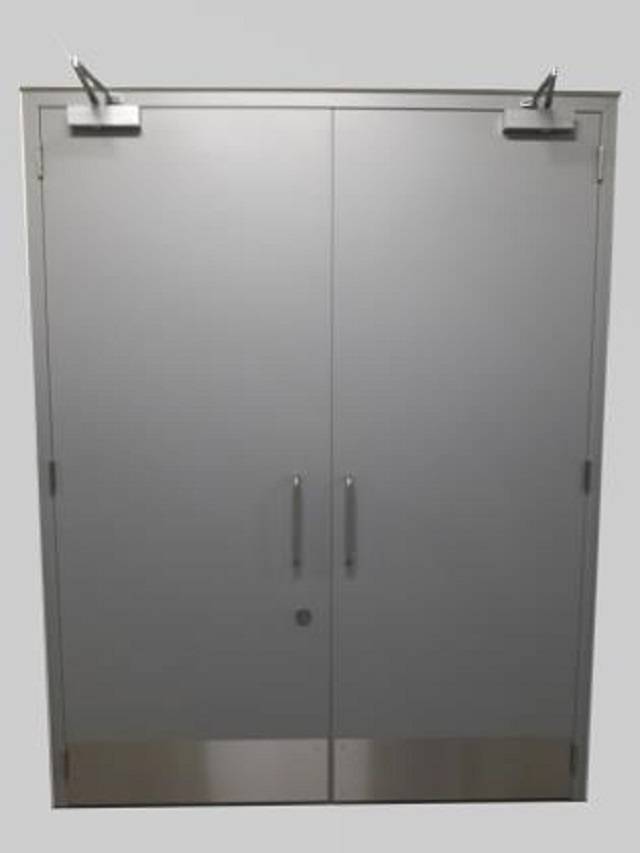

Double leaf

Double leaf sliding

Double leaf with overhead panel

Double leaf with side panel

Double leaf with side panel and overhead panel

Double leaf with side panel both sides

Double leaf with side panel both sides and overhead panel

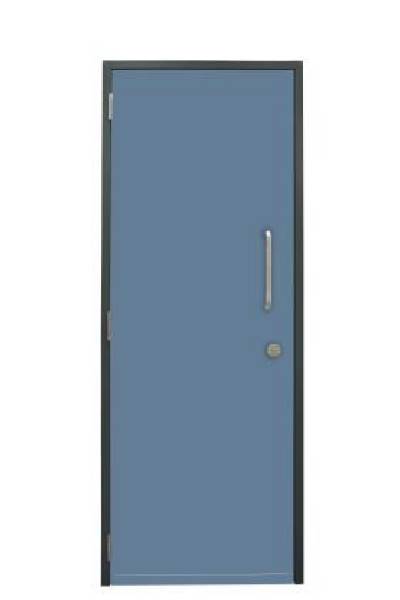

Single leaf

Single leaf sliding

Single leaf with overhead panel

Single leaf with side and overhead panel

Single leaf with side panel

Single leaf with side panel both sides

Single leaf with side panel both sides and overhead panel

As drawing

As schedule

Material

-

Type

Galvatite ZF Galvanneal

Standard, 1.2–2 mm thick.

Stainless steel, grade 1.4301 (304)

Optional, 1.2–4 mm thick.

Stainless steel, grade 1.4401 (316)

Optional, 1.2–4 mm thick.

Thickness

Insert requirements.

Colour/ Finish

Epoxy powder primed

Polyester powder coated

Insert requirements.

Rimex patterned

Stainless steel only.

Satin polish 180–240 grit

Stainless steel only.

Handing

Left hand active inside

Left hand active outside

Left hand inside

Left hand outside

Right hand active inside

Right hand active outside

Right hand outside

As drawing

As schedule

Profile

Double rebate

Double swing

Half wraparound

Overhead panel transom

Side panel mullion

Single rebate

Wraparound

As drawing

As schedule

Ironmongery

Insert requirements.

Vision panel/ Louvre

-

Type

1A

1B

2

3A

3B

Standard lourvre

Free air flow 50%.

Fireblock louvre

Glazing

Insert drawing reference number where applicable.

Threshold

Low profile aluminium DDA complaint

Low profile steel DDA complaint

Seals

188S smoke seal

Acoustic frame seal

Door silencer

EPDM draught seal

Integral drop seal

Integral frame seal

Standard product features

Door leaf:

  • Two skins of 1.2 mm thick steel. Other thicknesses and stainless steel material available.
  • 44 mm thick door leaf with no face seams.
  • Doors are stiffened, insulated and sound deadened with pre-expanded, small cell honeycomb core material and laminated under pressure to the face skins.
  • Face skins are connected by a continuous 'deep pocket' interlocking edge lock seam for added strength and durability.
  • 1.6 mm steel end channels projection welded to the top and bottom of the door.
  • Door edges are bevelled for ease of operation and close fit.
  • Doors are morticed, reinforced, drilled and tapped for three templated hinges.
  • For double doors: An astragal is folded into the leading edge of one leaf to ensure a totally sealed unit.

Door frame:

  • Manufactured from 1.5 mm steel with single, double rebate or wraparound profile.
  • Supplied in either knock down or fully welded smooth finish.
  • Frames are morticed, reinforced, drilled and tapped for hinges and strikes.
  • Frames are provided with four fixings per jamb, built-in adjustment and complete with cover caps.

Product Options

Material:

- Colour/ Finish:

A wide range BS and RAL polyester powder coated colours are available, consult manufacturer for more details or refer to colour chart.

Ironmongery:

An extensive range of ironmongery including single panic bolts and latches, push pads, touchbar bolts and latches, door closers (light, medium and heavy duty), friction door holders, mortice sashlocks, nightlatches, deadlocks, lever handles, euro profile cylinders, push/kick plates, escutcheons and pull handles are available from ASSA ABLOY, consult manufacturer for exact details.

Vision panel/ Louvre:

- Type:

A wide variety of options available including single or double glazing with or without concealed fixings. Consult manufacturer for exact details.

- Glazing

  • Square.

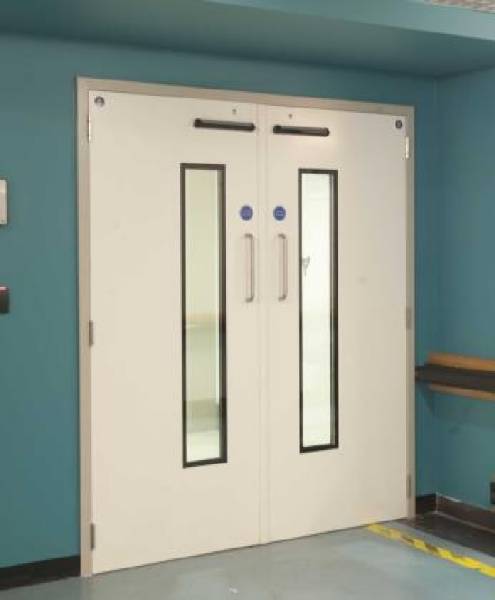

  • Rectangle.
  • DDA complaint.

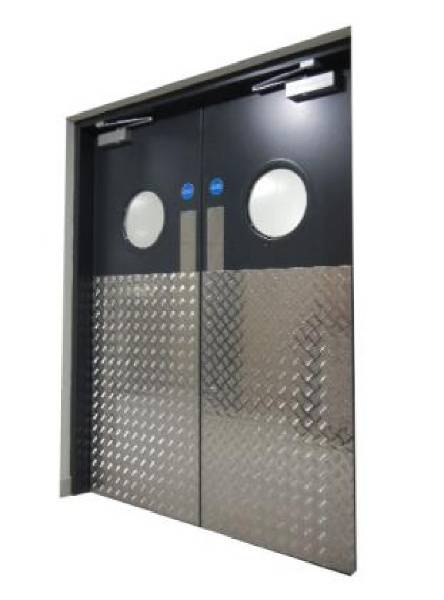

  • Circular.
  • Multiple panel DDA complaint.
  • Multiple panel.
  • Single or double louvre.
  • Full leaf louvre.
