PermaQuik Standard Protection Sheet XL

Verified by manufacturer 2 months ago

Radmat Building Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Bituminized polyester mat.

Jump to:
+44 (0)1858 410372 Website

Application

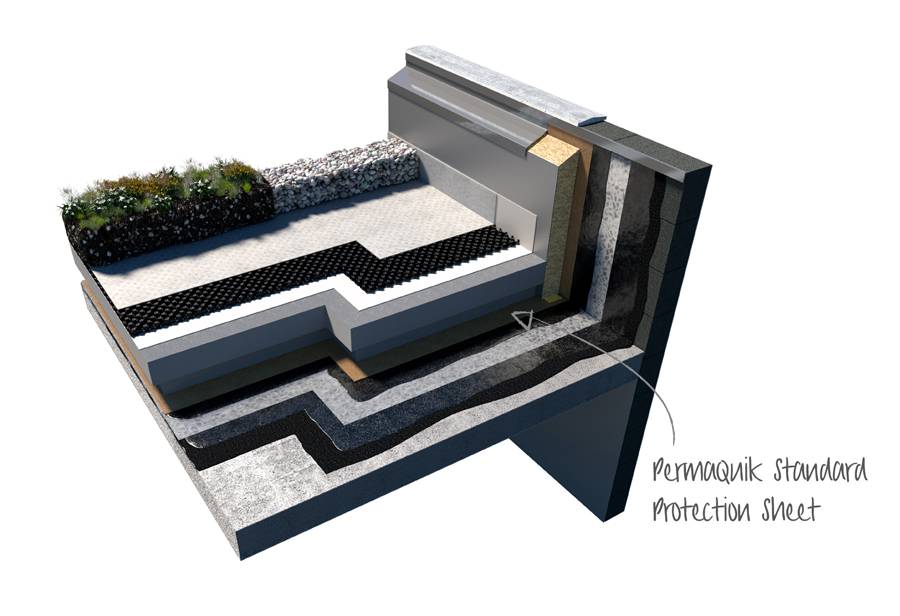

For use as secondary layer or a top surface over PermaQuik PQ6100.

Description

Bituminized polyester mat, for use as secondary layer or a top surface over PermaQuik PQ6100.


Features and benefits:

  • Cut and formed using sharp hand tools.
  • Side overlaps: 80 mm; end overlaps: 100 mm.
  • BBA certified.

General information

Color

Black

Finish

Sanded

Material

Bitumen

Length

16000 mm

Width

1000 mm

Height

2 mm

Uniclass

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J31/353 Waterproof coating

J31/130 Inverted roof coating

J31/12 Inverted roof coating

Specification data - Reinforced bitumen roofing sheets

Standard

To BS EN 13707.

Performance characteristics

Manufacturer's standard.

Guidance for specification option:

Tensile strength:

  • Transverse strength (minimum): 400 ± 20% N/50 mm.
  • Longitudinal strength (minimum): 600 ± 20% N/50 mm.

Elongation at break:

  • Transverse direction (minimum): 30 ± 10%.
  • Longitudinal direction (minimum): 25 ± 10%.


See manufacturer's technical data sheet for further details.

Material

-

Carrier material

Polyester mat.

Bitumen modification

Oxidized.

Thickness (minimum)

1.9 mm.

Weight (minimum)

2.25 kg/m²

Surface finish

-

Top

Sand.

Underside

Sand.

Colour

Black.

Third-party certification

BBA Certificate 97/3336.

Roll size (w x l)

1000 x 16 000 mm.

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

97/3336 PermaQuik PQ6100

Literature

PermaQuik Standard Protection Sheet XL Product Data Sheet

PermaQuik Standard Protection Sheet XL Product Data Sheet
