EshaTherm TK40
Verified by manufacturer 4 months ago
Thermo adhesive vapour pressure distribution base layer.
Application
- Suitable for all types of roof with a flat or sloped roof construction on new build or refurbishment.
- Torch applied to base sheet or suitable surface in accordance with the Radmat specification. Overlaps must be torched.
Description

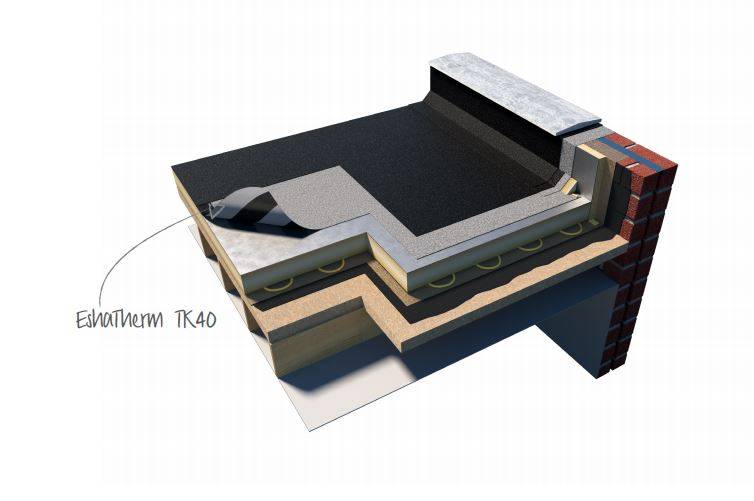

EshaTherm TK40 is a thermo adhesive vapour pressure distribution base layer for use in partially bonded two layer systems.
Features and benefits:
- EshaTherm TK40 is an SBS modified bituminised fibreglass fabric with a strip applied thermal adhesive coating.
- Suitable for all types of roof with a flat or sloped roof construction on new build or refurbishment.
- Reaction to fire: Class F.
- Conforms to EN 13707:2004 +A2:2009.
Product information:
- Top side: Macro perforated film finished with sand
- Coating topside: SBS modified bitumen.
- Reinforcement: Glass fabric.
- Coating bottom side: SBS modified bitumen & partially applied thermal adhesive coating.
- Appearance bottom side: PE-film.
Overlaps:
- Side overlaps: 80 mm.
- End overlaps: 100 mm.
For all applicable roofing systems contact Radmat Building Products and see BBA certificate No.15/5282. For a comprehensive NBS J41 specification contract Radmat Building Products.
General information
Color | Black |
Finish | Guidance for specification option: Macro perforated film finished with sand. |
Material | Bitumen Guidance for specification option: SBS modified bituminised fibreglass fabric with a strip applied thermal adhesive coating. |
Size | 7500 x 1000 x 3.8 mm |
Uniclass | |
CAWS | J41/12 Reinforced bitumen membrane cold deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/400 Built-up reinforced bitumen waterproof covering |
Specification data - Reinforced bitumen roofing sheets
Standard | To BS EN 13707. |
Performance characteristics | Visible defects: Pass, Straightness: Pass. |
Material | |
Carrier material | Glass fibre. |
Thickness (minimum) | 3.8 ± 0.2 mm. |
Weight (minimum) | 4.2 ± 10% kg/m². |
Surface finish | |
Top | Sanded.Guidance for specification option: Macro perforated film finished with sand. |
Underside | PE-film. |
Colour | Black. |
Roll length | To EN 13707, 7.5 m. |
Roll width | To EN 13707, 1 m. |
Reaction to fire | To EN 13707, Class F. |
Watertightness | To EN 13707, Pass ≥ 10 kPa. |
Tensile strength (Machine direction) | To EN 13707, 1250 ± 20% N/50 mm. |
Tensile strength (Cross direction) | To EN 13707, 2000 ± 20% N/50 mm. |
Elongation MD/CD | To EN 13707, 5 ± 3%. |
Flexibility at low temperature | To EN 13707, ≤ 10°C. |
FlowResistanceRange | To EN 13707, ≥ 100°C. |
Dimensional stability | To EN 13707, ≤ 0.1%. |
Water vapour resistance | To EN 13707, 20 000 μ. |
