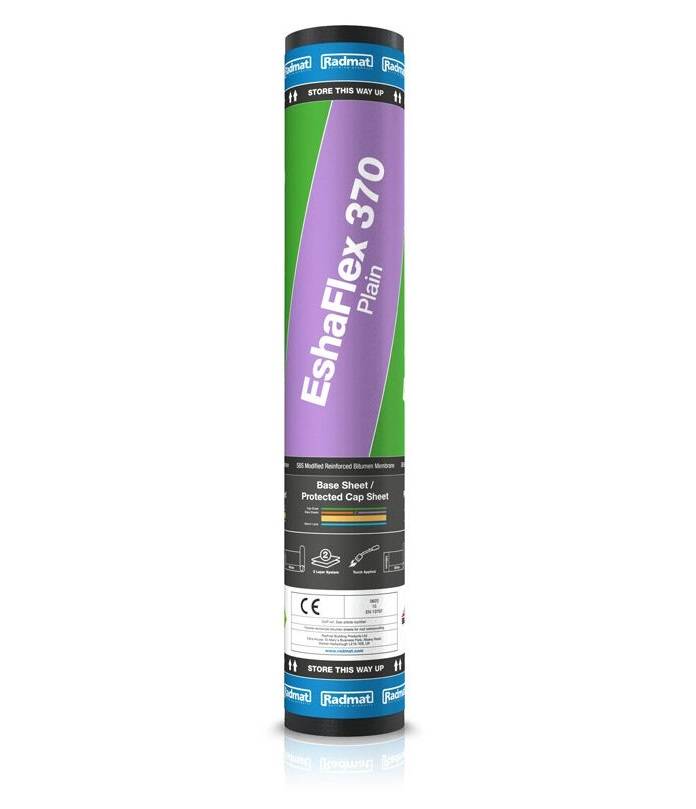

EshaFlex 370 Plain

Name: EshaFlex 370 Plain
Brand: Radmat Building Products Ltd
SKU: 9jDttcTX8YXbAv7NWguNH1

Verified by manufacturer 3 months ago

Radmat Building Products Ltd

Third party certifications:

EPD
Certificate type
BBA Agrément Certificate
Certificate type

Torch-applied SBS modified bituminized polyester/ fibreglass composite cap sheet in loose laid or ballasted systems or as a base layer in two layer torch-on systems.

Jump to:

+44 (0)1858 410372 Website

Application

For use in loose laid and ballasted systems or as a base layer in two layer torch on systems.

For all applicable roofing systems contact manufacturer and see BBA certificate No. 15/5282.

Description

Torch-applied SBS modified bituminized cap sheet in loose laid and ballasted systems or as a base layer in two layer torch on systems.

Features and benefits:

SBS modified bituminized polyester/ fibreglass composite with a sanded surface.
Overlaps must be torched.

General information

Color	Grey
Finish	Sanded
Material	Bitumen Polyester Thermoplastic elastomer (TPE) Guidance for specification option: SBS.
Shape	Rectangle
Length	7500 mm
Width	1000 mm
Height	3.8 mm

Uniclass	Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS	J41/405 Single-layer reinforced bitumen waterproof covering J41/400 Built-up reinforced bitumen waterproof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/125 Single-layer reinforced bitumen membrane inverted roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/135 Single-layer reinforced bitumen membrane cold deck roof covering

Specification data - Reinforced bitumen roofing sheets

Standard	To BS EN 13707.
Third-party certification	BBA certificate No. 15/5282.
Performance characteristics	Visible defects: Pass; Straightness: Pass.
Material	-
Carrier material	Polyester fleece, glass yarn-reinforced.
Bitumen modification	Styrene Butadiene Styrene (SBS).
Thickness (minimum)	3.8 mm. Guidance for specification option: ±0.2 mm.
Weight (minimum)	4.1 kg/m². Guidance for specification option: ±10%.
Surface finish	-
Top	Sand.
Underside	PP release film.
Colour	Grey.

Roll length	To EN 13707, 7.5 m.
Roll width	To EN 13707, 1.0 m.
Reaction to fire	To EN 13707, Class F.
Watertightness	To EN 13707, Pass ≥ 10 kPa.
Tensile strength (Machine direction)	To EN 13707, 700 ±20% N/50mm.
Tensile strength (Cross direction)	To EN 13707, 700 ±20% N/50mm.
Elongation MD/CD	To EN 13707, 18 ±15% / 25 ±15%.
Resistance to tearing	To EN 13707, ≥ 300 N. Manufacturer guidance Resistance to tearing (nail shank).
Flexibility at low temperature	To EN 13707, ≤ -20°C.
Ageing	To EN 1296, ≤ -10 to ≥ 90°C. Guidance for specification option: Flow resistance at elevated temperature — Flexibility at low temperature. Manufacturer guidance Artificial ageing by long term exposure to elevated temperature EN 1296.
FlowResistanceRange	To EN 13707, ≥ 100°C. Manufacturer guidance At elevated temperature.
Dimensional stability	To EN 13707, ≤ 0.3%.
Water vapour resistance	To EN 13707, 20 000 μ.

Sustainability data

Material	Bitumen Polyester Thermoplastic elastomer (TPE) Guidance for specification option: SBS.
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	6.34 kg CO₂ eq/kg
