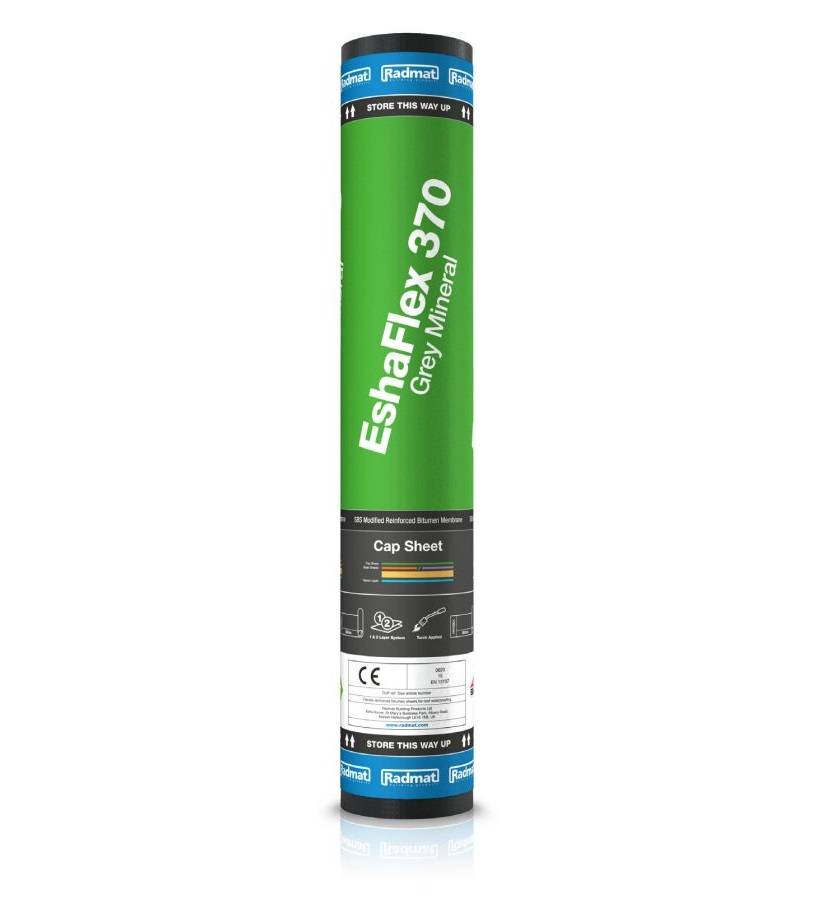

EshaFlex 370 SA Grey Mineral

Name: EshaFlex 370 SA Grey Mineral
Brand: Radmat Building Products Ltd
SKU: utwfeXiRL4pSKoFmz6JwB7

Verified by manufacturer 3 months ago

Third party certifications:

Torch-applied SBS modified bituminized polyester/ fibreglass composite cap sheet finish for use in bituminous roofing systems.

Jump to:

Application

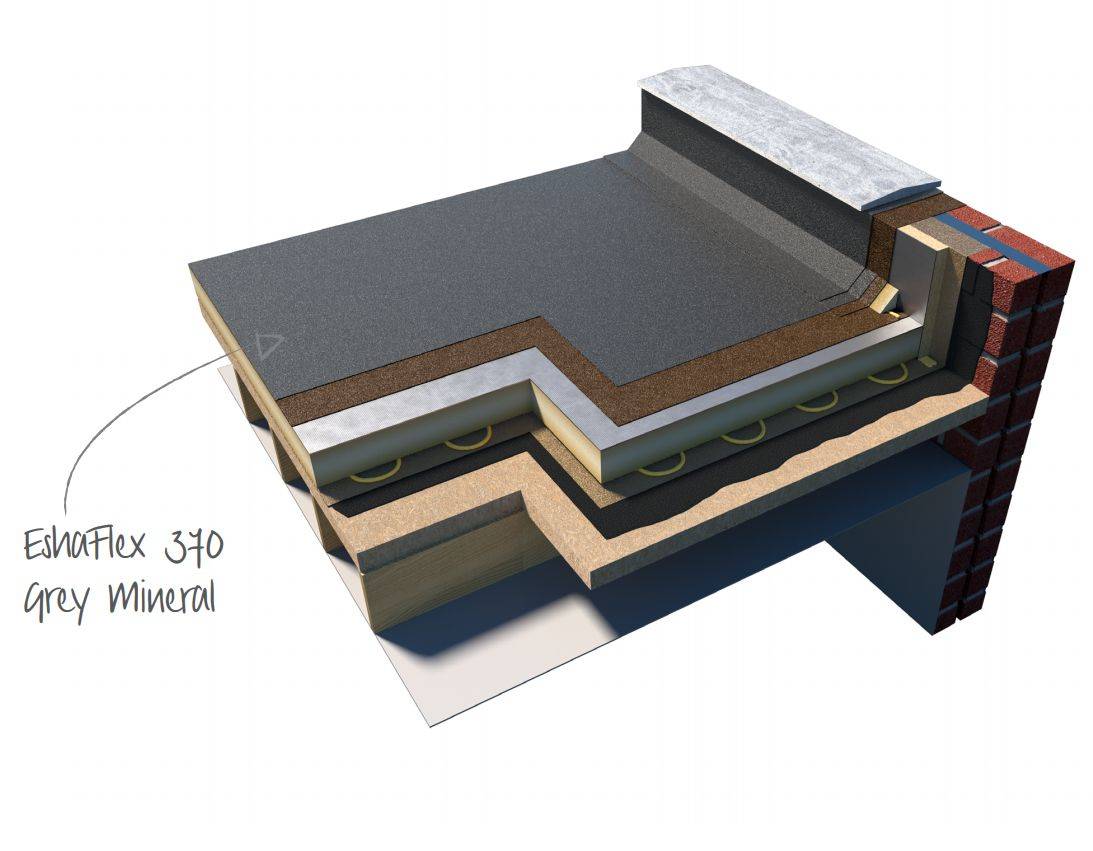

Suitable for all types of roof with a flat or sloped roof construction on new build or refurbishment.

Torch-applied SBS modified bituminized polyester/ fibreglass composite cap sheet finish for use in bituminous roofing systems.

Sheet composition:

Overlaps:

Color	Grey
Finish	- Manufacturer guidance Grey slate.
Material	Thermoplastic elastomer (TPE) Guidance for specification option: SBS. Fiber-glass
Shape	Rectangle
Length	7500 mm
Width	1000 mm

Uniclass	Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS	J41/405 Single-layer reinforced bitumen waterproof covering J41/400 Built-up reinforced bitumen waterproof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/125 Single-layer reinforced bitumen membrane inverted roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/135 Single-layer reinforced bitumen membrane cold deck roof covering

Standard	To BS EN 13707.
Performance characteristics	Visible defects: Pass; Straightness: Pass.
Material	-
Carrier material	Polyester/ fibreglass.
Bitumen modification	Styrene Butadiene Styrene (SBS).
Thickness (minimum)	4.5 mm. Guidance for specification option: ±0.2 mm.
Weight (minimum)	4.9 kg/m². Guidance for specification option: ±10%.
Surface finish	-
Top	Grey slate chippings.
Underside	Grooves and PE film.
Colour	Grey.
Third-party certification	BBA certificate No. 15/5282.

Roll length	To EN 13707, 7.5 m.
Roll width	To EN 13707, 1.0 m.
Reaction to fire	To EN 13707, class F.
Watertightness	To EN 13707, pass ≥ 10 kPa.
Tensile strength (Machine direction)	To EN 13707, 700 ± 20% N/50 mm.
Tensile strength (Cross direction)	To EN 13707, 700 ± 20% N/50 mm.
Elongation MD/CD	To EN 13707, 18 ± 15/ 25 ± 1%
Resistance to tearing	To EN 13707.
Flexibility at low temperature	To EN 13707, ≥ -20°C.
Ageing	To EN 1296, ≤ -10°C.
FlowResistanceRange	To EN 13707, ≥100°C. Manufacturer guidance Flow resistance at elevated temperature.
Dimensional stability	To EN 13707, ≤ 0.3%.
Adhesion	To EN 13707, 30%. Manufacturer guidance Adhesion of granules.
Water vapour resistance	To EN 13707, 20 000 μ.
