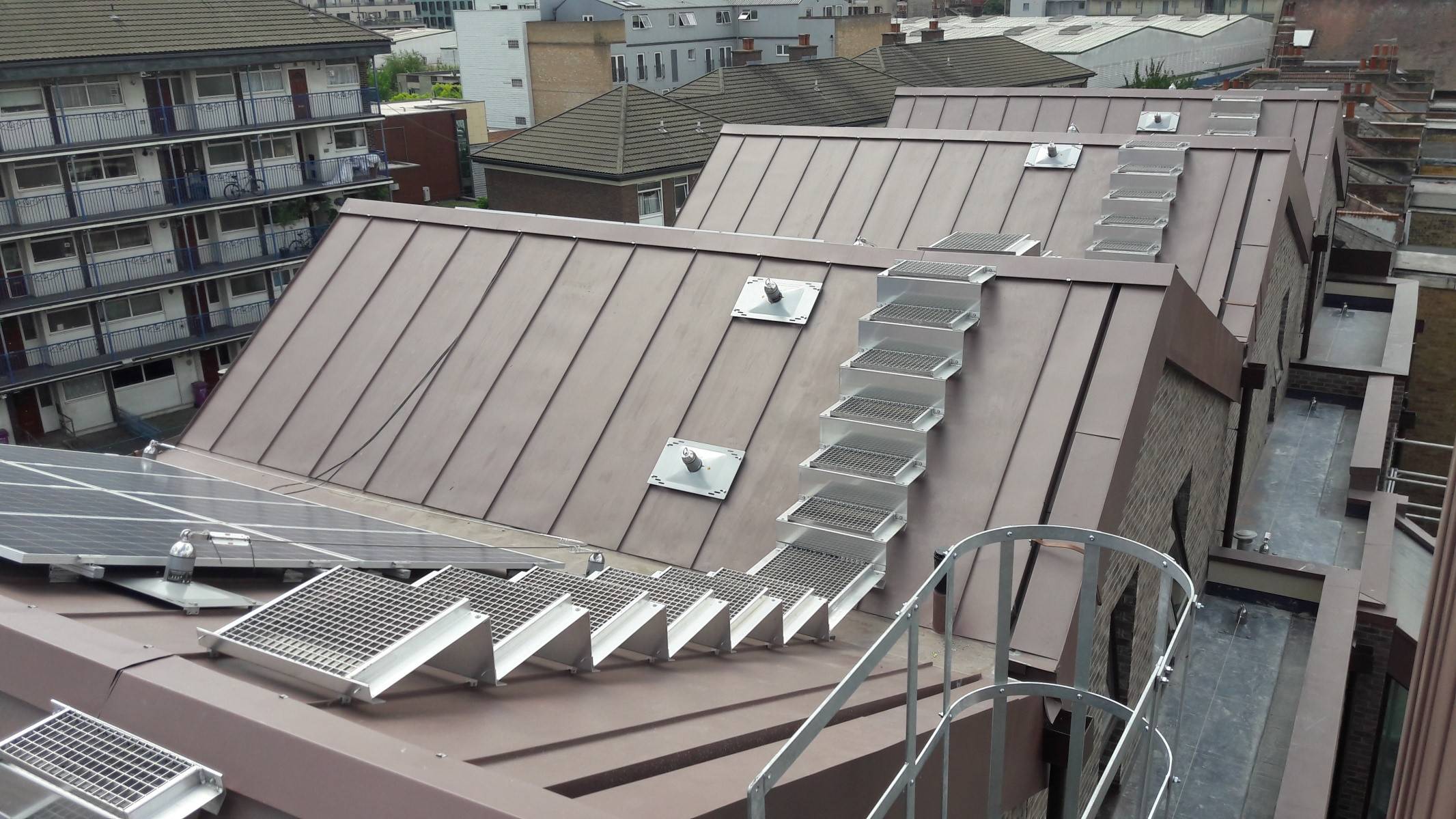

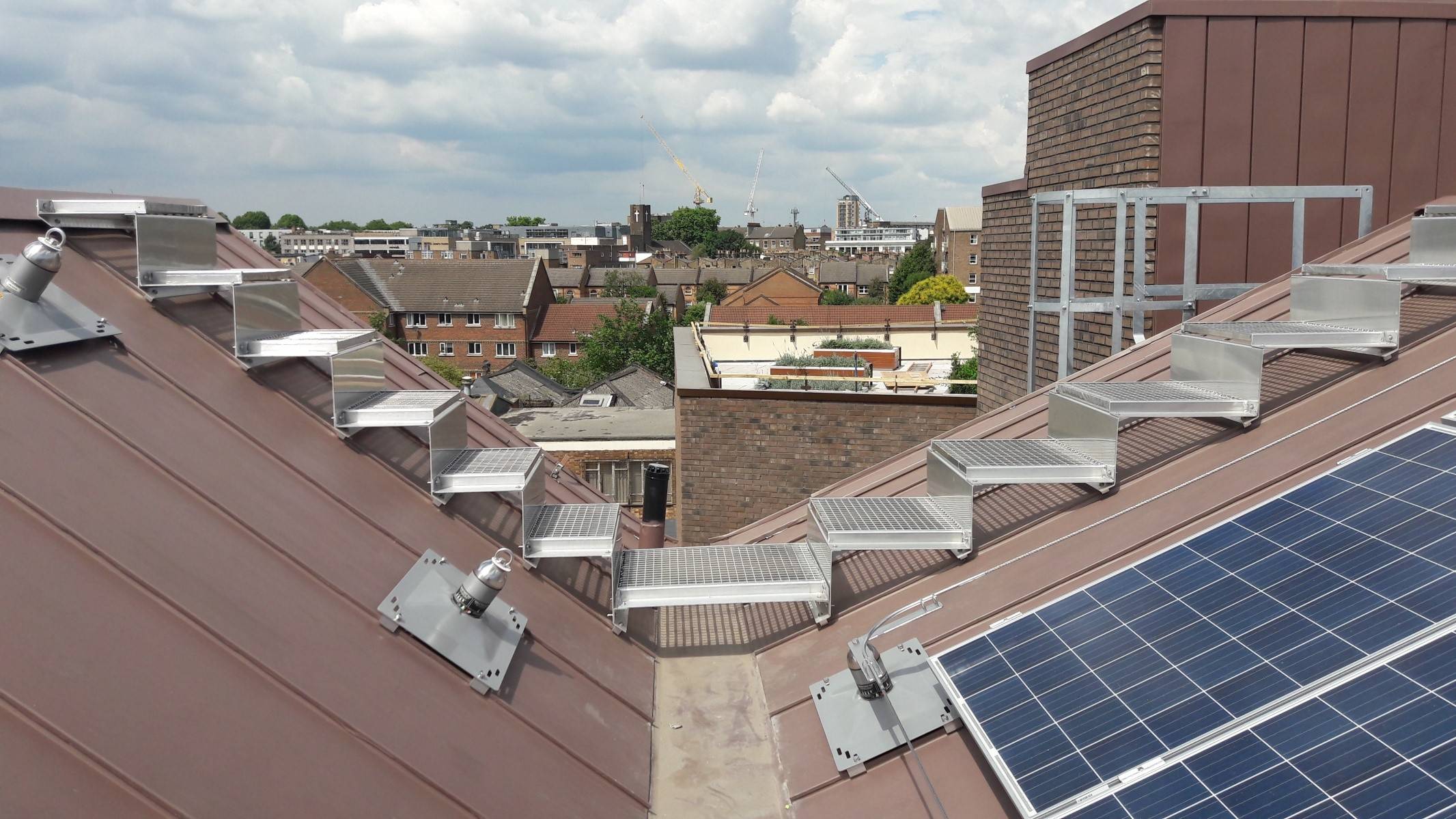

Permanently Fixed Roof Ladder System - Ascent Aluminium Walkway Steps For Roofing

Verified by manufacturer 7 days ago

Safety Fabrications Limited Third party certifications:
  • Member of UK Slip Resistance Group (UKSRG)

    Member of UK Slip Resistance Group (UKSRG)

    Certificate type

  • TUV - Safety and Quality Report

    Certificate type

Permanently fixed roof ladder system that creates an anti-slip, free-draining walking surface and can be supplied both with or without handrail. UKCA/ CE Manufactured.

Jump to:
BIM object icon
+44 (0)1142852203 Website

Application

Suitable for inclined roofs, providing anti-slip compliant steps for access on all major roofing systems.

Description

A standardized modular system for inclined roofs, allowing the design of anti-slip compliant steps for access on all major roofing systems. The walkway creates a safe access/ egress route both up and down a roof slope while the steps create a level, free-draining surface which both protects the roof from foot traffic and, where fitted with guardrail, provides collective protection to the worker. The steps are supported off the roof on proprietary fixing brackets which secure to the majority of roof coverings with a non-penetrative fixing.


Features and benefits:

  • Anti-slip.
  • Optional guardrail added to one or both sides of the walkway.
  • Configured with a handrail to withstand a loading of either 0.36 kN (general duty) or 0.74 kN (heavy duty).
  • Can be supplied with an optional toe-board if required and a range of fixing kits to suit different roof profiles.
  • UKCA/CE Manufactured.
  • Designed and tested in accordance with BS EN 516:2006 Class 1 Type C, in accordance with BS EN ISO 14122-3:2016 where a handrail is fitted, in accordance with BS 4592-0:2006+A1:2012 for loadbearing and BS 7976-2:2002+A1:2013 for anti-slip.


Components:

  • Tread.
  • Riser plate.
  • Bond adhesive pads.
  • BULB-TITE® rivets.
  • Self-drilling screws.

General information

Color

Grey

Silver

Other

Finish

Anodized

Anti-skid

Anti-slip

Powder-coated

Material

Aluminium

Warranty description

Please consult manufacturer for details of terms & conditions of warranty

20 year

Uniclass

Ss_35_10_30_60 Permanently-fixed roof ladder systemsPrimary
Ss_35_10_30/510 Custom-made fixed ladder, working platforms, walkways and industrial stair components
Ss_35_10_30_95 Working platform and walkway systems

CAWS

L30/45 Ramps/ walkways

L30/460 Walkways

L35/130 Ladder system

L35/350 Stairs

Specification data - Permanently-fixed roof ladder systems

Steps

-

Material

Aluminium.

Handrail system

Not required.

Required.

Can be configured with a handrail to withstand a loading of either 0.36 kN (general duty) or 0.74 kN (heavy duty).


Assembly connectors

Self-drilling screws and BULB-TITE® rivets.

Superstructure connectors

Insert requirements.

-

System accessories

Not required.

Aluminium toeboard.

Balustrade guarding system, one side.

Balustrade guarding system, both sides.

Step width

600 mm.

Frame section

Aluminium structural sections.

Frame fixing to superstructure

Bond adhesive pads.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8.3 kg CO₂ eq/kg

Recyclability

100

Recycled content

80 %

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

2

Revit
-

2

Third party certifications

Member of UK Slip Resistance Group (UKSRG)

Member of UK Slip Resistance Group (UKSRG)

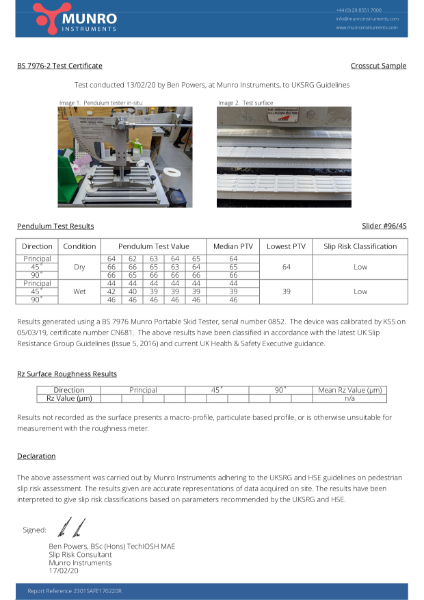

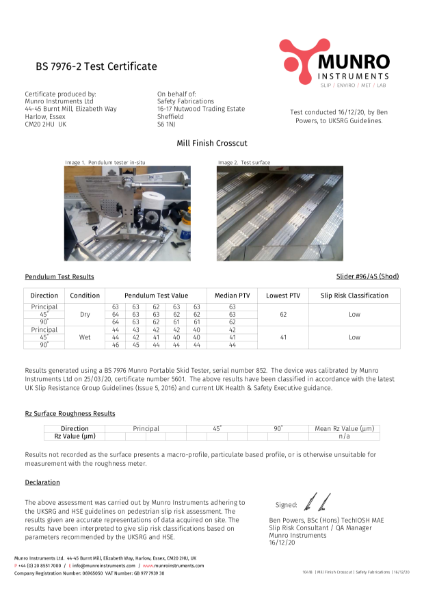

Ascent Aluminium Walkway - Mill Finish slip test

Member of UK Slip Resistance Group (UKSRG)

Member of UK Slip Resistance Group (UKSRG)

Ascent Aluminium Walkway Powder-coated finish Slip test

TUV - Safety and Quality Report

TUV - Safety and Quality Report

Factory Production Control EN 1090-1

TUV - Safety and Quality Report

TUV - Safety and Quality Report

Management System as per BS EN ISO 3834-2:2021

TUV - Safety and Quality Report

TUV - Safety and Quality Report

Management system as per: BS EN ISO 9001:2015

Literature

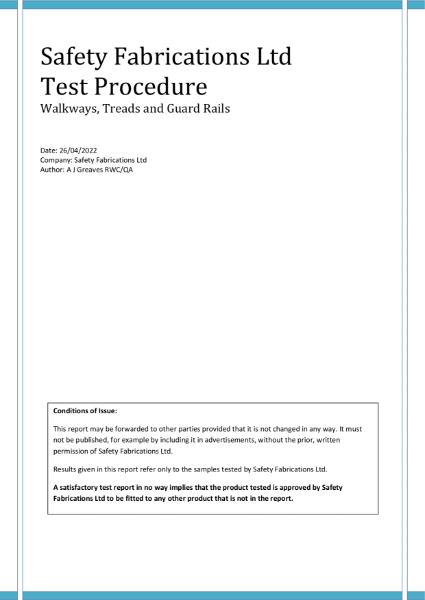

Aluminium Walkway Steps Test Report

Aluminium Walkway Steps Test Report

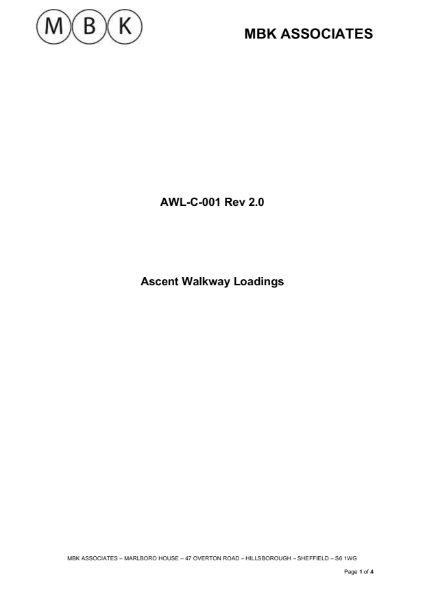

Aluminium walkway test report

Aluminium walkway test report

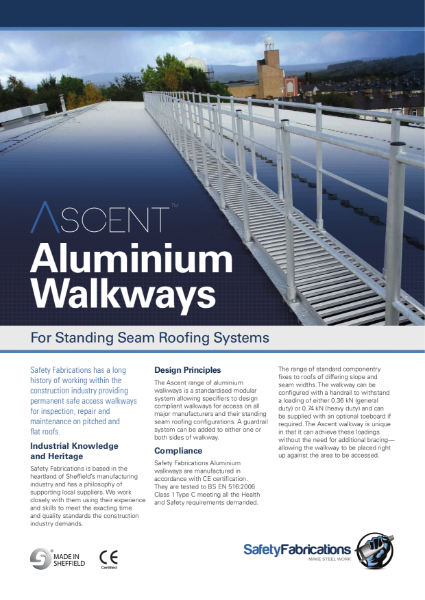

Ascent Aluminium Anti-slip Walkway for Standing Seam Roofs

Ascent Aluminium Anti-slip Walkway for Standing Seam Roofs

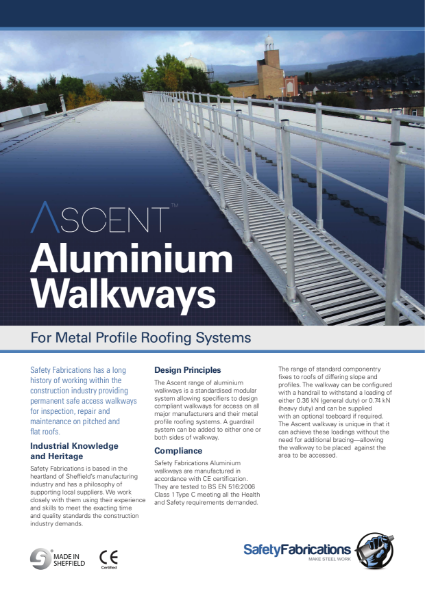

Ascent Aluminium Anti-slip Walkway for profile Roof Sheets

Ascent Aluminium Anti-slip Walkway for profile Roof Sheets

Ascent Aluminium Products Life Cycle Assessment & Durability Statement

Ascent Aluminium Products Life Cycle Assessment & Durability Statement

Case studies

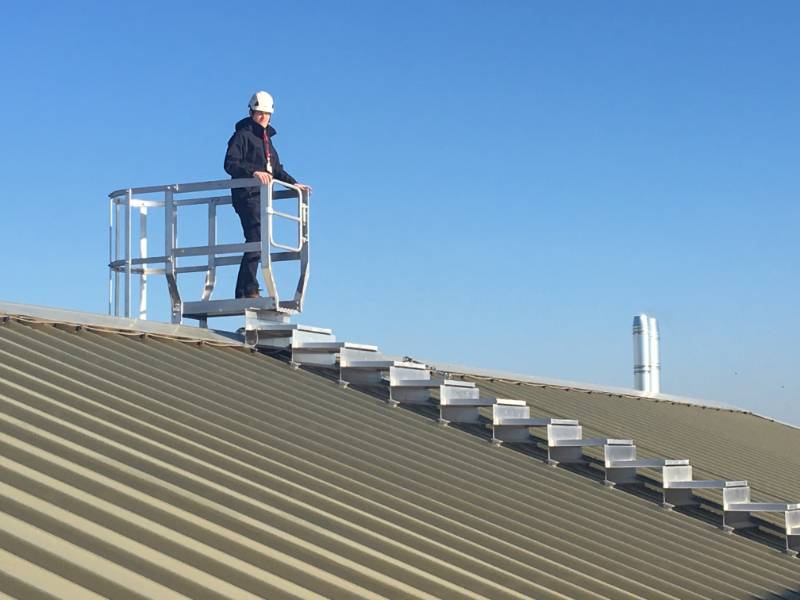

Permanently fixed roof ladder system – Ascent Aluminium Roof Steps ; Sheffield Aerospace Manufacturers.

Permanently fixed roof ladder system – Ascent Aluminium Roof Steps ; Sheffield Aerospace Manufacturers.
