Verified by manufacturer 3 months ago
Member of UK Slip Resistance Group (UKSRG)
Certificate type
TUV - Safety and Quality Report
Certificate type
Working platform and walkway system for metal profile roofs that creates a level, anti-slip, free draining walking surface, which can be supplied both with or without handrail.
Designed for metal profile roofs where safe access for personnel crossing or working on a roof surface is required. It has been engineered as a system that can fit to the majority of roof profiles.
Suitable roof covering types including:

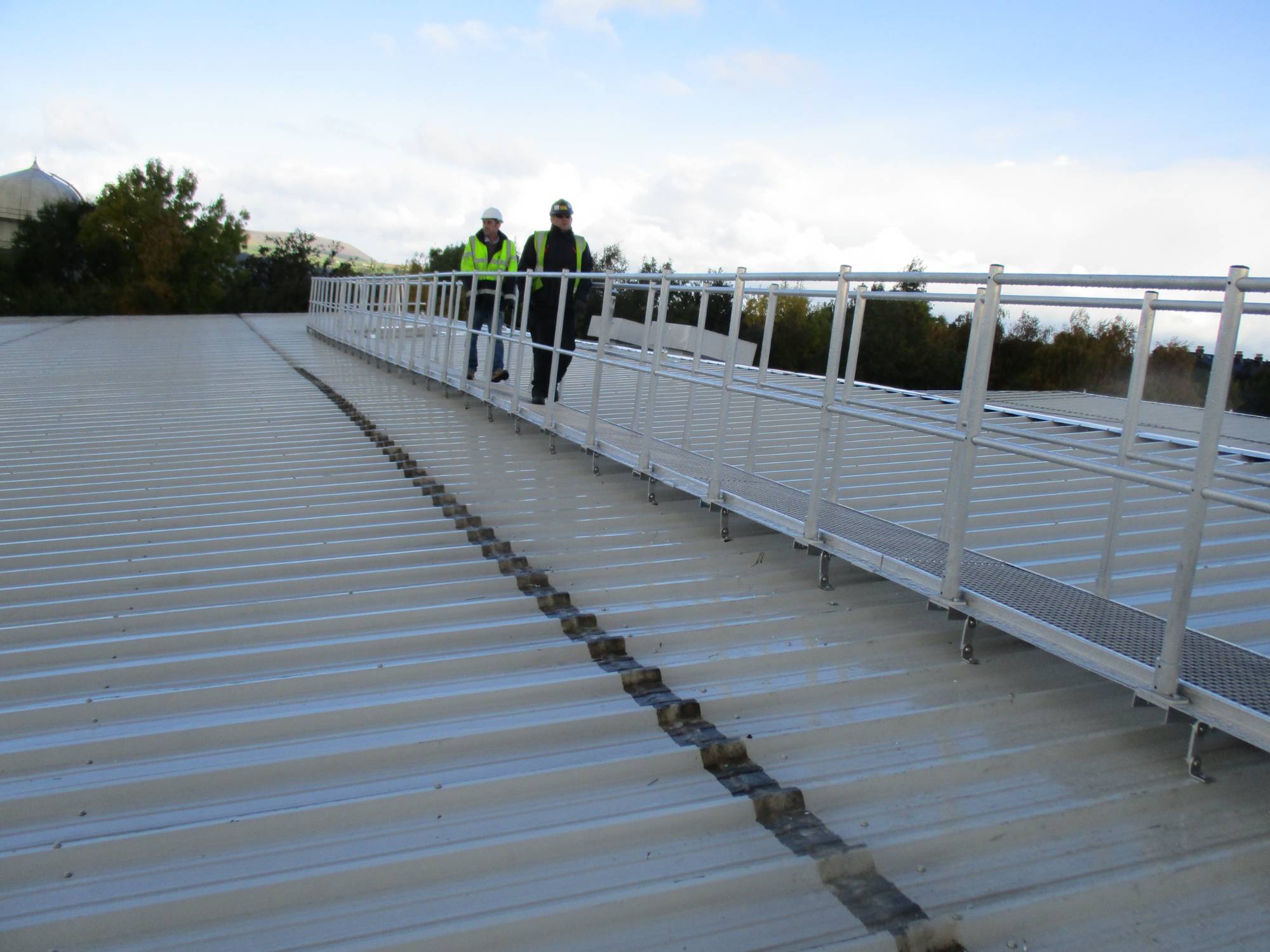

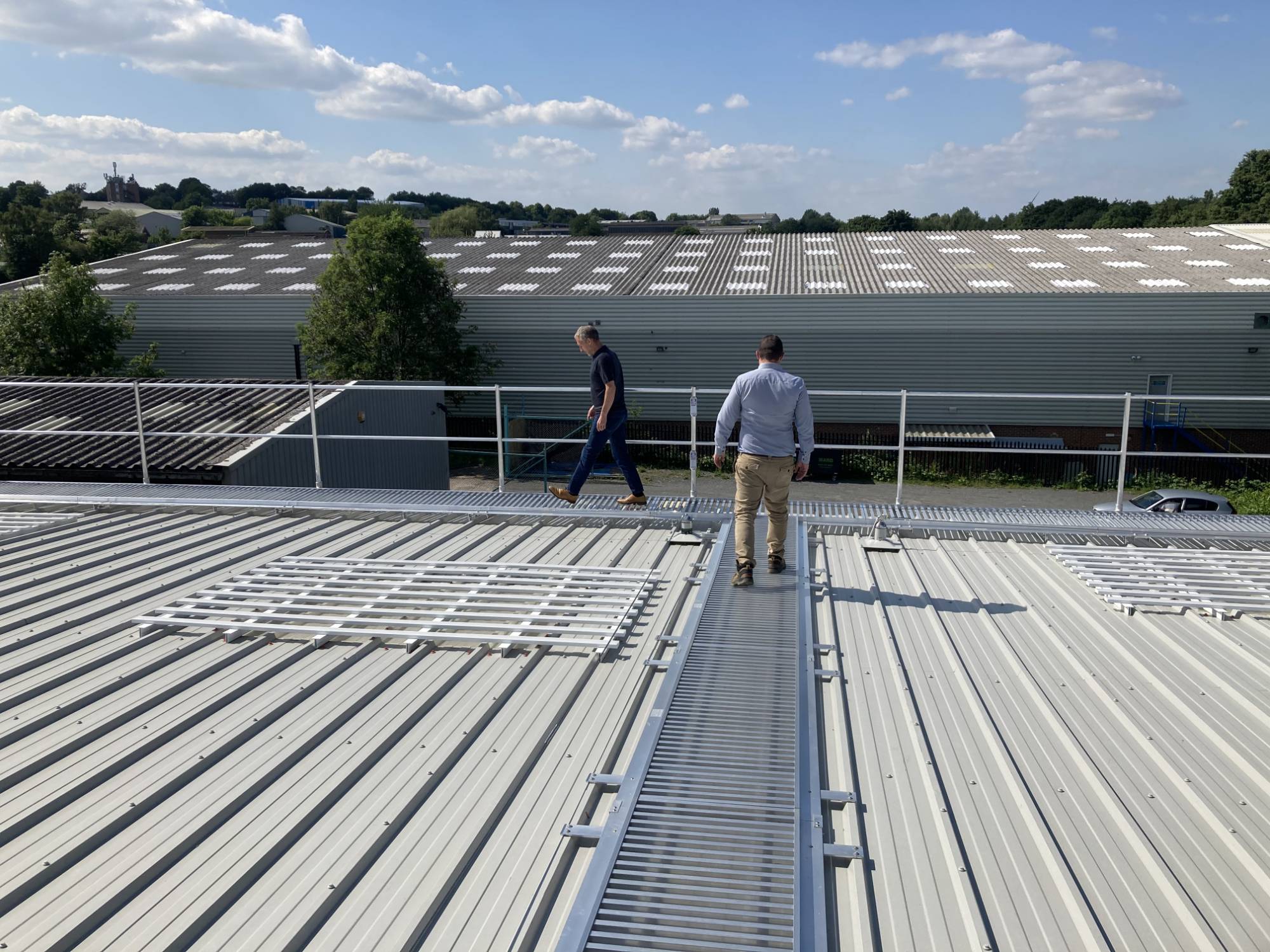

The Ascent™ aluminium walkway for metal profile roofs is a standardized, modular system allowing the design of anti-slip compliant walkways for access on all major metal profile roofing systems. The walkway is affixed to the standing seam roof via non-penetrative standing seam clamps and creates a level free-draining surface which both protects the roof from foot traffic and where fitted with guardrail, provides collective protection to the worker. The anti-slip walkway can also be stepped to suit the pitch of the roof to aid passage up a steep roof slope.
Features and benefits:
Components:
Color | Silver Grey Other |
Finish | Anti-skid Anti-slip Powder-coated Anodized |
Material | Aluminium |
Warranty descriptionconsult manufacturer for terms & conditions of warranty | 20 year |
Uniclass | |
CAWS | L35/360 Working platforms L30/45 Ramps/ walkways L30/460 Walkways L35/140 High level walkway system L35/160 Working platform system L35/340 High level walkways |
Frame | - |
Section | Aluminium structural sections. |
Fixing to superstructure | Standing seam flat top clamp. |
Decking and flooring | - |
Material | Aluminium. |
Applied anti-slip treatment | Anti-slip free draining walkway surface. |
Toe plates | Not required.Aluminium toeboard system, 100 mm.Available if required. |
Balustrade guarding system | Not required.Required, one side.Aluminium guardrail on one side of the walkway. Required, both sides.Aluminium guardrail on both sides of the walkway. |
Handrail system | Not required.Required.Configured with a handrail to withstand a loading of 0.36 kN (general duty) or 0.74 kN (heavy duty). |
Assembly connectors | Self drilling screws and bulb-tite rivets. |
Superstructure connectorsInsert requirements. | - |
System completion | All fixings to the required torque settings. |
Panel size (l x w) | 2000 x 760 mm. |
Walkway width | 600 mm walkable area. |
Roof type | Metal profile. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 8.3 kg CO₂ eq/kg |
Recyclability | 100 |
Recycled content | 85 % |
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
Platform | Compatible | Version |
---|---|---|
![]() | - | 2 |
![]() | - | 2 |
Member of UK Slip Resistance Group (UKSRG)
Ascent Aluminium Walkway - Mill Finish slip test
Member of UK Slip Resistance Group (UKSRG)
Ascent Aluminium Walkway Powder-coated finish Slip test
TUV - Safety and Quality Report
Factory Production Control EN 1090-1
TUV - Safety and Quality Report
Management System as per BS EN ISO 3834-2:2021
TUV - Safety and Quality Report
Management system as per: BS EN ISO 9001:2015
