Working Platform And Walkway System - Ascent Aluminium Walkway For Flat / Single Ply Membrane Roofs

Name: Working Platform And Walkway System - Ascent Aluminium Walkway For Flat / Single Ply Membrane Roofs
Brand: Safety Fabrications Limited
SKU: 6QB4NZbgyxspouqJbFgbxQ

Verified by manufacturer 3 months ago

Safety Fabrications Limited

Third party certifications:

Member of UK Slip Resistance Group (UKSRG)
Certificate type
TUV - Safety and Quality Report
Certificate type

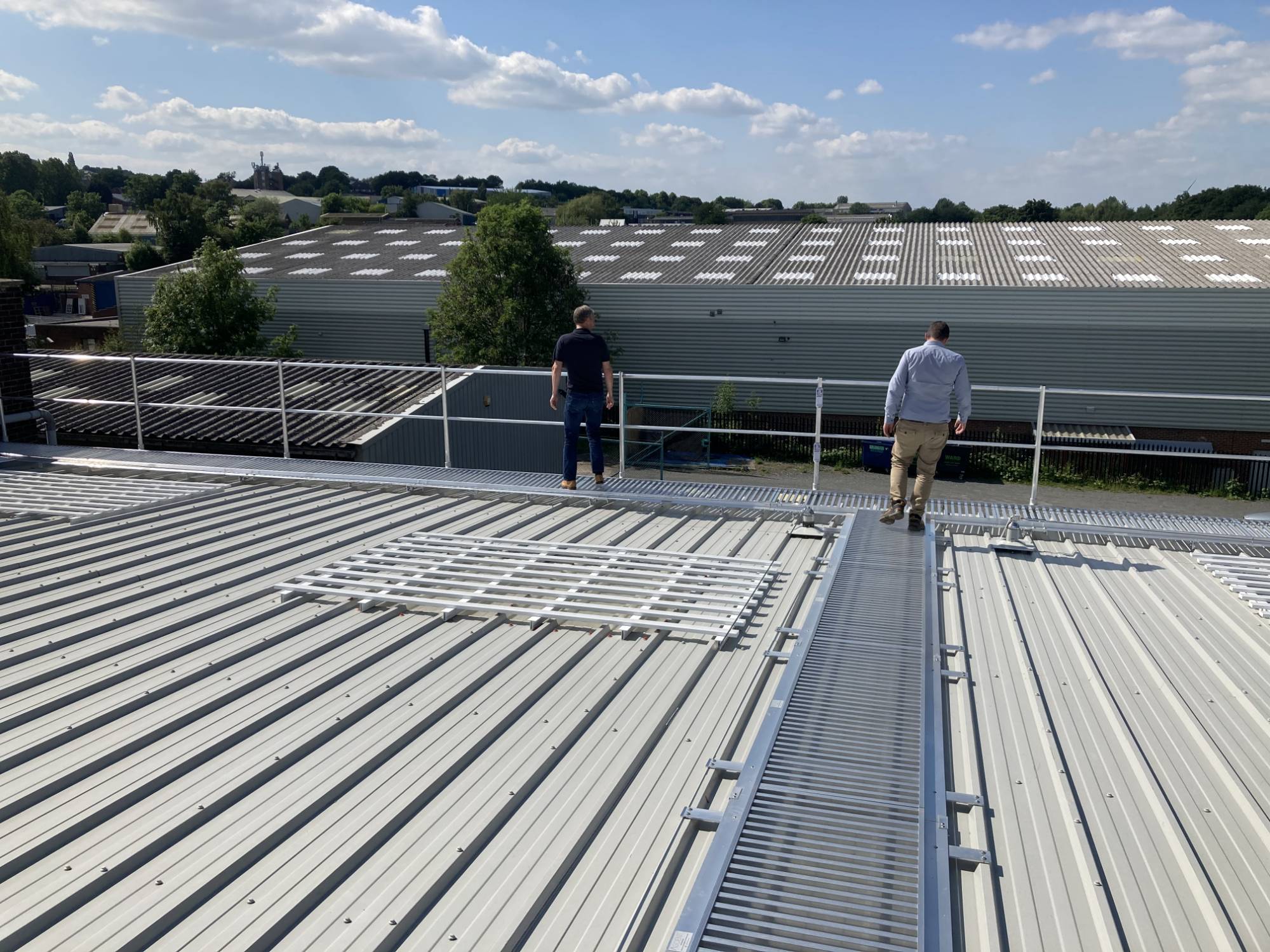

Working platform and walkway system for flat roofs that creates a level, anti-slip, free-draining walking surface, which can be supplied both with or without handrail.

Jump to:

BOS

+44 (0)1142852203 Website

Application

Designed for flat roof applications where safe access for personnel crossing or working on a roof surface is required. It has been engineered as a system that can fit to the majority of roof profiles.

Suitable roof covering types including:

Standing seam.
Composite panel.
Secret fix roofing.
Built-up on site metal roofing.
Single ply membrane.

Description

The Ascent™ aluminium walkway for flat roofs is a standardized modular system, allowing the design of anti-slip compliant walkways for access on all major roofing systems. A guardrail system can be added to either one or both sides of walkway. The Ascent walkway creates a level anti-slip walking surface which both protects the roof from foot traffic, and where a guardrail is fitted, it provides collective protection to workers.

Features and benefits:

Anti-slip and level free draining walking surface.
Can be supplied with or without handrails.
Creates safe access.
Supported off the roof on non-penetrative recycled rubber support feet.
Can be added to one or both sides of a walkway.
UKCA/ CE Manufactured.
Tested to BS EN 516:2006, Class 1, Type C meeting all health and safety requirements.

Components:

Walkway panel: Aluminium grillage, open beam 34.10/25 walkway system – 2000 x 600 mm, mill finish.
Levelling components: Ascent aluminium levelling components.
Framework: Aluminium grillage, open beam 34.10/25 walkway – 2000 x 600 mm, mill finish.
Handrail: Aluminium top rail, mid rail, uprights, plastic end caps and top caps.
Fixing: Freestanding non-penetrative rubber foot.

General information

Color	Grey Silver Other
Finish	Anodized Anti-skid Anti-slip Powder-coated
Material	Aluminium
Warranty description	20 year Manufacturer guidance Please contact manufacturer for full warranty Terms & conditions

Uniclass	Ss_35_10_30_95 Working platform and walkway systemsPrimary
CAWS	L30/45 Ramps/ walkways L35/340 High level walkways

Specification data - Working platform and walkway systems

Frame	-
Section	Aluminium structural sections.
Fixing to superstructure	- Manufacturer guidance Insert requirements.
Decking and flooring	-
Material	Aluminium gratings.
Applied anti-slip treatment	Anti-slip free draining walkway surface.
Toe plates	Not required. Aluminium toeboard system, 100 mm. Guidance for specification option: Available if required.
Balustrade guarding system	Not required. Required, one side. Guidance for specification option: Aluminium guardrail on one side of the walkway. Required, both sides. Guidance for specification option: Aluminium guardrail on both sides of the walkway.
Handrail system	Not required. Required. Guidance for specification option: Configured with a handrail to withstand a loading of 0.36 kN (general duty) or 0.74 kN (heavy duty).
Assembly connectors	Self drilling screws.
Superstructure connectors	- Manufacturer guidance Insert requirements or omit.
System completion	All fixings to the required torque settings.

Panel size (l x w)	2000 x 760 mm.
Walkway width	600 mm walkable area.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	8.3 kg CO₂ eq/kg Self declared
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	85 %
