Pendock Radius - PLY-SQ – Plywood Square Column Casings - Square Column Casings

Verified by manufacturer 5 months ago

CH Column Casing Systems

Pendock Variant:
Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Pre-formed square and rectangular plywood column casings to conceal interior columns and structural steelwork.

Jump to:
+44 (0)1952 580 590 Website

Application

For interior column casing applications only.

Description

Manufactured from 8 mm thick pre-formed plywood, Pendock Radius square and rectangular column casings are designed to provide effective, durable and versatile solutions for concealing interior columns and other structural elements.


Whilst the standard range of square casings are available from 250 mm up to 1000 mm, as well as bespoke sizes, they can also be manufactured as rectangular profiles by using matching or contrasting extension panels to meet specific project dimensions or specifications. Up to 3000 mm can be supplied in a single length and can be stacked to reach increased heights.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

Various laminated and wood veneer finishes can be specified to suit project requirements.

Finish

Laminated

Veneered

Material

Plywood

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_90_43_66 Preformed casingsPrimary

CAWS

P20/170 Proprietary

P20/30 Proprietary

Specification data - Preformed casings

Material

Plywood.

Finish as delivered

High pressure laminate.

Laminate veneer.

White melamine.

Colour

White.

Profile

Half channel.

Length

2500 mm.

3000 mm.

Accessories

None.

Inner collar.

Guidance for specification option:

For head and skirting if required and for jointing application.

J2 joint.

Guidance for specification option:

PVC-U with black shadow gap.

J3 joint.

Guidance for specification option:

Aluminium extrusion with laminate insert on laminated column casings.

J5 joint.

Guidance for specification option:

Laminated lipped joints on laminated column casings only.

Thickness

8 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

United Kingdom

Recyclability

Wood is one of the easiest materials to recycle and can be used for a wide variety of things. Popular uses for recycled wood include building materials, paper production, and animal bedding. Arguably the most common use for recycled wood is as fuel.

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

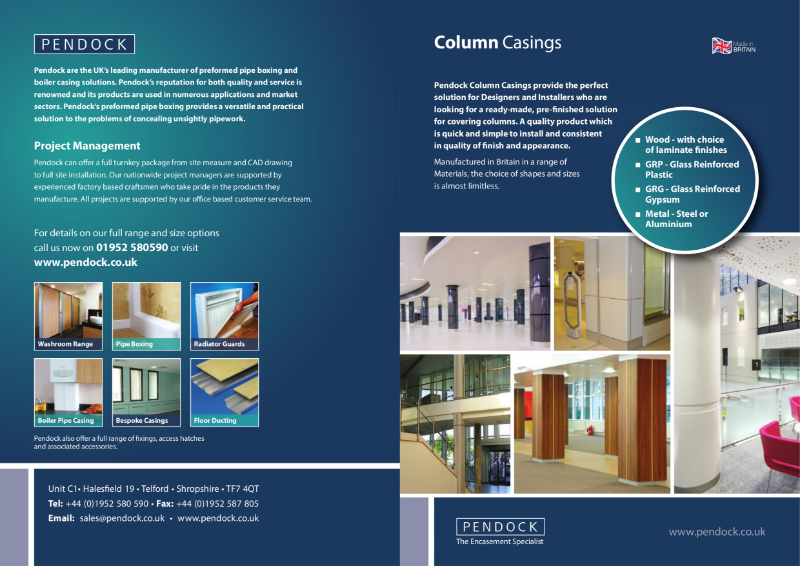

Pendock Column Casings

Pendock Column Casings

Pendock Architectural Products - Overview Brochure

Pendock Architectural Products - Overview Brochure

Case studies

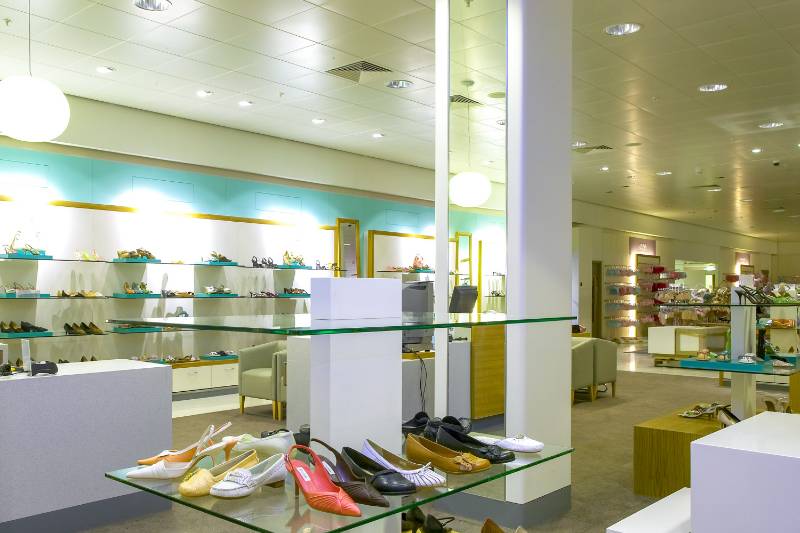

John Lewis goes shopping for Pendock column casings

John Lewis goes shopping for Pendock column casings

Pendock’s bespoke casings for Royal Hallamshire Hospital

Pendock’s bespoke casings for Royal Hallamshire Hospital
