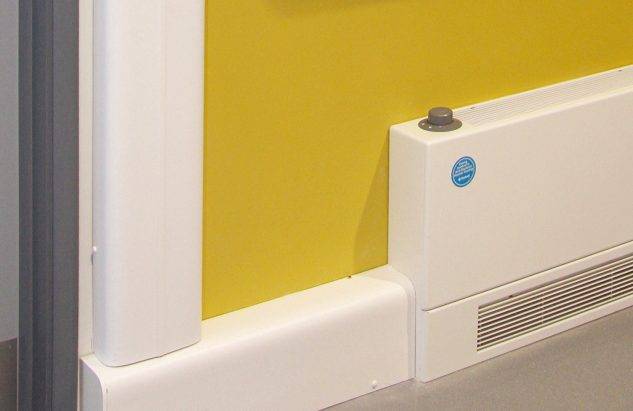

Pendock Profiles - Casings for Services - CH Plywood Casing Systems - Channel Plywood Boxing

Name: Pendock Profiles - Casings for Services - CH Plywood Casing Systems - Channel Plywood Boxing
Brand: Pendock
SKU: snYqLpJ6JVo4KPWkZewn5f

Verified by manufacturer 5 months ago

Pendock

Third party certifications:

Constructionline Gold
Certificate type

Plywood pipework casing - Mid wall application.

Jump to:

+44 (0)1952 580 590 Website

Application

Suitable for mid-wall applications, vertically or horizontally. For covering and protecting larger diameter pipework, including heating services, soil and vent pipework, rainwater pipes and heat recovery ducting.

Description

Enclosures are supplied either as pre-finished components fitted with assembly joints to facilitate site installation or, where appropriate, as single units. The enclosures are available to individual size requirements, based on a pair of angle casings (MX range) with an additional flat front section and/ or additional flat side sections.

Features and benefits:

A range of factory-assembled joints are available (J8, J2, J3, J4 and J5).
All profiles are 90° angles, with radiused corners.
Internal radius is 21.5 mm.

General information

Finish	Laminated Veneered
Material	Plywood
Shape	Square Rectangle
Length	3000 mm
Width	Bespoke
Height	Bespoke

Uniclass	Pr_35_90_43_66 Preformed casingsPrimary
CAWS	P20/170 Proprietary P20/30 Proprietary

Specification data - Preformed casings

Material	Plywood.
Finish as delivered	Laminate. Guidance for specification option: No visible joints. Laminate veneer. Guidance for specification option: No visible joints. White melamine. Guidance for specification option: Durable, with a visible plastic joint in the face.
Profile	U-shape.
Size	- Manufacturer guidance Insert requirements.

Accessories	None. Aluminium extrusion and decorative insert (top hat), ref: J3. Factory fitted edge shadow gaps. Guidance for specification option: Black finish for use with black screws, to provide discreet fixing location and material for scribing. Plastic H joint. Guidance for specification option: To join lengths together where over 3000 mm long. Sealed laminate joint, ref: J4.
Length	2500 mm. Guidance for specification option: Greater lengths can be achieved using an inner collar to link two sections. 3000 mm.
Leg length	Guidance for specification option: 65 mm (minumum).
Width	Guidance for specification option: 125 mm (minimum).
Fixing	Standard. Guidance for specification option: Location: Face fixed to softwood battens using manufacturer's fixings. Type: Black screws. Zinc screws with decorative caps and collars. Position: 50 mm from each end and equally spaced along the profile at approximately 600 mm centres. Provide extra fixings where necessary to uneven walls. For edge shadow gap components. Guidance for specification option: Edge shadow gap fixing type: Black screws. Position: In black recessed section, positioned 50 mm from each end and equally spaced along the profile at approximately 600 mm centres.

Sustainability data

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	United Kingdom
Recyclability	Even before we adopted the EU timber Regulations (EUTR) in 2013, we were using FSC® certified and sustainably sourced materials in our plywood product ranges. Since Brexit and the transition to the UK Timber Regulations (UKTR), which came into force in 2021, we have implemented UKTR as our default compliance procedure. As a result, all timbers used in the manufacture of our products are legally & sustainably sourced and are compliant with UKTR requirements.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	95 %
