Pendock Radius - MET-SQ – Metal Square Column Casings. - Metal Square Column Casings

Name: Pendock Radius - MET-SQ – Metal Square Column Casings. - Metal Square Column Casings
Brand: Pendock
SKU: hoTLW4UYJKAdrELpQmhc5L

Verified by manufacturer 1 month ago

Pendock

Third party certifications:

Constructionline Gold
Certificate type

Metal column casings - square and rectangular.

Jump to:

+44 (0)1952 580 590 Website

Application

Concealing structural steelwork and support columns in both interior and exterior applications.

Description

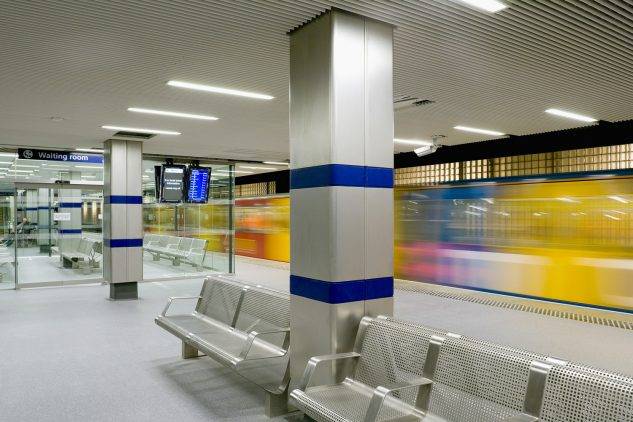

Pendock Radius square metal column casings are designed for use in both exterior and interior projects requiring a versatile and decorative solution to conceal structural steelwork.

Available in standard sizes ranging from 250 x 250 mm up to 1000 x 1000 mm, the casings can be manufactured from aluminium or stainless steel with material thicknesses of 2 mm and 3 mm respectively. They can also be specified in bespoke sizes and as rectangular shapes.

All casings can be manufactured and supplied in a single length up to 4000 mm and can also be stacked to reach greater heights. Additional options can be specified, which include internal acoustic foam lining, decorative feature joints and recessed head and skirting collars.

A wide range of finishes can be specified dependent on material, including PPC, textured, brushed, polished or patterned finishes, such as Rimex.

General information

Color	Beige Black Blue Bronze Cream Green Grey Ivory Silver White Other Show more
Finish	Powder-coated Polished Brushed Textured
Material	Aluminium Stainless steel
Shape	Square Rectangle Hexagon Octagon Other
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_35_90_43_66 Preformed casingsPrimary
CAWS	P20/30 Proprietary P20/170 Proprietary

SKU Code	MET-SQ

Specification data - Preformed casings

Material	Aluminium. Stainless steel.
Finish as delivered	Powder coated. Textured. Brushed. Polished. Patterned. Guidance for specification option: Patterned finishes, such as Rimex.
Colour	Beige. Black. Blue. Bronze Cream. Green. Grey. Ivory. Silver. White. Other. Guidance for specification option: Insert requirements.
Size	- Manufacturer guidance Available in standard sizes ranging from 250 x 250 mm up to 1000 x 1000 mm, consult manufacturer and insert requirements.

Thickness	2 mm. 3 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aluminium Stainless steel
Recyclability	Recycle, re-purpose & re-use Another key material that we use widely in the manufacture of several of our products is aluminium. Its corrosion-resistant properties, comparatively low weight, when compared to other metals used in construction, and its ability to be specified with a range of finishes make it a popular solution. Coupled to this, is the fact that it is one of the world’s most recycled and recyclable materials. To underline this capability, it has been calculated that around 75% of all aluminium produced since the late 1800s is still in use today. Also, the re-melting of aluminium requires only 5% of the energy needed for primary production, according to various bodies, including Council for Aluminium in Building (CAB), the International Aluminium Institute (AIA) and The Aluminium Federation (ALFED). Manufacturer guidance Manufactured from aluminium which is very easy to recycle.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	99 %
