Pendock Linea - Building Linings - Perimeter Casings

Verified by manufacturer 5 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

HVAC casings for interior use around the perimeter of a room.

Jump to:
+44 (0)1952 580 590 Website

Application

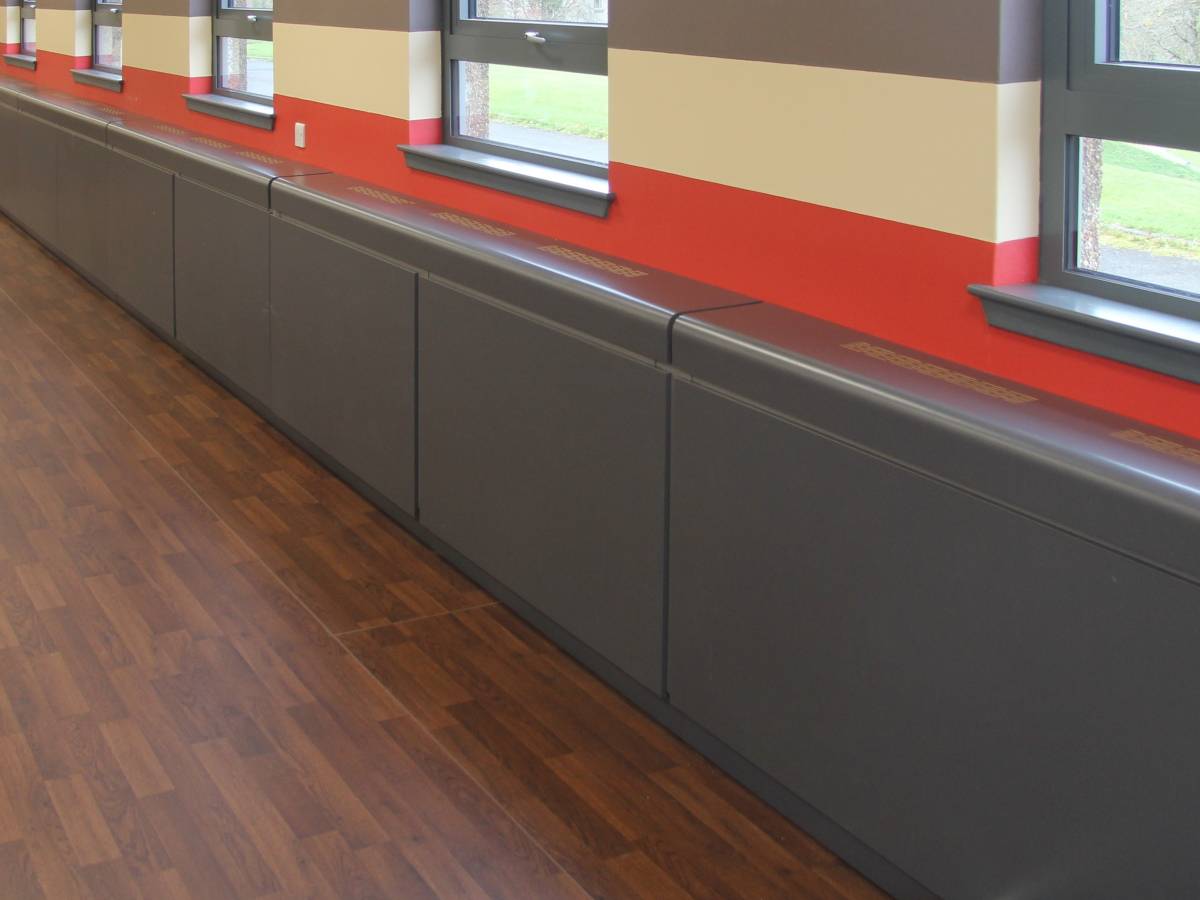

Designed to provide floor to window sill casings to cover virtually all perimeter heat emitters and air conditioning units.

Description

A versatile solution for concealing a wide range of building services and HVAC units located around the periphery of individual rooms or larger spaces within commercial interiors.


Manufactured from pre-formed plywood with a hard-wearing laminated finish, the casings can be designed for long continuous runs or to fit in bays between columns.


Every system is manufactured to individual project requirements and the casings are available in a wide selection of finishes to integrate or contrast with a building’s interior.

General information

Color

Other

Guidance for specification option:

Wide range of colours and finishes available.

Finish

Laminated

Veneered

Powder-coated

Material

Plywood

Aluminium

Medium density fibreboard (MDF)

Shape

Rectangle

Square

Other

Length

Bespoke

Guidance for specification option:

Up to 4 m in a single length (dependent upon material and finish required).

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_90_43_66 Preformed casingsPrimary

CAWS

P20/170 Proprietary

P20/30 Proprietary

Specification data - Preformed casings

Material

Plywood, timber based composite and metal.

Guidance for specification option:

Sill material:

Sill components are produced in 12 mm preformed plywood.

Main flat panels:

Manufactured from an appropriate timber-based

composite substrate, lipped and balanced where appropriate, to achieve the required thickness to match the sill component. The removable panel facilitates continuous access to services.

Finish as delivered

Laminate.

Laminate veneer.

Colour

-

Manufacturer guidance

Consult manufacturer for availability of colours and samples; insert requirements.

Profile

Flat top.

Sloping top.

Size

-

Manufacturer guidance

Bespoke, insert requirements.

  • Flat sill section: Complete with standard plinth/ kickboard skirting.
  • Standard sill depth: 600 mm (minimum: 75 mm).
  • Overall height: Variable.
  • Standard length: 2500 mm.

Grille

Not required.

Aluminium linear grille.

Polyester powder-coated linear grille.

Manufacturer guidance

Available in various standard sizes, increasing in 50 mm increments from 60 x 200 mm to 280 x 3000 mm (w x l).

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

United Kingdom

Recyclability

Wood is one of the easiest materials to recycle and can be used for a wide variety of things. Popular uses for recycled wood include building materials, paper production, and animal bedding. Arguably the most common use for recycled wood is as fuel.

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

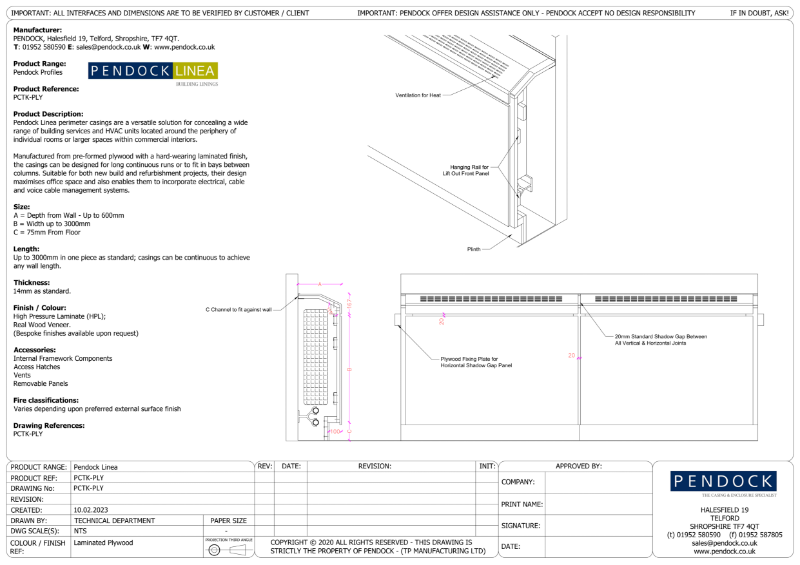

Pendock Linea - Building Linings - Perimeter Casings Ply Sloping

Pendock Linea - Building Linings - Perimeter Casings Ply Sloping

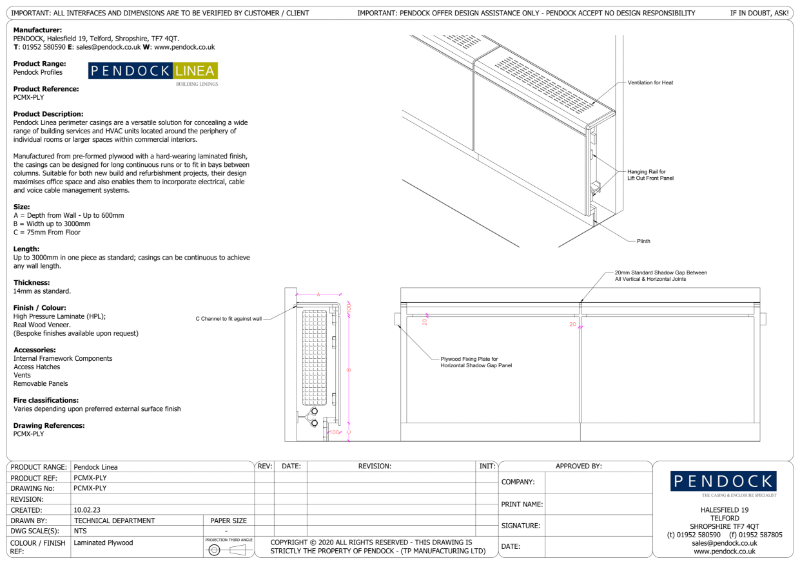

Pendock Linea - Building Linings - Perimeter Casings Ply Flat

Pendock Linea - Building Linings - Perimeter Casings Ply Flat

Pendock Linea - Building Linings - Perimeter Casings Metal Sloping

Pendock Linea - Building Linings - Perimeter Casings Metal Sloping

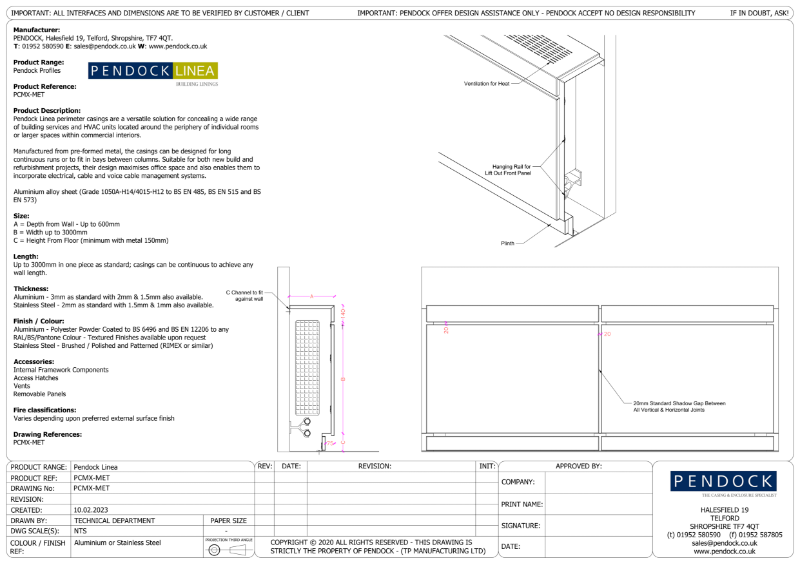

Pendock Linea - Building Linings - Perimeter Casings Metal Flat
