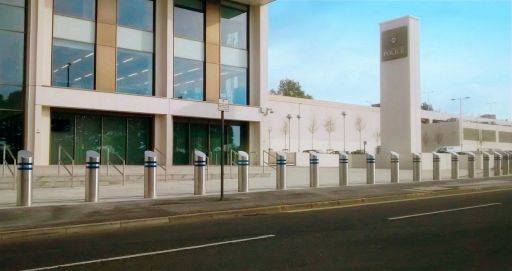

PAS 68 Static Terra Venus Bollard (Shallow Depth) - 7.5t at 30mph - Anti-Terrorist Shallow Bollard
Verified by manufacturer 3 months ago
Secured By Design
Certificate type
Static Terra Venus Bollard (Shallow Depth). Impact rated
Application
Suitable for high-security sites where there is limited foundation depth (typically inner city); however a complete HVM Perimeter is required. Also, public realm, crowded places and/or pedestrianized areas where vehicles are not permitted. Shallow Static HVM Bollards are also used between automatic HVM products to ensure the installation meets PAS 69 installation guidance of 1.2 m maximum distance between upright faces.
Description
The Shallow Static Terra Venus Bollard is an HVM Terra bollard that has been impact tested to the British PAS 68 Specification, stopping a 7.5-tonne vehicle travelling at 30 mph. PAS 68 Classification Code: V/7500[N2]/48/90:3.3/0.0. Impact tested in a set of three bollards. A range of sleeves finishes and tops also available. Static HVM Terra bollards have been proven to stop vehicles, providing HVM (hostile vehicle mitigation), counter-terrorist, impact-resistant barriers preventing vehicle as a weapon attacks.
Features and benefits:
- All made to order.
- Secured by Design and PSSA verified product.
- Listed on the CPNI List of IWA 14 and PAS 68 products.
- Shallow embedment depth (300 mm).
General information
Finish | Painted Guidance for specification option: Insert RAL colour requirement. |
Material | Steel Guidance for specification option: Core: Mild (carbon) steel. Stainless steel Guidance for specification option: Stainless steel sleeves. |
Shape | Other |
Length | 0 mm |
Width | 219 mm |
Height | 1000 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/190 Bollards Q50/30 Street furniture |
Specification data - Carbon steel bollards
Standard | In accordance with PAS 68. |
Dimensions | |
Size and profile | 219 mm diameter. |
Height | 1000 mm. |
Length below ground | 300 mm. |
Post top | Flat.Mitre.Semi-domed. |
Post base | Rebar. |
Finishes | |
Worked finish | Painted. |
Applied finish | Powder coated. |
Colour | Manufacturer guidanceInsert RAL colour requirement. |
Accessories | Not required.Decorative sleeve. |
Sleeve | Stainless Steel 1.4303 (308) grade. Stainless Steel 1.4401 (316) grade. Stainless steel bead blasted. |
Reflective banding | None. Recessed/ Surface. Single/ Double. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 1 |
 IFC | IFC2X3 | 1 |
Third party certifications
Secured By Design
Secured by Design accredited
Literature

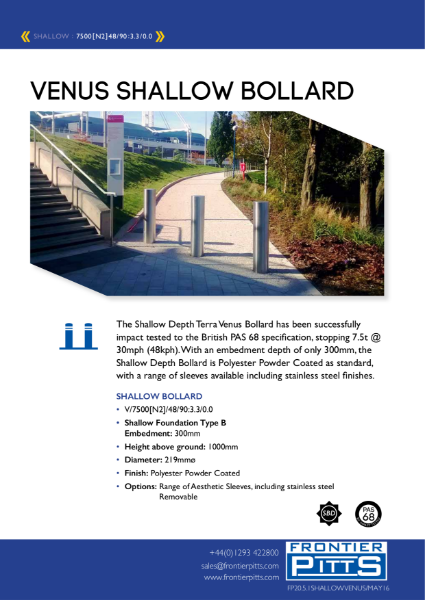

PAS 68 Shallow Depth Static Terra Venus Bollards
