IWA 14 HVM Ultra Shallow Terra Lunar Bridge Bollard – 7.2t at 30 mph - Static HVM Bollard

Name: IWA 14 HVM Ultra Shallow Terra Lunar Bridge Bollard – 7.2t at 30 mph - Static HVM Bollard
Brand: Frontier Pitts Ltd
SKU: kYuikhAnpZXxJpqUggYTcd

Verified by manufacturer 3 months ago

Frontier Pitts Ltd

Third party certifications:

Secured By Design
Certificate type

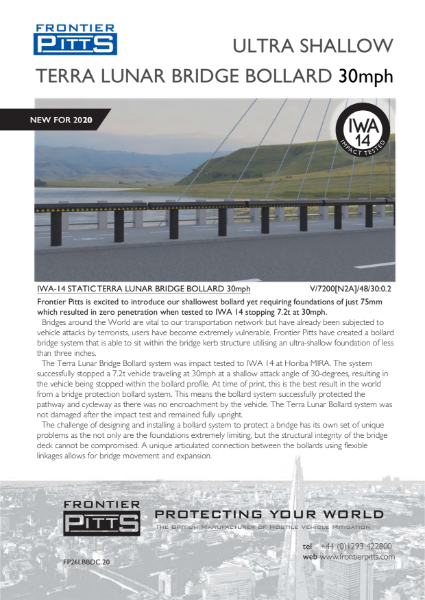

IWA 14 HVM Ultra Shallow Terra Lunar Bridge Bollard – 7.2t at 30mph, 30 degree impact. Impact rated

Jump to:

+44 (0)1293 548301 Website

Application

Suitable for high security sites such as bridges where there is ultra- shallow foundation depth (typically inner city), however a complete HVM Perimeter is required. Also, public realm, crowded places and/or pedestrianized areas where vehicles are not permitted. Shallow Static HVM Bollards are also used between automatic HVM products to ensure the installation meets IWA14-2 and PAS 69 installation guidance of 1.2 m maximum distance between upright faces.

Description

HVM Terra Bollard which has been impact tested to the International IWA14 Specification, stopping a 7.2 tonne vehicle travelling at 30 mph.

Features and benefits:

Have been proven to stop vehicles.
HVM (Hostile Vehicle Mitigation), counter terrorist, impact-resistant barriers preventing Vehicle as a Weapon attacks.
All made to order.
A PSSA Verified Product, Secured by Design and are listed on the CPNI List of IWA 14 and PAS 68 products.
Has been successfully impact tested resulting in a classification code of V/7200[N2A]/48/30:0.6.

General information

Color	- Manufacturer guidance Insert RAL requirement.
Finish	Powder-coated Guidance for specification option: Shot blasted, hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.
Material	Steel Guidance for specification option: Core: Mild (carbon) steel.
Width	219 mm
Height	1000 mm
Warranty description	One year

Uniclass	Pr_20_76_08_10 Carbon steel bollardsPrimary
CAWS	Q50/190 Bollards Q50/30 Street furniture

Product range	Anti Terra HVM (Hostile Vehicle Mitigation) IWA14 & PAS68

Specification data - Carbon steel bollards

Standard	In accordance with PAS 68, PAS 69, IWA14-1 and IWA14-2.
Dimensions	-
Size and profile	∅219 mm.
Height	1000 mm.
Post top	Flat. Mitre. Semi-domed.
Finishes	-
Worked finish	Shot blasted.
Applied finish	Polyester powder coated. Guidance for specification option: Hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.
Colour	- Manufacturer guidance Insert RAL colour requirement.

Sleeve	Stainless Steel 1.4303 (308) grade. Stainless Steel 1.4401 (316) grade. Stainless steel bead blasted.
Reflective banding	None. Recessed/ Surface. Single/ Double.
Post foundations	75 mm. Guidance for specification option: Embedment.
Height (above ground)	840 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
