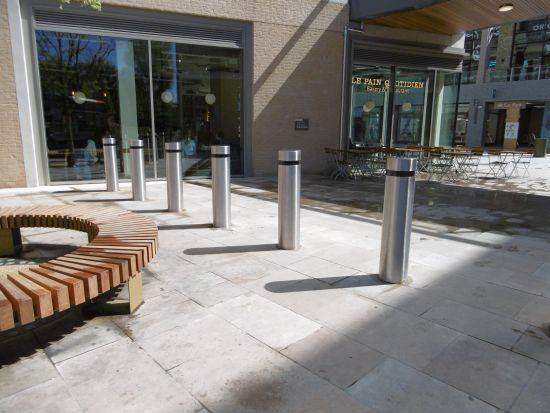

PAS 68 HVM Shallow Static Terra Venus Bollard – 7.5t at 30 mph - Shallow HVM Static Bollard

Verified by manufacturer 22 days ago

Frontier Pitts Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

PAS 68 HVM Static Terra Venus Bollard – 7.5t at 30 mph. Impact rated

Jump to:
+44 (0)1293 548301 Website

Application

Suitable for high security sites where a complete HVM perimeter is required, public realm, crowded places and pedestrian areas where vehicles are not permitted. Static HVM bollards are also used between automatic HVM products to ensure the installation meets PAS 69 installation guidance of 1.2 m maximum distance between upright faces.

Description

The Static Terra Venus Bollard is a hostile vehicle mitigation (HVM) bollard that has been impact tested to the British PAS 68 Specification, stopping a 7.5-tonne vehicle travelling at 30 mph. PAS 68 Classification Code: V/7500[N2]/48/90:0.0/0.0. Impact tested in a set of three bollards.

Static HVM Terra bollards have been proven to stop vehicles, providing HVM, counter terrorist, impact-resistant barriers preventing vehicle as a weapon attack. A removable model is also available – please see Removable Static Terra Bollards.


Features and benefits:

  • The Static HVM Terra Bollards are all made to order.
  • A range of sleeves finishes and tops available.
  • Secured by Design and a PSSA verified product.
  • Listed on the CPNI List of IWA 14 and PAS 68 products.

General information

Finish

Powder-coated

Guidance for specification option:

Insert RAL colour requirement.

Material

Steel

Guidance for specification option:

Mild carbon steel core.

Stainless steel

Width

219 mm

Height

1000 mm

Warranty description

One year

Uniclass

Pr_20_76_08_10 Carbon steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/30 Street furniture

Product range

Anti Terra HVM (Hostile Vehicle Mitigation) IWA14 & PAS68

Specification data - Carbon steel bollards

Standard

In accordance with PAS 68 / 69.

Dimensions

-

Size and profile

219 mm diameter.

Height

1000 mm.

Length below ground

300 mm.

Post top

Flat.

Mitre.

Semi-domed.

Post base

Rebar.

Finishes

-

Worked finish

Shot blasted.

Applied finish

Polyester powder coated.

Guidance for specification option:

Hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Colour

-

Manufacturer guidance

Insert RAL colour requirement.

Sleeve

Stainless steel 1.4303 (308) grade.

Stainless steel 1.4401 (316) grade.

Stainless steel bead blasted.

Reflective banding

None.

Recessed/ Surface.

Single/ Double.

Post foundations

300 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Secured By Design

Secured By Design

Secured by Design accredited

Literature

HVM Terra Bollards - Rising & Static - IWA14 & PAS68

HVM Terra Bollards - Rising & Static - IWA14 & PAS68

PAS 68 Shallow Depth Static Terra Venus Bollards

PAS 68 Shallow Depth Static Terra Venus Bollards
