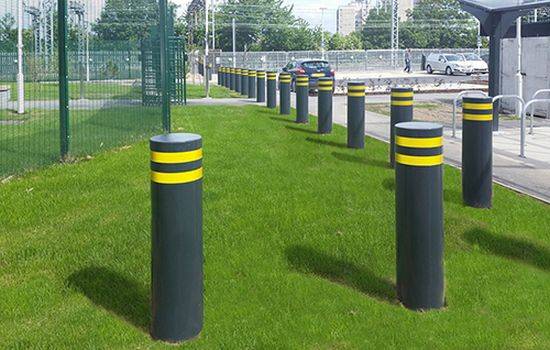

PAS 68 HVM Static Terra Neptune Bollard – 7.5t at 40 mph
Verified by manufacturer 2 months ago
Secured By Design
Certificate type
PAS 68 HVM Static Terra Neptune Bollard – 7.5t at 40 mph. Impact tested
Application
Suitable for high security sites where a complete HVM perimeter is required, public realm, crowded places and pedestrian areas where vehicles are not permitted. Static HVM bollards are also used between automatic HVM products to ensure the installation meets PAS 69 installation guidance of 1.2m maximum distance between upright faces.
Description
The Static Terra Neptune bollard is a hostile vehicle mitigation (HVM) bollard that has been impact tested to the British PAS 68 Specification, stopping a 7.5 tonne vehicle travelling at 40 mph.
PAS 68 Classification Code: V/7500[N2]/64/90:3.3/0.0. Impact tested in a set of three bollards. Static HVM Terra bollards have been proven to stop vehicles, providing HVM, counter terrorist, impact-resistant barriers preventing vehicle as a weapon attacks. A removable model is also available – please see Removable Static Terra Bollards.
Features and benefits:
- All made to order.
- A range of sleeves finishes and tops available.
- Secured by Design and a PSSA verified product.
- Listed on the CPNI List of IWA 14 and PAS 68 products.
General information
Color | Manufacturer guidanceClient choice of RAL colour |
Finish | Powder-coated Guidance for specification option: Shot blasted, hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Material | Steel Guidance for specification option: Mild carbon steel core. |
Width | 273 mm |
Height | 1000 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/190 Bollards Q50/30 Street furniture |
Product range |
Specification data - Carbon steel bollards
Standard | In accordance with PAS 68 and PAS69. |
Dimensions | |
Size and profile | ∅273 mm. |
Height | 1000 mm. |
Length below ground | 600 mm. |
Post top | Flat.Mitre.Semi-domed. |
Post base | Embedded into foundation. |
Finishes | |
Worked finish | Shot blasted. |
Applied finish | Polyester powder coated.Guidance for specification option: Hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Colour | Manufacturer guidanceInsert RAL colour requirement. |
Accessories | Not required.Decorative sleeves. |
Sleeve | Stainless steel 1.4303 (308) grade. Stainless steel 1.4401 (316) grade. Stainless steel bead blasted. |
Reflective banding | None. Recessed/ Surface. Single/ Double. |
Post foundations | 650 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Secured By Design
Secured by Design accredited
Literature
IWA 14 & PAS 68 Terra Bollards
Similar products from Frontier Pitts Ltd

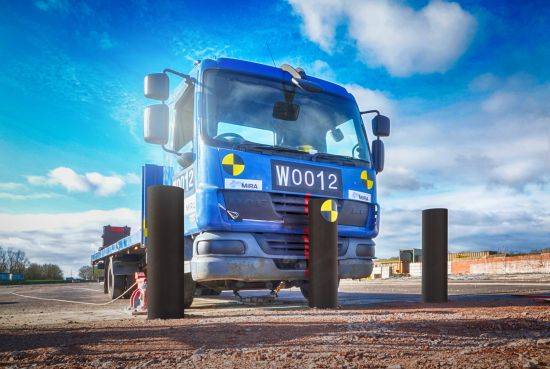

IWA 14 HVM Shallow Static Terra Jupiter Bollard - 7.2t at 50 mph - Anti-Terrorist Static Bollard

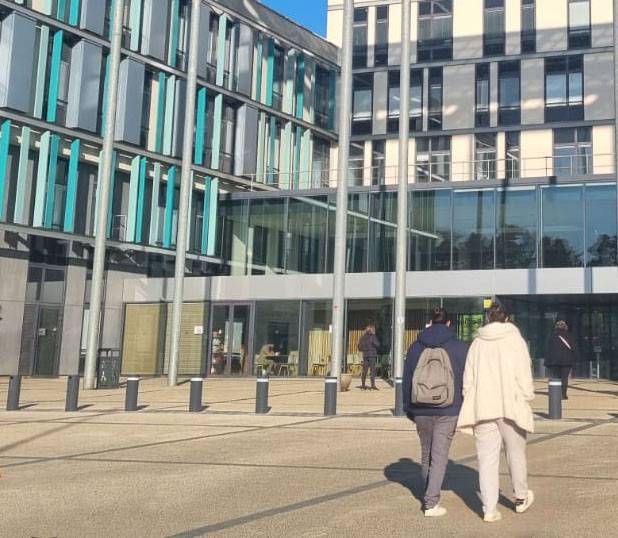

IWA 14 HVM Static Terra Comet Bollard – 3.5t at 30 mph - Anti-Terrorist Static Bollard

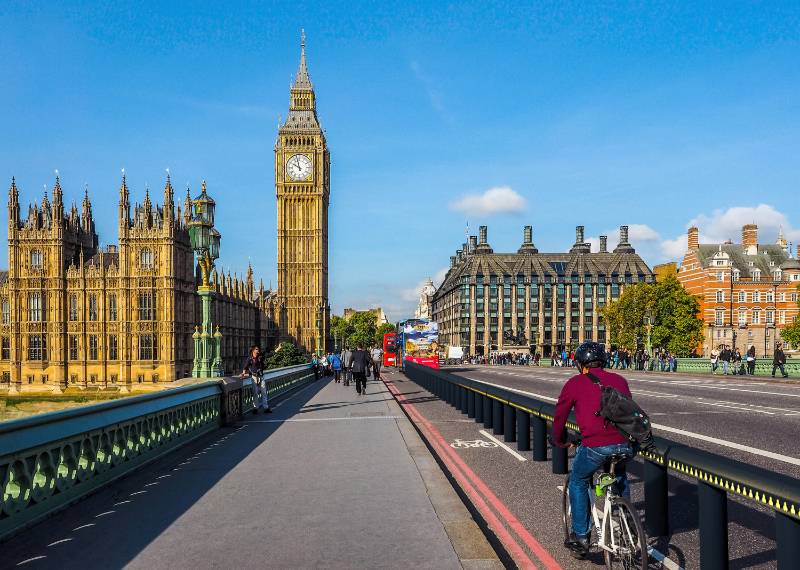

IWA 14 HVM Ultra Shallow Terra Lunar Bridge Bollard – 7.2t at 30 mph - Static HVM Bollard
PAS 68 HVM Shallow Static Terra Venus Bollard – 7.5t at 30 mph - Shallow HVM Static Bollard

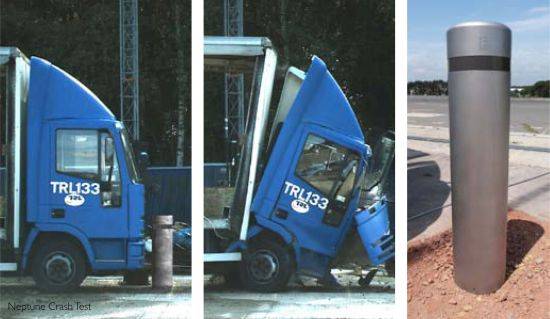

PAS 68 HVM Standalone Shallow Static Terra Neptune Bollard – 7.5t at 40 mph - Anti Terrorist HVM Static Bollard

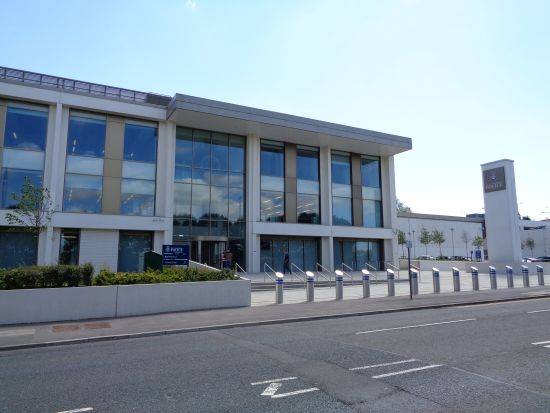

PAS 68 HVM Static Terra Jupiter Bollard – 7.5t at 50 mph - Static HVM Bollard

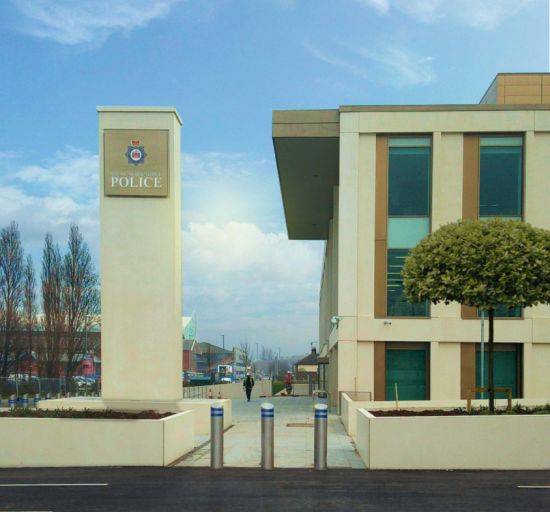

PAS 68 HVM Static Terra Mars Bollard – 7.5t at 40 mph - Anti Terrorist, HVM Static Bollard

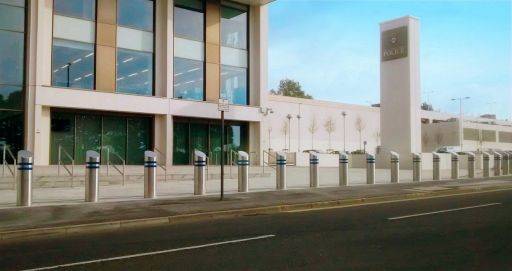

PAS 68 Static Terra Venus Bollard (Shallow Depth) - 7.5t at 30mph - Anti-Terrorist Shallow Bollard
