NORTEC L 38 x M - Raised Access Floor Panel

Name: NORTEC L 38 x M - Raised Access Floor Panel
Brand: Lindner Group
SKU: mgcqLJrtw693FV7PwtQgrh

Verified by manufacturer 2 months ago

Lindner Group

Third party certifications:

EPD
Certificate type

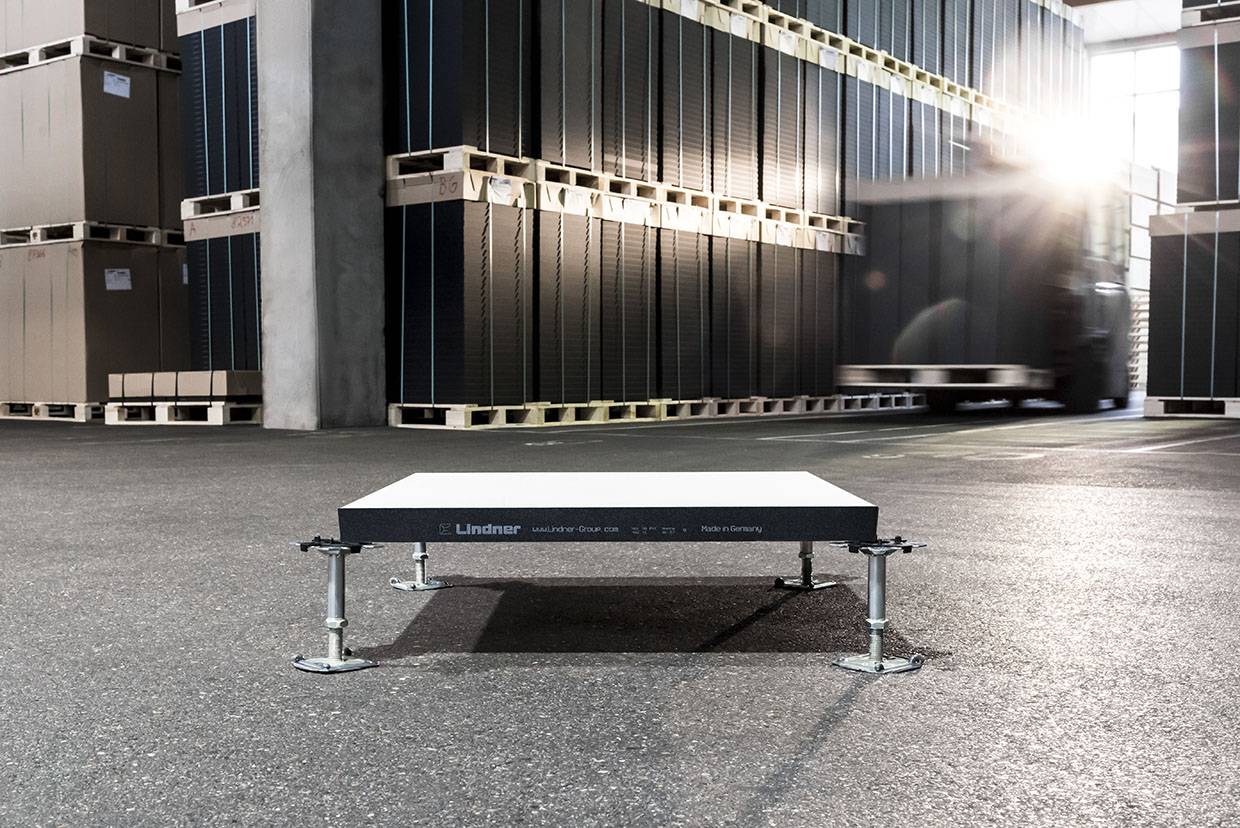

NORTEC floor panels are manufactured from calcium sulphate (gypsum): a non-combustible material, the panels are protected against shock and humidity by an edge trim on all edges.

Jump to:

020 8246 6333 Website

Application

Office areas, working areas and corridors: Commercial buildings, hospitals, surgeries.
Technical Rooms: Electrical distribution and switchgear cabinet rooms.
Areas with high foot fall: Educational facilities, restaurants.

Description

The raised access floor system NORTEC is the suitable product for nearly all applications with its excellent technical and building-physical characteristics.

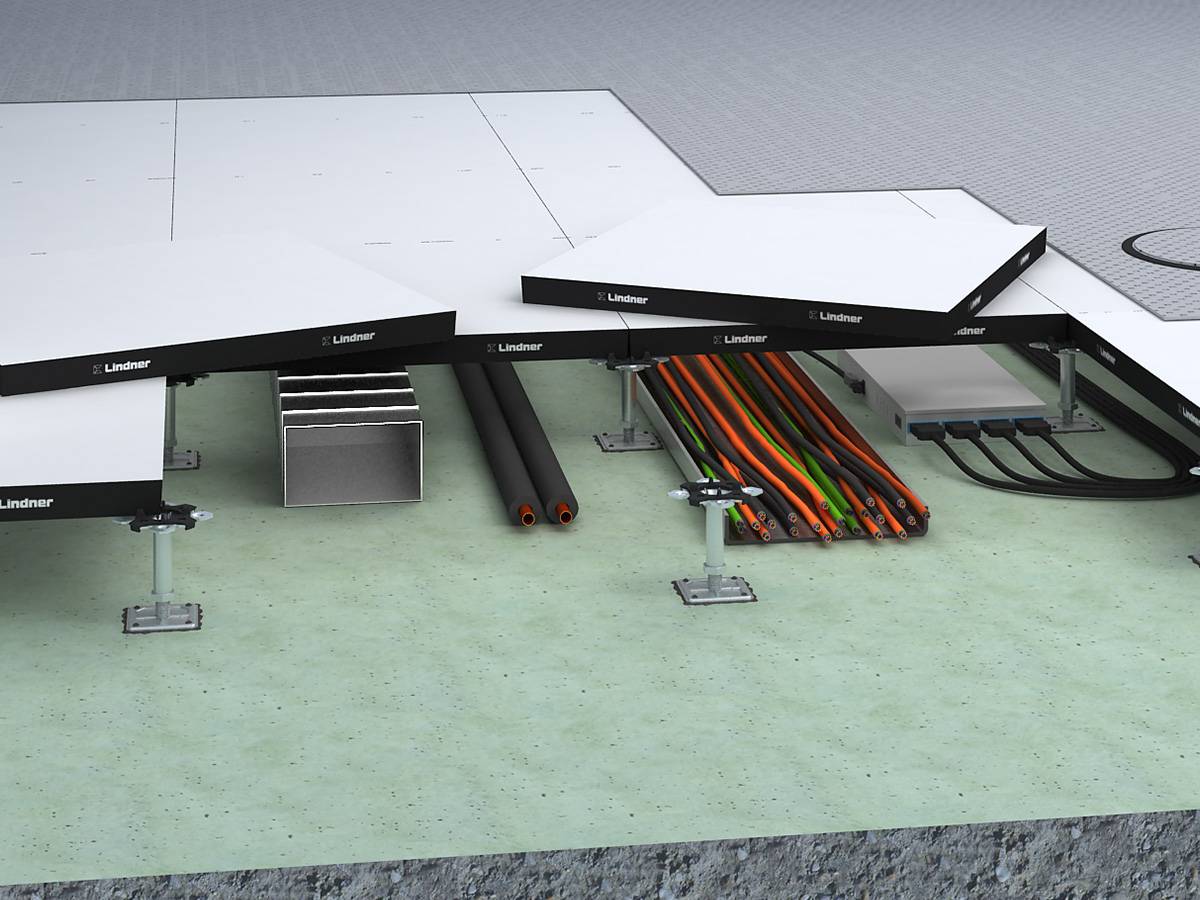

The raised access floor panels consist of fibre-reinforced calcium sulphate. The panels are protected against shock and humidity by an edge trim on all edges. The substructure consists of height-adjustable zinc-coated steel pedestals from our own production which form the necessary cavity for installations and gaskets for sound decoupling.

Features and benefits:

Excellent walking comfortability.
Very high load-ability.
Non-combustible.
Simple lifting and exchanging of single panels.
Wide array of coverings.
Earthquake safety: International Building Code (IBC) available in A–F.
Cradle to Cradle Certified Silver.
Environmental product declaration to ISO 14025 and ISO 14021.

General information

Color	White
Finish	Other
Material	Calcium sulphate Guidance for specification option: Zinc-coated. Steel
Shape	Other
Length	600 mm
Width	600 mm
Height	38 mm
Warranty description	25 year

Uniclass	Ss_30_20_70_70 Raised access floor systemsPrimary
CAWS	K41/130 Raised access floor

Product range	Lindner Raised Access Floor / NORTEC

Specification data - Raised access floor systems

Subfloor preparation	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Support structure type	Access floor pedestals, zinc-coated steel. Guidance for specification option: Pedestal distance: 600 x 600 mm.
Pedestal fixings	Guidance for specification option: Consult manufacturer and insert requirements.
Raised access floor surface	Raised access floor panels.
Barriers in floor void	-
Fire barriers	Not required. Solid Gypsum wall blocks. Guidance for specification option: Fire protection barriers made from solid gypsum wall blocks (min. 80 mm)
Acoustic barriers	Not required. Foam mortar. Guidance for specification option: Sound protection barriers made from foam mortar (min. 100 mm).
Plenum barriers	Not required. Coated chipboard panels. Guidance for specification option: Ventilation barriers made from coated chipboard panels.
System accessories	Not required. Facings. Expansion joints. Electrical outlets. Cavity barriers. Air ventilation outlets. Bridging profiles. Reinforcement profiles.

Calculated weighted sound reduction index (Rw)	To ISO 140, 61 dB.
Fire resistance	To DIN 4102-2, F30, To DIN 4102-2, F60, To BS EN 13501-2, REI 30; To BS EN 13501-2, REI 60.
Load class	To EN 12825, 2A. Manufacturer guidance Load and deflection class.
Breaking load	To EN 12825, 6 kN. Guidance for specification option: Concentrated load 3 kN.
LoadSafetyFactor	To EN 12825, 2.
Thickness	38 mm.
Pedestal height	- Manufacturer guidance 25–2000 mm. Insert requirements.
Weight	62 kg/m². Manufacturer guidance Approximately.
Impact sound reduction	12 dB without covering; 27 dB with covering.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.32 kg CO₂ eq/m
Recyclability	yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
