LIGNA S 38 ST x M - Chipboard Raised Access Floor
Verified by manufacturer 2 months ago
ISO 9001 Quality Management
Certificate type
Chipboard raised access floor type with steel sheet on bottom side.
Application
- Offices, hospitals, surgeries, ward rooms.
- Electrical distribution and switchgear cabinet rooms.
- School rooms, restaurants, reading rooms.
Description
Chipboard raised access floor type with steel sheet on bottom side supported by the System Floor Pedestal Type M.
Features and benefits:
- Low system weight.
- Quick installation.

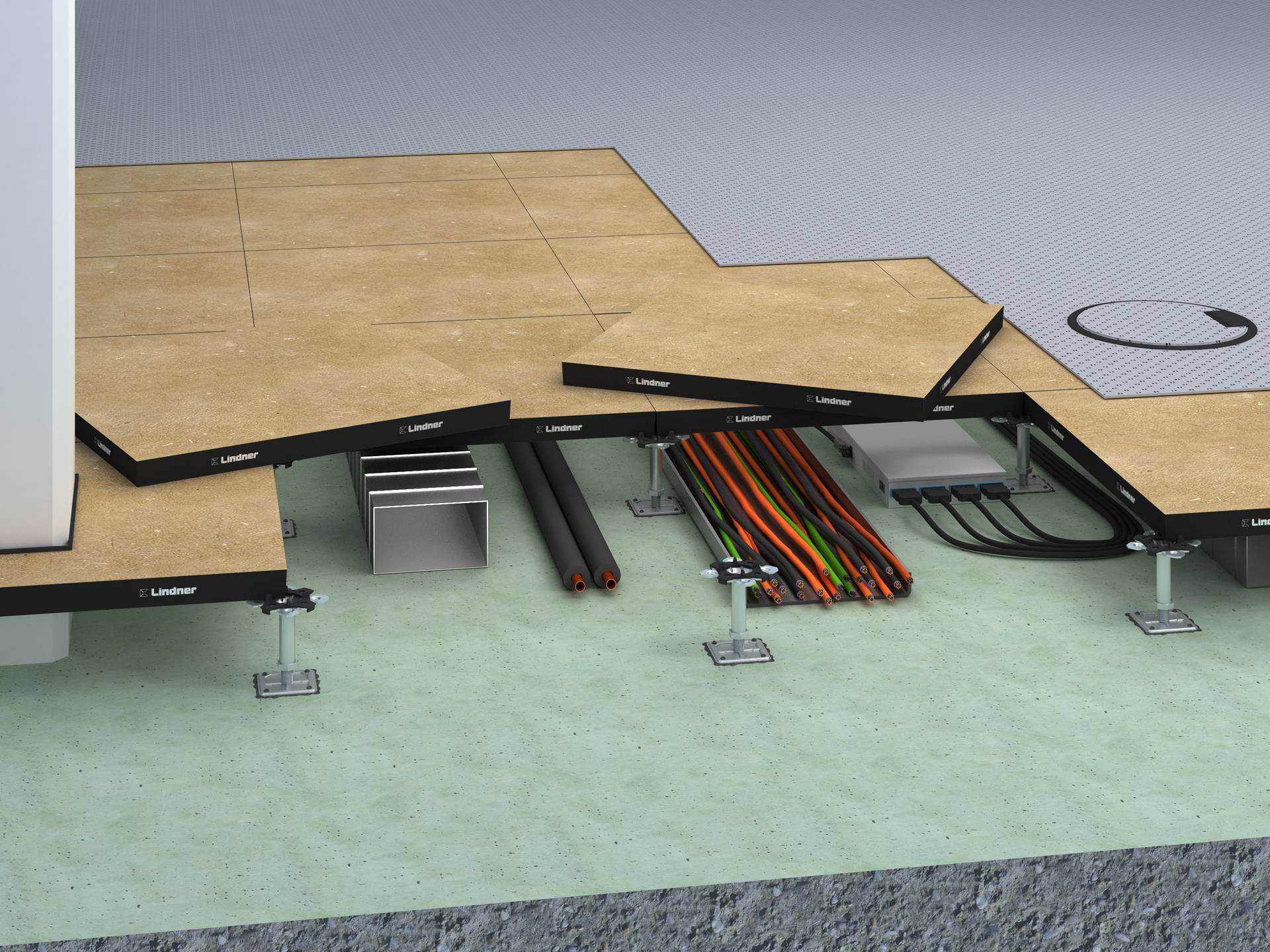

System comprises:
- Panel: Special high-density chipboard panel classified E1, protection against shock and humidity at bottom side, surrounding edge trim protection against shock and humidity, edges inclined.
- Pedestal: Precisely height adjustable, manufactured from zinc-coated galvanized steel.
- Gasket: Manufactured from plastic material, vaulted surface for perfect panel fixing.
- Wall connection: Pre-stressed foam rubber, for acoustic insulation and absorption of horizontal movements.
Suitable floor coverings:
- Loose-laid tiles.
General information
Color | Brown |
Finish | Stainless steel |
Material | Chipboard Stainless steel |
Shape | Square |
Length | Bespoke |
Width | Bespoke |
Height | 38.5 mm Manufacturer guidancePanel thickness. |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor |
Product range |
Specification data - Raised access floor systems
Subfloor preparation | Guidance for specification option: Insert requirements or omit. |
Support structure type | Access floor pedestals type M with gasket. 600 mm spacing.Guidance for specification option: Insert requirements include drawing reference or schedule. Pedestal heights available from 25–2000 mm. Pedestals:
Gasket:
|
Pedestal fixings | Guidance for specification option: Consult manufacturer for options and insert requirements to suit substrate. |
Raised access floor surface | LIGNA S 38 ST raised access floor panels, 600 x 600 x 39 mm.Guidance for specification option: Special high-density chipboard panel classified E1, protection against humidity at bottom side, surrounding edge trim protection against damage and humidity, edges inclined. |
Barriers in floor void | |
Fire barriers | Guidance for specification option: Insert requirements or omit. |
Acoustic barriers | Guidance for specification option: Insert requirements or omit. |
Plenum barriers | Guidance for specification option: Insert requirements or omit. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Weight | 33 kg/m² (at a floor height of 150 mm). |
Reaction to fire | To BS EN 13501-1, Bs1,d0 (difficult to ignite). |
Fire resistance | To BS EN 13501-2, REI 30 (up to 800 mm pedestal heights). |
Weighted sound reduction index, Rw | 62 dB. |
Integral accessories | Pre-stressed foam rubber wall connections. Guidance for specification option: For acoustic insulation and absorption of horizontal movements. |
Technical characteristics, other | Load and deflection class: 2A; 6 kN (breaking load); 3 kN (concentrated load). |
Third-party certification | Not required. FSC® certified. |
VOC emissions | A+. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Chipboard Stainless steel |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.32 kg CO₂ eq/kg Self declared |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | 50 year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
Literature
Brochure Lindner Raised Floor Systems

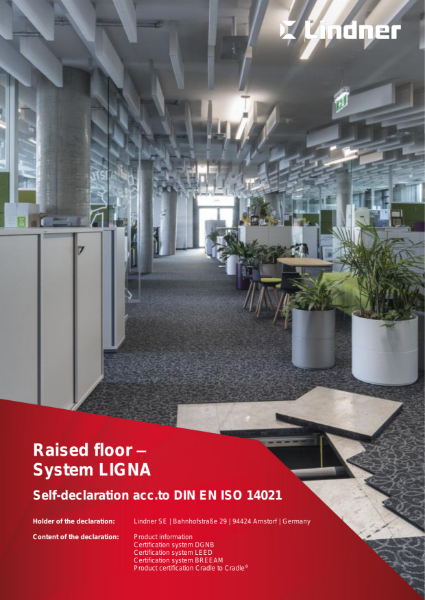

Raised Floor - System LIGNA

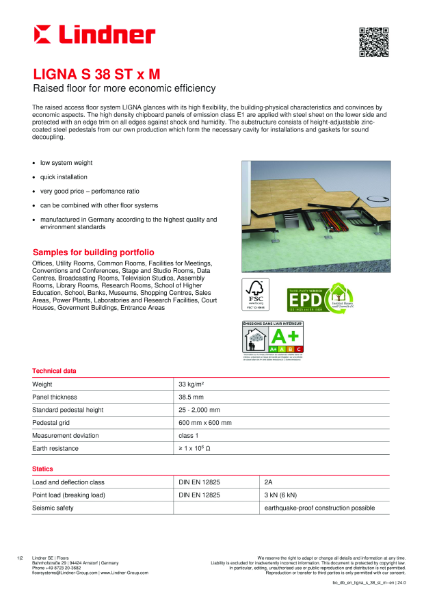

LIGNA S 38 ST x M
