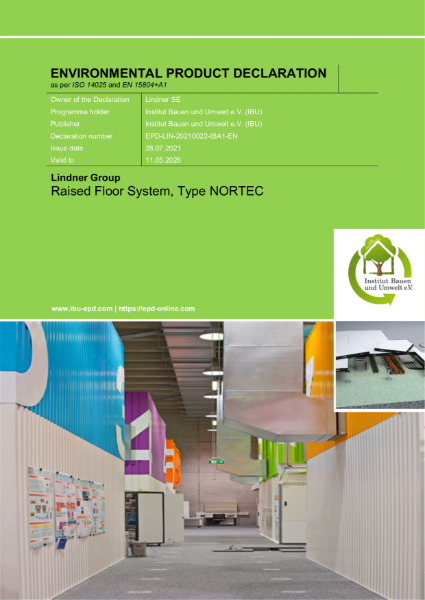

EPD
Certificate type
Cradle to Cradle Certified
Certificate type

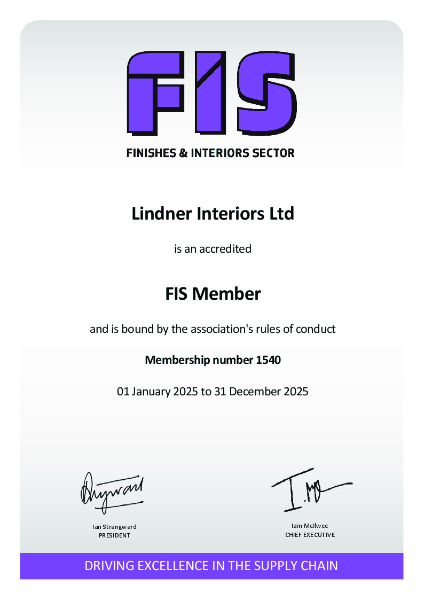

FIS Acoustic Verification Scheme
Certificate type
NORTEC floor panels are manufactured from calcium sulphate (gypsum): a non-combustible material, the panels are protected against shock and humidity by an edge trim on all edges.
NORTEC floor panels are manufactured from calcium sulphate (gypsum): a non-combustible material, the panels are protected against shock and humidity by an edge trim on all edges.
System comprises:
Suitable floor coverings:
Color | Clear |
Finish | Other |
Material | Calcium sulphate |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor |
SKU Code | NORTEC L 30 x M |
Product range |
Subfloor preparation | Manufacturer guidanceInsert requirements or omit. |
Support structure type | Access floor pedestals type M, with gaskets. 600 mm spacing. Guidance for specification option: Insert requirements include drawing reference or schedule. Pedestal heights available from 28 to 2000 mm.
|
Pedestal fixings | Manufacturer guidanceConsult manufacturer for options and insert requirements to suit substrate. |
Raised access floor surface | NORTEC L 30 raised access floor panels, 600 x 600 x 30 mm. |
Barriers in floor void | |
Fire barriers | Manufacturer guidanceInsert requirements or omit. |
Acoustic barriers | Manufacturer guidanceInsert requirements or omit. |
Plenum barriers | Manufacturer guidanceInsert requirements or omit. |
System accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements, or omit. |
Integral accessories | Pre-stressed foam rubber wall connections. Guidance for specification option: For acoustic insulation and absorption of horizontal movements. |
Reaction to fire | To BS EN 13501-1, A1 (full non-combustible). |
Fire performance | To BS EN 13501-2, REI 30 (up to 1300 mm pedestal heights). |
Weighted sound reduction index, Rw | 62 dB. |
Weight | 50 kg/m² (at a floor height of 150 mm). |
Technical characteristics, other | Load and deflection class: 1A (2 kN). |
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Calcium sulphate |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 12.6 kg CO₂ eq/kg |
Declared unit | 12.6 kg CO₂ eq/kg Certified |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | 50 year |
