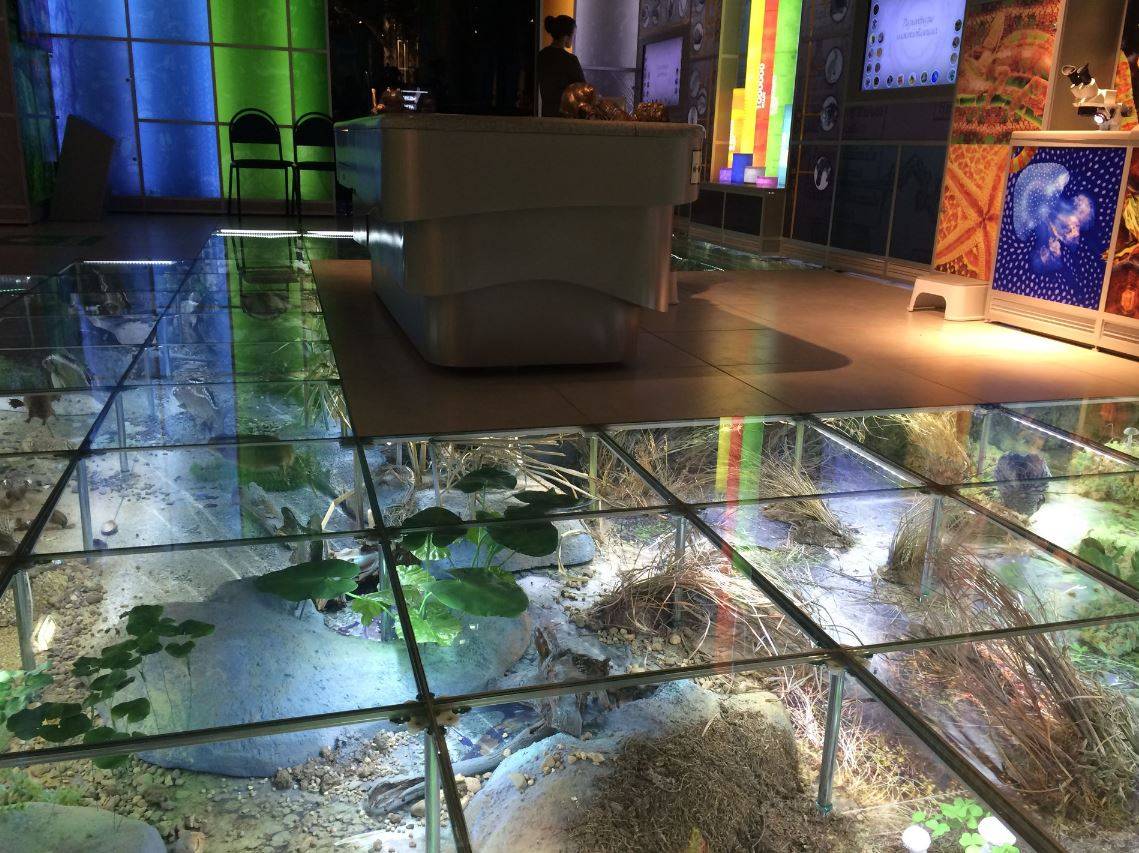

LUMEN H 38 x H - Raised Access Floor System

Name: LUMEN H 38 x H - Raised Access Floor System
Brand: Lindner Group
SKU: wn4b2tGeuhvyceuBtduQx5

Verified by manufacturer 3 months ago

Lindner Group

Third party certifications:

ISO 9001 Quality Management
Certificate type

Raised floor from transparent glass panels.

Jump to:

020 8246 6333 Website

Application

Suitable for a wide range of applications, including:

Broadcasting rooms and television studios.
Offices, conventions and conferences and facilities for meetings.
Education.
Entrance areas and escape routes.
Cinemas, theatres and concert halls.
Hotels and resorts.
Restaurants and canteens.
Court houses and government buildings.
Data centres, laboratories and research facilities.

Description

The raised access floor system LUMEN grants unusual inside views and a striking lighting. The LUMEN glass floors consist of pre-stressed float glasses, optionally with slip-resistant screen print and different grades of transmission of the panes. The substructure consists of height-adjustable zinc-coated steel pedestals which form the necessary cavity for installations and gaskets for sound decoupling.

Features and benefits:

Solid glass panel.
Three-ply safety glass.
No reinforcement profiles necessary.
Different surface designs possible.
Light-effects possible.
Available in transparent, opaque or coloured glass.
Available with underfloor lighting.
Seismic safety: earthquake-proof construction possible.

General information

Color	Clear
Finish	Other
Material	Glass
Shape	Square
Length	600 mm
Width	600 mm
Height	38 mm
Warranty description	25 year

Uniclass	Ss_30_20_70_70 Raised access floor systemsPrimary
CAWS	K41/130 Raised access floor K41/130 Raised access floor

Specification data - Raised access floor systems

Subfloor preparation	Guidance for specification option: Insert requirements.
Support structure type	Height-adjustable zinc-coated steel pedestals. Guidance for specification option: Standard pedestal height: 20–2000 mm. Pedestal grid: 600 x 600 mm.
Pedestal fixings	Pedestal adhesive.
Raised access floor surface	LUMEN H 38 x H raised floor from transparent glass panels. Guidance for specification option: Pre-stressed float glass. Weight: 89 kg/m². Panel thickness: 38 mm.
Barriers in floor void	-
Fire barriers	Guidance for specification option: Insert requirements or omit.
Acoustic barriers	Guidance for specification option: Insert requirements or omit.
Plenum barriers	Guidance for specification option: Insert requirements or omit.
System accessories	Not required. Underfloor lighting. Transmission grade. Guidance for specification option: Different grades of transmission of the panes available. Consult manufacturer and insert requirements.

Surface finish	Not required. Slip resistant screen print. Guidance for specification option: Different print designs and inlay foils possible, with slip-resistant screen print (R9–R12) on request. Options in float glass, white glass or frosted glass. Consult manufacturer and insert requirements.
Load	To DIN EN 12825, 5A. Manufacturer guidance Load and detection class.
Breaking load	To DIN EN 12825, 5 kN (10 kN).
Reaction to fire	To DIN EN 13501-1 and DIN EN 4102-1, Class A1 (non-combustible). Manufacturer guidance Reaction to fire performance of the carrier panel.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Material	Glass
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.32 kg CO₂ eq/kg Self declared
