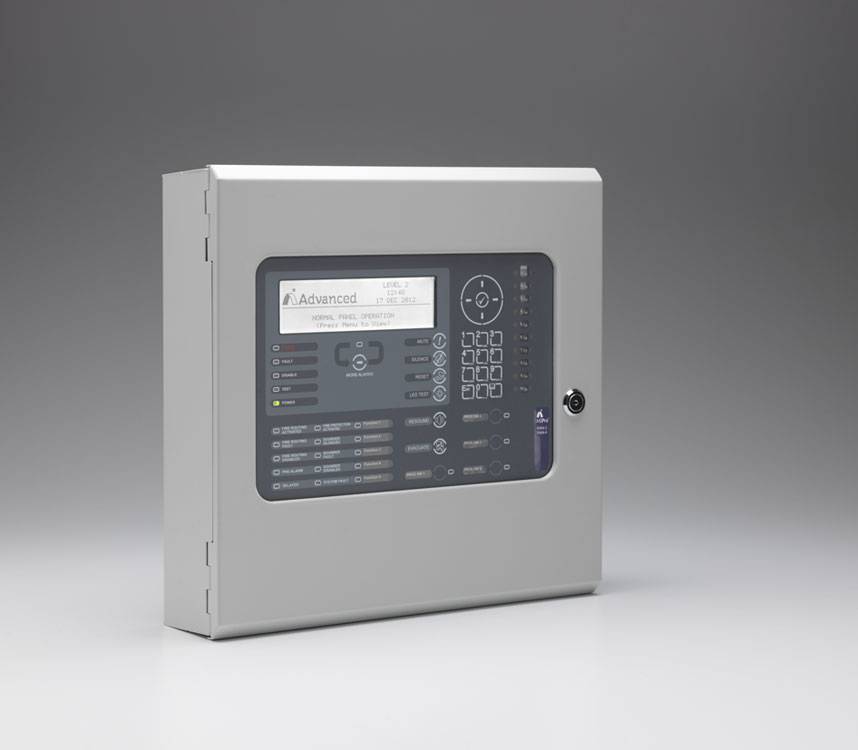

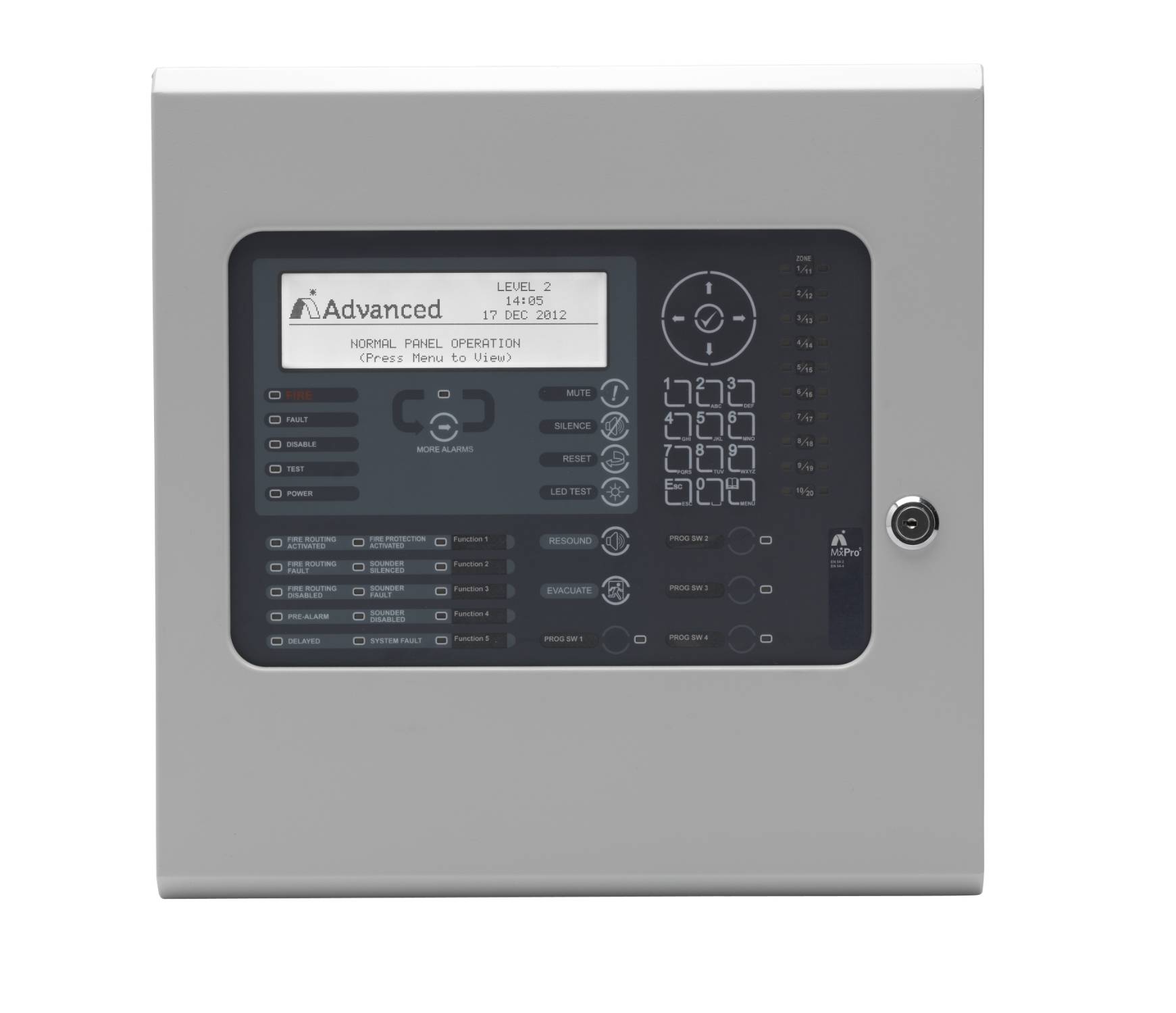

MxPro 5 Fire Alarm Control Panel 1 Loop
Verified by manufacturer 3 months ago
MX-5101
MX-5101
Single loop fire alarm control panel with LCD display, conforms to BS EN 54-2, 4 and 13 standard.
Application
Suitable for use in residential, commercial and industrial environments.
Description
Fire detection and alarm control and indicating equipment (CIE).
Features and benefits:
- BS EN 54 Part 2, 4 and 13 approved.
- Certified by FM approvals to EN 54 Parts 2 and 4.
- AdvancedLive connectivity (UK and Ireland only)
- Single loop.
- Small enclosure.
- Maximum 7 Ah internal batteries.
- 20 programmable LED’s.
- Optional programmable key switch.
- Programmable input.
- Medium, large and deep enclosure options.
- Compatible with alarm calm false alarm management.
- Single loop control panel.
General information
Color | Grey Guidance for specification option: RAL 7035. |
Finish | Powder-coated |
Material | Steel |
Shape | Square |
Length | 85 mm 120 mm 190 mm |
Width | 450 mm |
Height | 345 mm 475 mm |
Warranty description | Three year |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
Specification data - Fire alarm panels
Standard | To BS EN 54.Guidance for specification option: (Parts 2, 4 and 13.) |
Third party certification | Certified by FM approvals to BS EN 54 parts 2 and 4. |
Standby power supply | |
Standard | To BS EN 54-4, 13. |
Capacity | 24 V, 7 Ah. |
Main display | White backlit 240 x 64 graphical LCD. |
Zone indication | LED status indicators. |
Installed capacity | One loop. |
Monitored sounder circuits (minimum) | Two. |
Printer | Output to separate printer. |
Indications | Fault signals from points. |
Controls | To BS EN 54-2. |
Outputs | Output to fire alarm devices. |
Input device | Alphanumeric keypad. |
Enclosure | |
Material | Steel. |
Finish | Powder coated. |
Colour | Grey.Guidance for specification option: RAL 7035. |
Mounting | Guidance for specification option: Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount. |
Dimensions | 85 x 345 x 345 mm. |
Enclosure type | Standard. |
NominalFrequencyRange | 47-63 Hz. |
NumberOfPoles | 10. |
PowerFactor | 0. |
RatedCurrent | 1 A. |
RatedVoltage | 200-240 V. |
ExpectedLife | 18 years. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location | |
Recyclability | Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 2 |
 IFC | - | 2 |
Literature
MxPro 5 Brochure
Consultant Specification - EN54 Part 2, 4 and 13 Fire System
Datasheet - MxPro 5 Fire Alarm Control Panel 1 Loop
Case studies
HMS Belfast, London
Royal Sussex County Hospital, Brighton

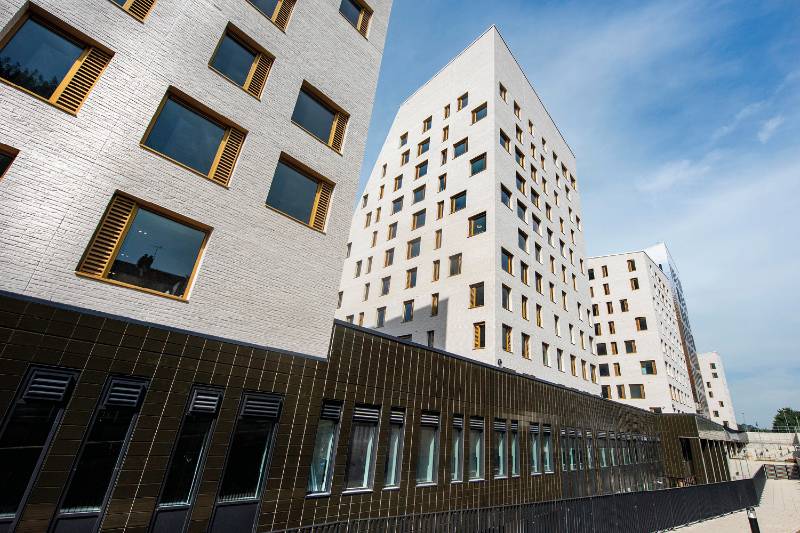

Student Accommodation, University of Brighton
