MxPro 5 Fire Alarm Control Panel 1-4 Loop
Verified by manufacturer 3 months ago
MX-540#
MX-540#
One or four loop fire alarm control panel with LCD display, conforms to BS EN 54-2, 4 and 13 standard.
Application
Suitable for use in residential, commercial and industrial environments.
Description
Fire detection and alarm control and indicating equipment (CIE).
Features and benefits:
- EN 54 Part 2, 4 and 13 approved.
- Certified by FM approvals to EN 54, parts 2 and 4.
- AdvancedLive connectivity (UK and Ireland only)
- One to four loops.
- Large enclosure.
- Maximum 17 Ah internal batteries.
- Up to 200 additional programmable LED’s.
- Up to eight programmable key switches or four plus printer.
- Plexi-glass door option.
- Deep and extended enclosure options.
- Apollo, Argus Vega, Hochiki and Nittan evolution protocol support.
General information
Color | Grey Guidance for specification option: RAL 7035. |
Finish | Powder-coated |
Material | Steel |
Shape | Square |
Length | 120 mm 190 mm |
Width | 450 mm |
Height | 475 mm 750 mm |
Warranty description | Three year |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
Specification data - Fire alarm panels
Standard | To BS EN 54.Guidance for specification option: (Parts 2, 4 and 13.) |
Third-party certification | Certified by FM approvals to BS EN 54 parts 2 and 4. |
Standby power supply | |
Standard | To BS EN 54-4, 13. |
Capacity | 24 V, 18 Ah. |
Main display | White backlit 240 x 64 graphical LCD. |
Zone indication | LED status indicators. |
Installed capacity | One or four loop. |
Printer | Output to separate printer. |
Indications | Fault signals from points. |
Controls | To BS EN 54-2. |
Outputs | Output to fire alarm devices. |
Input device | Alphanumeric keypad. |
Features | Apollo, Argus Vega, Hochiki and Nittan Evolution protocol support. |
Enclosure | |
Material | Steel. |
Finish | Powder coated. |
Colour | Grey.Guidance for specification option: RAL 7035. |
Mounting | Guidance for specification option: Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount. Manufacturer guidanceEnclosure Mounting Options: |
Dimensions | 120 x 450 x 475 mm. |
Enclosure type | Standard. |
NominalFrequencyRange | 47-63 Hz. |
NumberOfPoles | 15. |
PowerFactor | 0. |
RatedCurrent | 1.4 A. |
RatedVoltage | 200-240 V. |
ExpectedLife | 18 years. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location | |
Recyclability | Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | Revit 2017 | 2 |
Literature
MxPro 5 Brochure
Consultant Specification - EN54 Part 2, 4 and 13 Fire System
Datasheet - MxPro 5 Fire Alarm Control Panel 1-4 Loops
Case studies
Natural History Museum, London
HMS Belfast, London
Royal Sussex County Hospital, Brighton
Student Accommodation, University of Brighton
Wexham Park Hospital, Berkshire

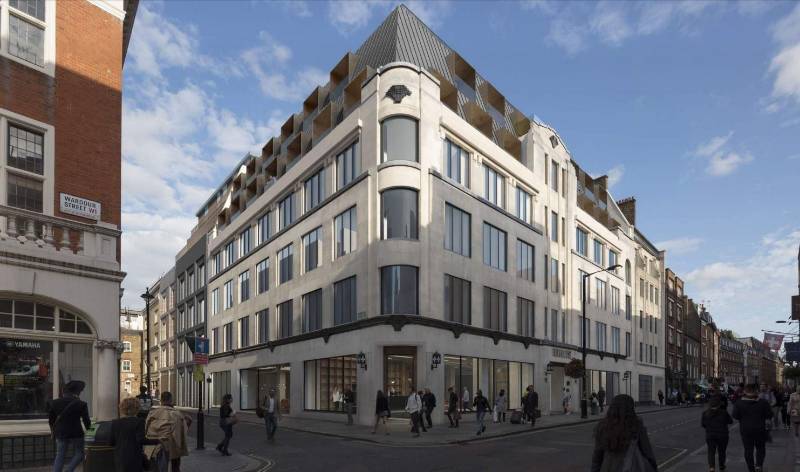

Film House, London
