Multi-Link-Panel - MLT32NF
Verified by manufacturer 8 months ago
Clear
Clear

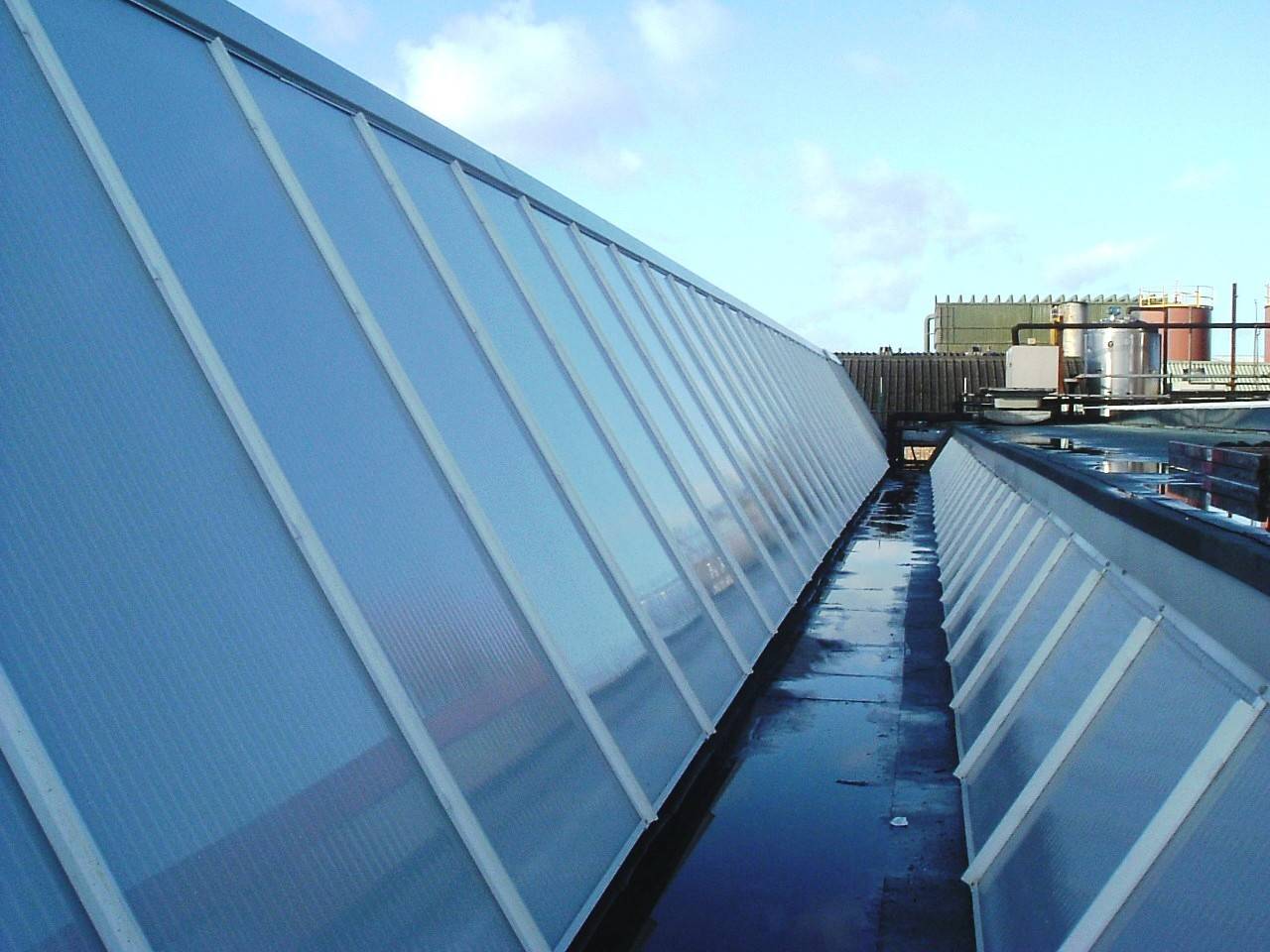

A lightweight, modular, interlocking roof glazing system, non-fragile to ACR(M)001:2019.
Application
Suitable for all retail, educational, industrial, health and commercial institutions.
Description
Multi Link-Panels are a light weight, modular, inter locking roof glazing system and are non-fragile to ACR(M)001:2019.
Features and benefits:
- Panels are glazed with 32 mm polycarbonate, light weight, impact and weather resistant, and easy to install.
- Maximum unsupported span: 2800 mm between fixing points, 1275 mm bar centres (assumed loadings; wind - 0.9 kN/m²; snow - 0.5 kN/m²).
- Maximum unsupported overhang: 150 mm.
- Total energy transmission: Clear 47%; opal 41%.
General information
Color | Clear |
Finish | Powder-coated |
Material | Polycarbonate Aluminium |
Uniclass | |
CAWS | H10/10 Patent glazing H10/115 Patent glazing L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Product performance | |
Fire performance | |
Fire resistance | To BS EN 13501-1, B-s1, d0. |
Reaction to fire | To BS EN 13501-1, B-s1, d0. |
Whole window U-value | 1.2 W/m²K.Guidance for specification option: Vertical applications. 1.3 W/m²K.Guidance for specification option: Horizontal applications. |
Frame | |
Material | Extruded aluminium bars to BS 1474. |
Finish | |
Coating | Polyester powder coating to BS 6496. |
Colour | Guidance for specification option: Any RAL or BS colour available, insert requirements. |
Glazing or infill | |
Type | 32 mm Exolon® multi UV Fivewall Polycarbonate. |
Colour | Clear.Opal. |
Accessories | None.Aluminium side trims.Eaves seal.Head flashing.Mechanical end plates.Ridge flashing. |
UV protective layer | One sided of the sheet. |
Light transmission | 48%. |
Sound reduction index | 18 dB. |
Pitch | 5°. Manufacturer guidanceMinimum |
Fixings | Stainless steel self-tapping screws and bolts. |
Width | 1275 mm. |
FragilityRating | Panels tested in accordance with ACR[M]001:2019 and Classified as 'Class B non-fragile assembly'. |
Glass type | MLT32NF. |
Sustainability data
Country of material origin | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 4 |
