Exolon® 6 mm Solid Obscure Multi-link Panel Non-fragile (ACR(M)001:2019, Class B) - Rooflight Panel System
Verified by manufacturer 8 months ago
Multi-link non-fragile rooflight panel system with 6 mm Exolon UV solid obscure polycarbonate.
Application
- Railway Stations.
- Platform Glazing
- Concourse Glazing
- Depots.
- Warehouses.
- Northlights.
- Heritage.
Description
Multi-link non-fragile rooflight panel system with 6 mm Exolon UV solid obscure polycarbonate.
Features and benefits:
- Multi-Link-Panels are a light weight, modular, interlocking roof glazing system and are non-fragile to ACR(M)001:2019.
- Panels are glazed with 6 mm solid obscure polycarbonate, light weight, impact and weather resistant, and easy to install.
- Maximum unsupported span: 3200 mm down the slope, 600 mm panel width (assumed loadings: wind - 0.9 kN/m²; snow - 0.5 kN/m²).
- Maximum unsupported overhang: 150 mm.
General information
Color | Black Blue Green Grey Red |
Finish | Powder-coated |
Material | Polycarbonate |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H10/10 Patent glazing H10/115 Patent glazing L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Rectangular.Square. |
Size | Guidance for specification option: Bespoke. Consult manufacturer and insert requirements. |
Product performance | |
Fire performance | |
Reaction to fire | B-s1,d0 to BS EN 13501-1. |
Frame | |
Material | Extruded aluminium bars to BS 1474. |
Finish | |
Coating | Polyester powder coating to BS 6496. |
Colour | Black.White.Red.Blue.Yellow.Green.Grey. |
Glazing or infill | |
Type | Polycarbonate sheet. |
Construction | Single skin. |
Colour | Obscure. |
Coating | UV-protected. |
Operation | |
Type | Fixed. |
Accessories | None.Aluminium side trims.Eaves fillers.Head flashing.Mechanical end plates.Ridge flashing.PVC-U underclad tray. |
Glass type | ML6NF. Guidance for specification option: (Obscure). |
Sound reduction index | 29 dB. |
Light transmission | 83%. Guidance for specification option: Clear. |
UV protective layer | Both sides of sheet. |
Pitch | 5°. |
Fixings | Stainless steel self-tapping screws and bolts. |
FragilityRating | Panels tested in accordance with ACR[M]001:2019 and classified as 'Class B non-fragile assembly'. |
Width | 600 mm. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Case studies

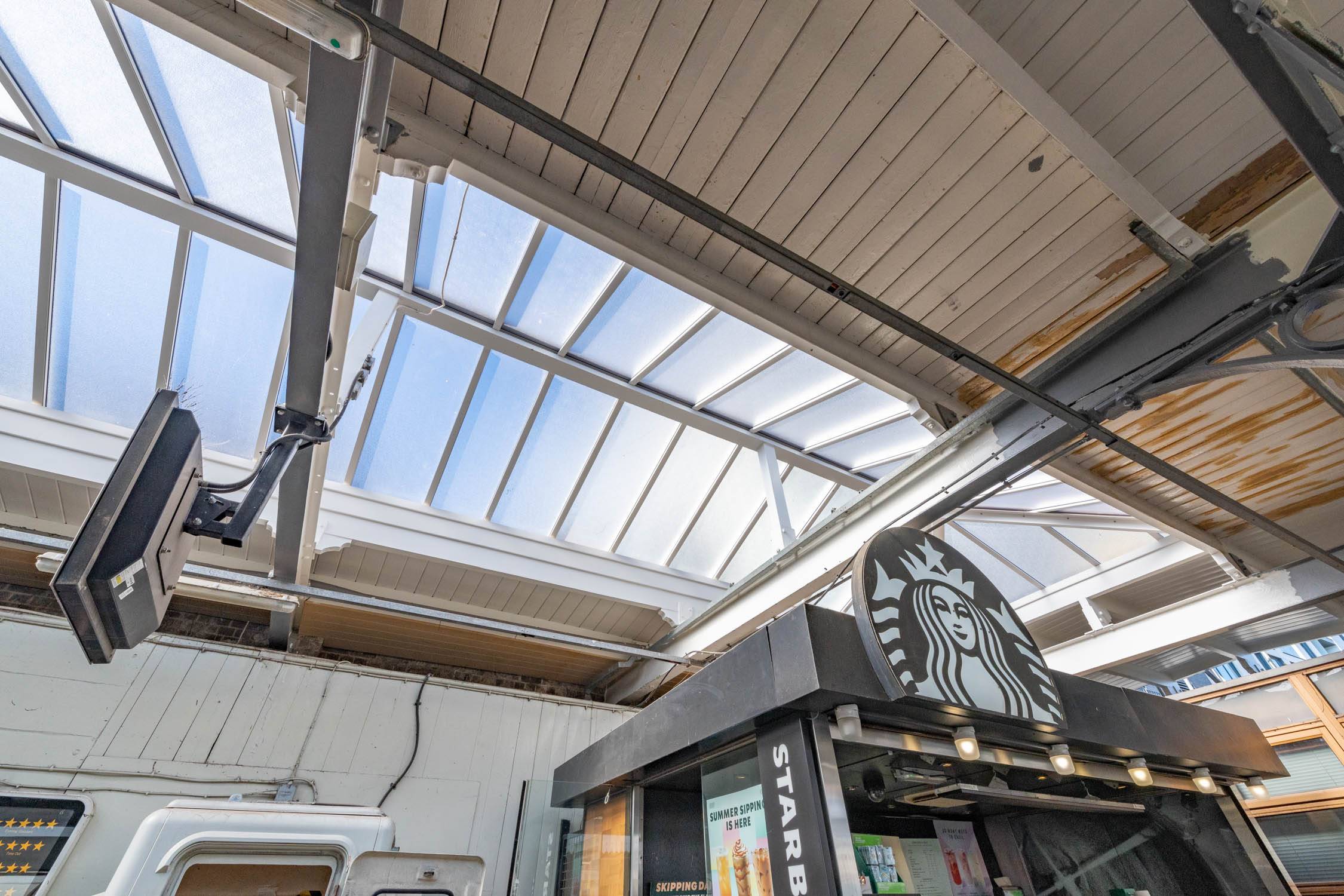

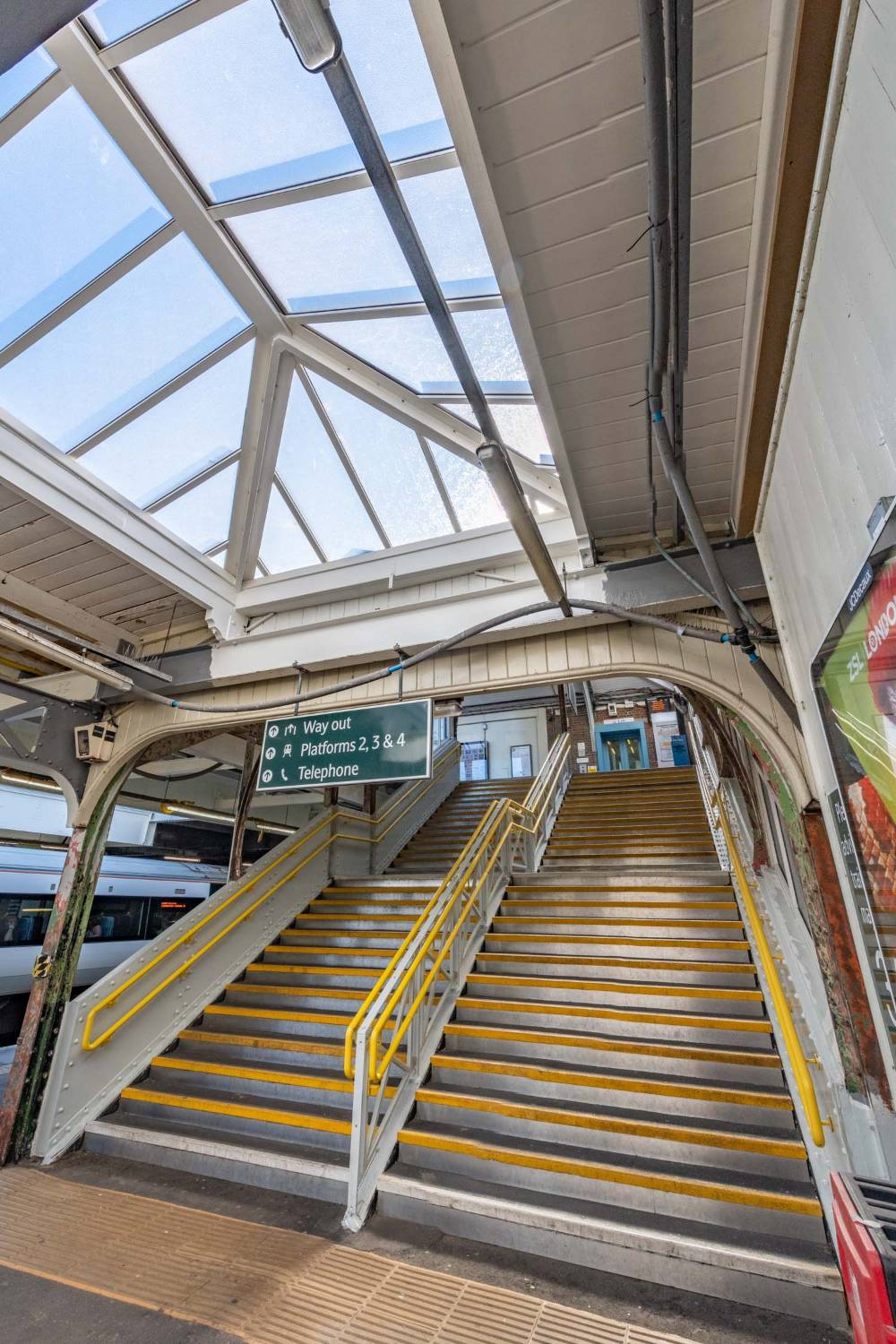

Case Study Sutton Station – Breathing new life into an old station
