Multi-Click
Verified by manufacturer 8 days ago
Vertical glazing system.
Application
- Sports halls.
- Warehouses/ factories.
- Plant rooms.

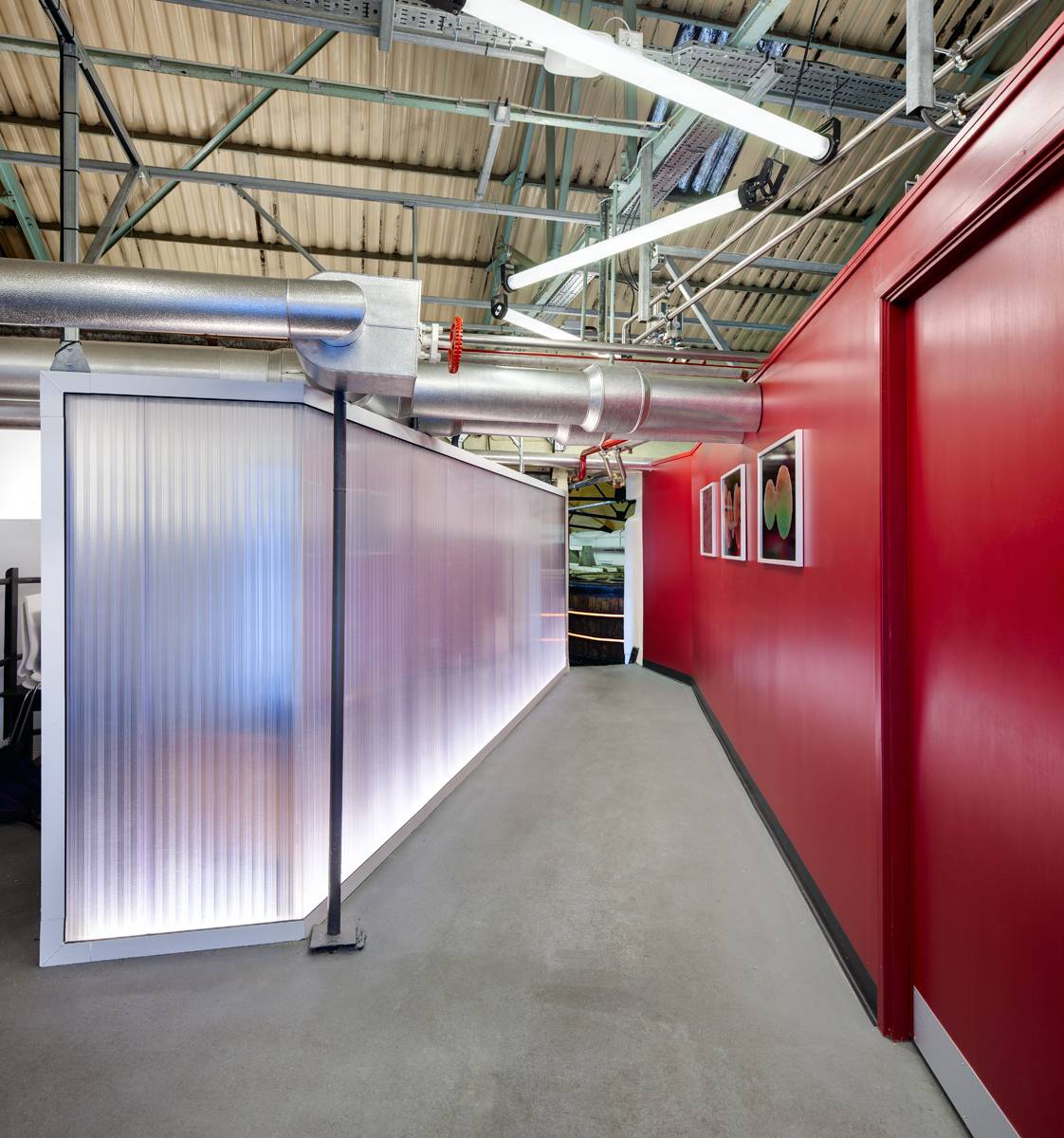

- Partitions.
- Rooflights/ northlights.
- Cladding.
Description

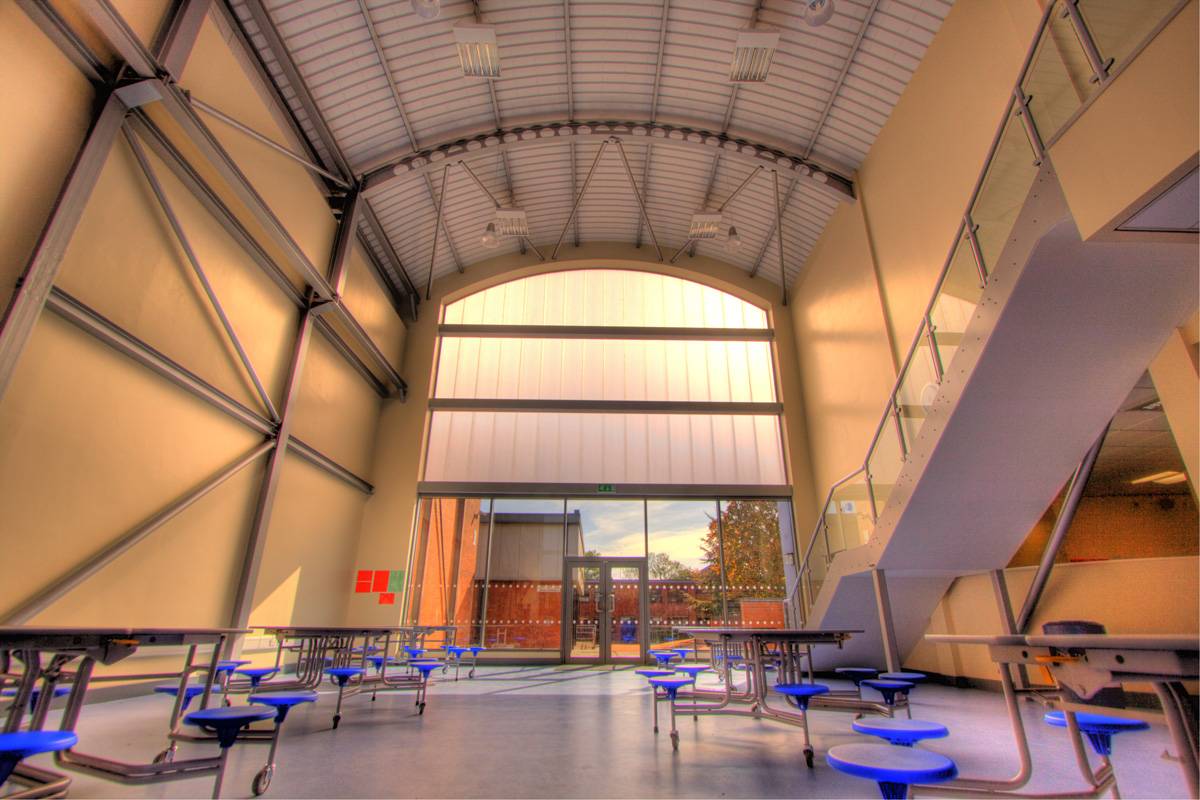

The Multi-Click vertical glazing system consists of 'X-structure' polycarbonate glazing panels which click together and are fitted within a thermally broken aluminium frame.
It requires no intermediate glazing bars, so provides an uninterrupted facade which results in higher light transmission and less shadows within a building.
Features and benefits:
- High impact strength.
- Excellent thermal insulation.
- Quick and easy to install.
- Maximum unsupported span: 2000 mm down the slope (assumed loadings; wind - 0.9 kN/m²).
General information
Finish | Powder-coated |
Material | Aluminium Polycarbonate |
Uniclass | |
CAWS | H10/10 Patent glazing H10/115 Patent glazing |
Specification data - Framed rooflights
Classification data | |
Product performance | |
Fire performance | |
Reaction to fire | Class B-s1,d0 to EN13501-1. |
Whole window U-value | 0.99 W/m² (BS EN 673). |
Frame | |
Material | Extruded aluminium bars to BS 1474. |
Finish | |
Coating | Polyester powder coating to BS 6496. |
Colour | Guidance for specification option: Any RAL or BS colour available, insert requirements. |
Glazing or infill | |
Type | 40 mm Multi-Click Polycarbonate. |
Colour | Clear. Opal. |
Coating | UV protection. |
Integral kerb | Aluminium. |
Accessories | None. Cill flashing. Head flashing. |
Fixings | Stainless steel self-tapping screws and bolts. |
Width | 500 mm. |
U-value | 0.99 W/m². |
Pitch | Vertical. |
UV protective layer | One-sided. |
Light transmission | 52%. Guidance for specification option: Clear. 44%. Guidance for specification option: Pearlescent. |
Solar heat gain coefficient | 0.42. Guidance for specification option: Clear. 0.28. Guidance for specification option: Pearlescent. |
Sustainability data
Country of material origin | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
