Multi-Link-Panel - ML16NF - Rooflight panel system
Verified by manufacturer 8 months ago
A lightweight, modular, interlocking roof glazing system, non-fragile to ACR(M)001:2019.
Application
Suitable for the following applications:
- Retail;
- Education;
- Industrial;
- Commercial;
- Health;
- Rail.
Description
Multi-Link-Panels are a light weight, modular, inter locking roof glazing system and are non-fragile to ACR(M)001:2019.
Features and benefits:
- Panels are glazed with 16 mm polycarbonate, light weight, impact and weather resistant, and easy to install.
- Maximum unsupported span: 3200 mm down the slope, 990 mm panel width (assumed loadings; wind - 0.9 kN/m²; snow - 0.5 kN/m²).
- Maximum unsupported overhang: 150 mm.
- Total energy transmission: Clear 70%; Opal 62%.
General information
Color | Clear |
Finish | Powder-coated |
Material | Polycarbonate Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H10/10 Patent glazing H10/115 Patent glazing L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Rectangular.Square. |
Size | Manufacturer guidanceBespoke sizes are available. |
Product performance | |
Fire performance | |
Reaction to fire | To BS EN 13501-1, B-s1, d0. |
Frame | |
Material | Extruded aluminium bars to BS 1474. |
Finish | |
Coating | Polyester powder coating to BS 6496. |
Colour | Black.Guidance for specification option: Insert requirement, consult Twinfix. White.Blue.Red.Yellow.Green.Grey. |
Glazing or infill | |
Type | 16 mm polycarbonate.Guidance for specification option: Bronze, Clear or Opal. |
Construction | Multiwall. |
Colour | Clear.Opal. |
Coating | UV protected. |
Operation | |
Type | Fixed. |
Accessories | None.Aluminium side trims.Eaves fillers.Head flashing.Mechanical end plates.Ridge flashing.PVC-U underclad tray. |
Width | 990 mm. |
FragilityRating | Panels tested in accordance with ACR[M]001:2019 and Classified as 'Class B non-fragile assembly'. |
Fixings | Stainless steel self-tapping screws and bolts. |
Pitch | 10°. |
UV protective layer | Both sides of sheet. |
Sound reduction index | 18 dB. |
Light transmission | 74%. Guidance for specification option: Clear. 62%. Guidance for specification option: Opal. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
Similar products from Twinfix Limited
Exolon® 6 mm Solid Clear Multi-link Panel Non-fragile (ACR(M)001:2019, Class B) - Interlocking Roof Glazing System
Exolon® 6 mm Solid Obscure Multi-link Panel Non-fragile (ACR(M)001:2019, Class B) - Rooflight Panel System

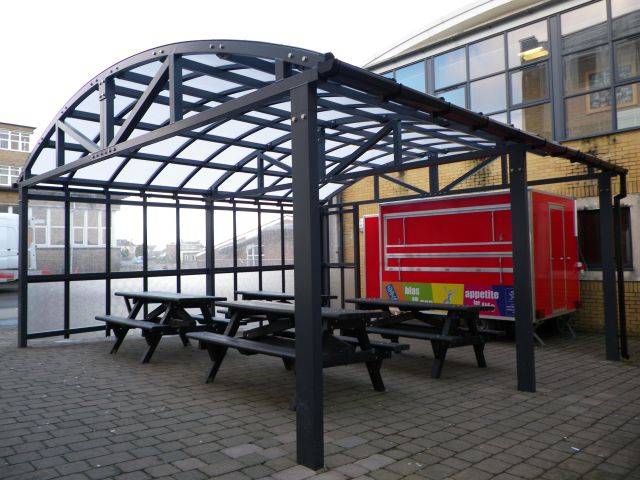

Exolon® multi UV 10 mm Curved Non-Fragile (ACR(M)001:2019, Class B)

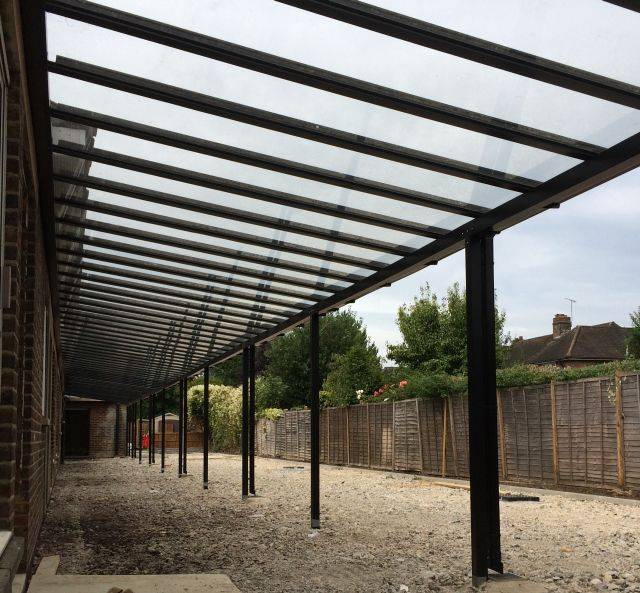

Laminated Glass 7.5 mm Multi-Link-Panel Non-Fragile (ACR(M)001:2019, Class B)

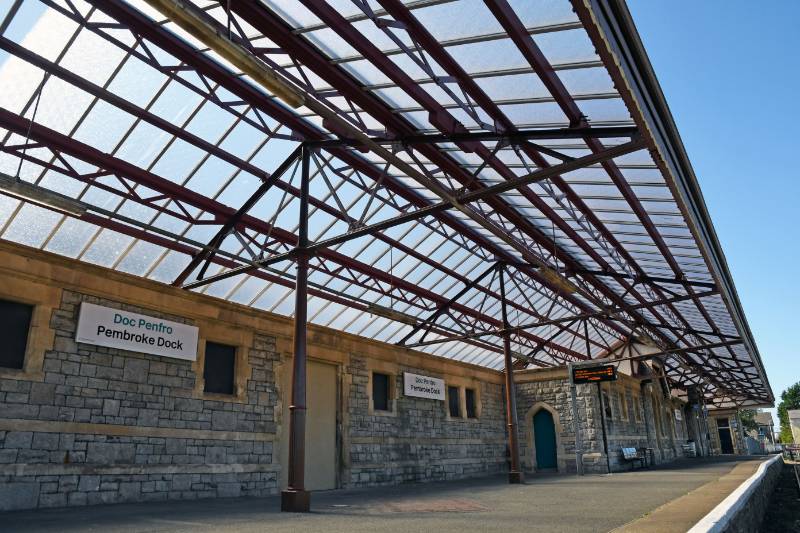

Makrolon 6 mm Obscure Georgian Wired Effect Multi-link Panel Non-fragile (ACR(M)001:2019, Class B) - Rooflight Panel System

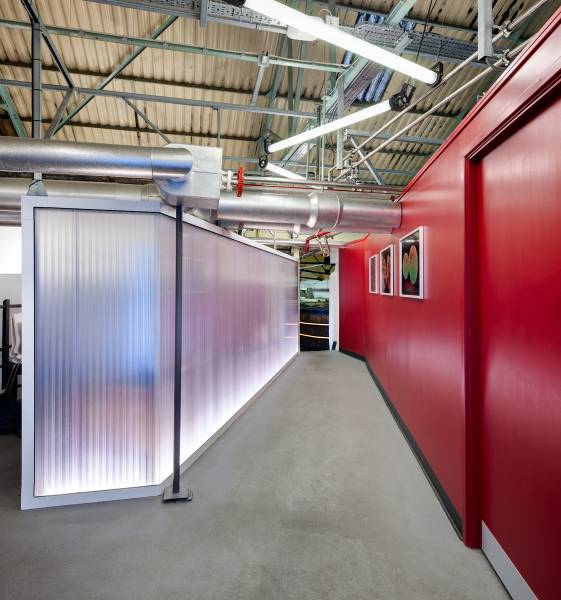

Multi-Click
